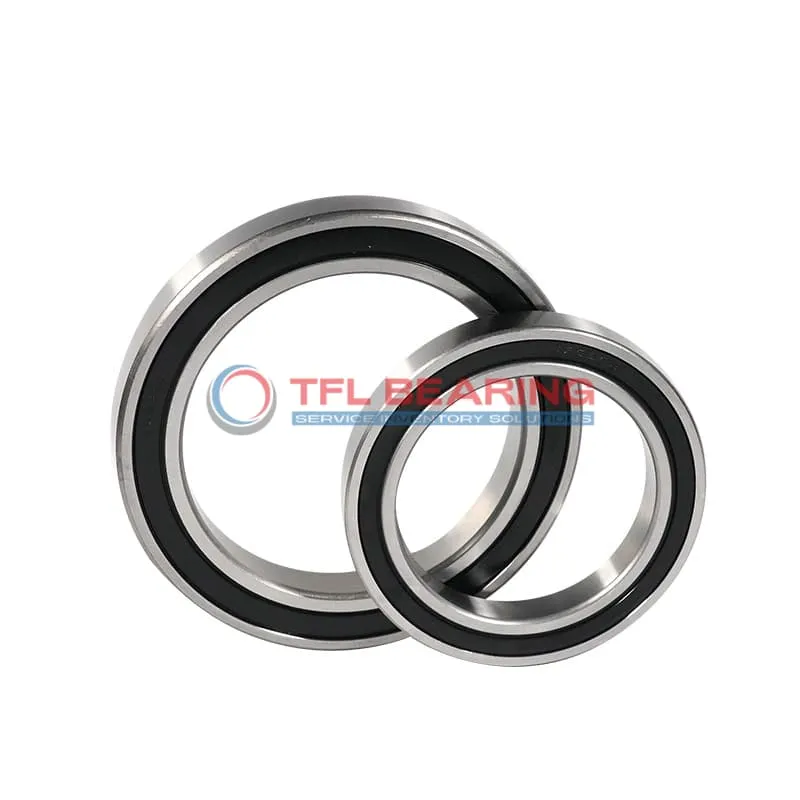

Constant Section (CS) Bearings JG075XP0

Constant Section (CS) Bearings JG075XP0

The JG075XP0 is a sealed, thin-section ball bearing measuring 7.5″×9.5″×1″, made from durable chrome steel with a brass cage. It handles radial loads up to 10410 lbf and thrust loads up to 15820 lbf, suitable for moderate-speed applications.

Its sealed design keeps lubrication in and contaminants out, making it low-maintenance. The four-point contact design provides stability under combined loads, with a static moment capacity of 58140 lbf.

This bearing is interchangeable with KAYDON models, offering a reliable alternative. Ideal for robotics, medical equipment, or aerospace applications where space is limited but performance is key.

Weighing 6.1 lbs, it operates smoothly in temperatures from -30°C to 110°C. Compliant with RoHS standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG075XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 7.5"
  • Outer Dia 9.5"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 8.054"
  • Internal Diameter On Outer Ring (Small Side Face) 9.102"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 10410 lbf
  • Static Radial Load 13680 lbf
  • Static Thrust Load 34200 lbf
  • Static Moment 58140 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 33 lbf
  • Dynamic Thrust Load 15820 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 6.1 lbs
  • price（$） 276.75
Constant Section (CS) Bearings JG075XP0 dimension drawing
Download DWG Download PDF

Features

Why Choose JG075XP0 Bearing for Precision Tasks?

JG075XP0 Bearing features a four-point contact design, ensuring precise load distribution and smooth operation.
Its chrome steel rings and balls enhance durability, while the brass cage maintains alignment under stress.
With a dynamic radial load capacity of 10,410 lbf, it handles demanding applications with ease.
The sealed construction protects against contaminants, extending its service life in harsh environments.

Application

Where Is JG075XP0 Bearing Used?
JG075XP0 Bearing is commonly found in robotics, where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring smooth operation in automated systems.

In industrial machinery, JG075XP0 Bearing handles radial and moment loads efficiently, making it suitable for turntables and indexing tables. Its brass cage adds durability, even in high-speed applications.

For aerospace applications, JG075XP0 Bearing’s precise ABEC-1 tolerance ensures reliable performance in control systems. The chrome steel rings and balls provide long-lasting wear resistance.

In medical imaging devices, JG075XP0 Bearing offers quiet and smooth rotation, essential for accurate diagnostics. The lubricated design reduces maintenance needs, ideal for sensitive environments.
