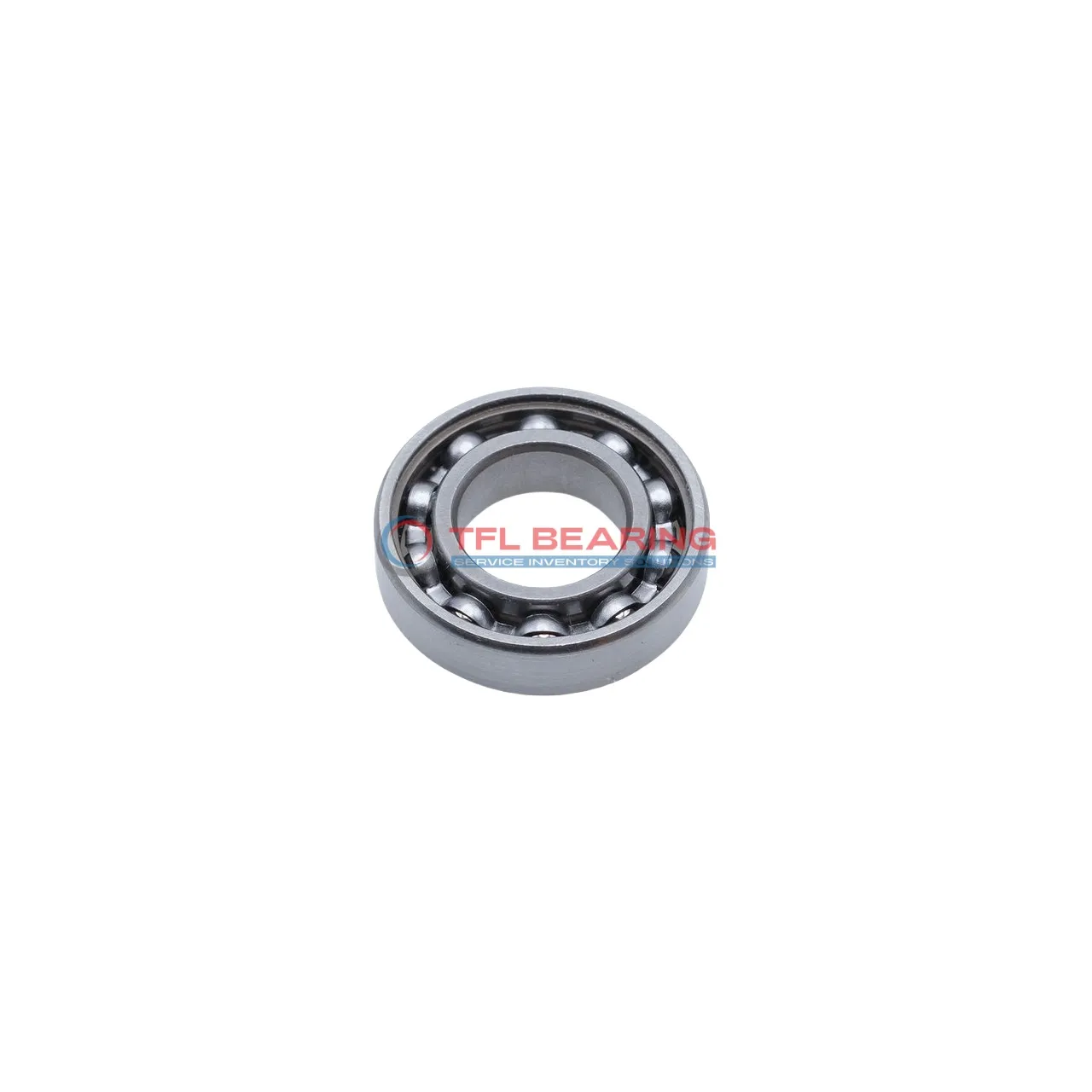

Single Row Deep Groove Ball Bearings 61910/W64

Single Row Deep Groove Ball Bearings 61910/W64

The 61910/W64 is a single-row deep groove ball bearing with a 50mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3282 lbf and spins smoothly at speeds up to 12,000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Suitable for electric motors or small machinery where space is limited.

Weighing just 0.14kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61910/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3282 lbf
  • Static Radial Load 2653 lbf
  • Max Speed 12000 rpm
  • Weight 0.14 kg
  • price（$） 41.877
Single Row Deep Groove Ball Bearings 61910/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 61910/W64 Bearing for Precision Tasks?

61910/W64 Bearing features a single-row deep groove design, ideal for handling radial loads with precision.
Its chrome steel construction ensures durability and resistance to wear in various applications.

The solid oil lubrication reduces friction, allowing smooth operation even at high speeds up to 12,000 rpm.
With a dynamic radial load capacity of 3282 lbf, it performs reliably under demanding conditions.

61910/W64 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its open seal design simplifies maintenance while maintaining performance.

Application

Common Applications of 61910/W64 Bearing
This bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures smooth operation. The solid oil lubrication reduces maintenance needs, making it ideal for continuous-use environments.

In automotive applications, 61910/W64 Bearing fits well in components like alternators and water pumps, providing reliable performance under varying speeds. Its chrome steel construction offers durability in both high and low-temperature conditions.

For automation systems, 61910/W64 Bearing supports precise movements in robotic arms and conveyor belts. The open design allows for easy inspection and cleaning, which is handy in dusty or humid settings.

Household appliances like washing machines also benefit from 61910/W64 Bearing’s quiet operation and long service life. The metric sizing ensures compatibility with a range of European and Asian models.
