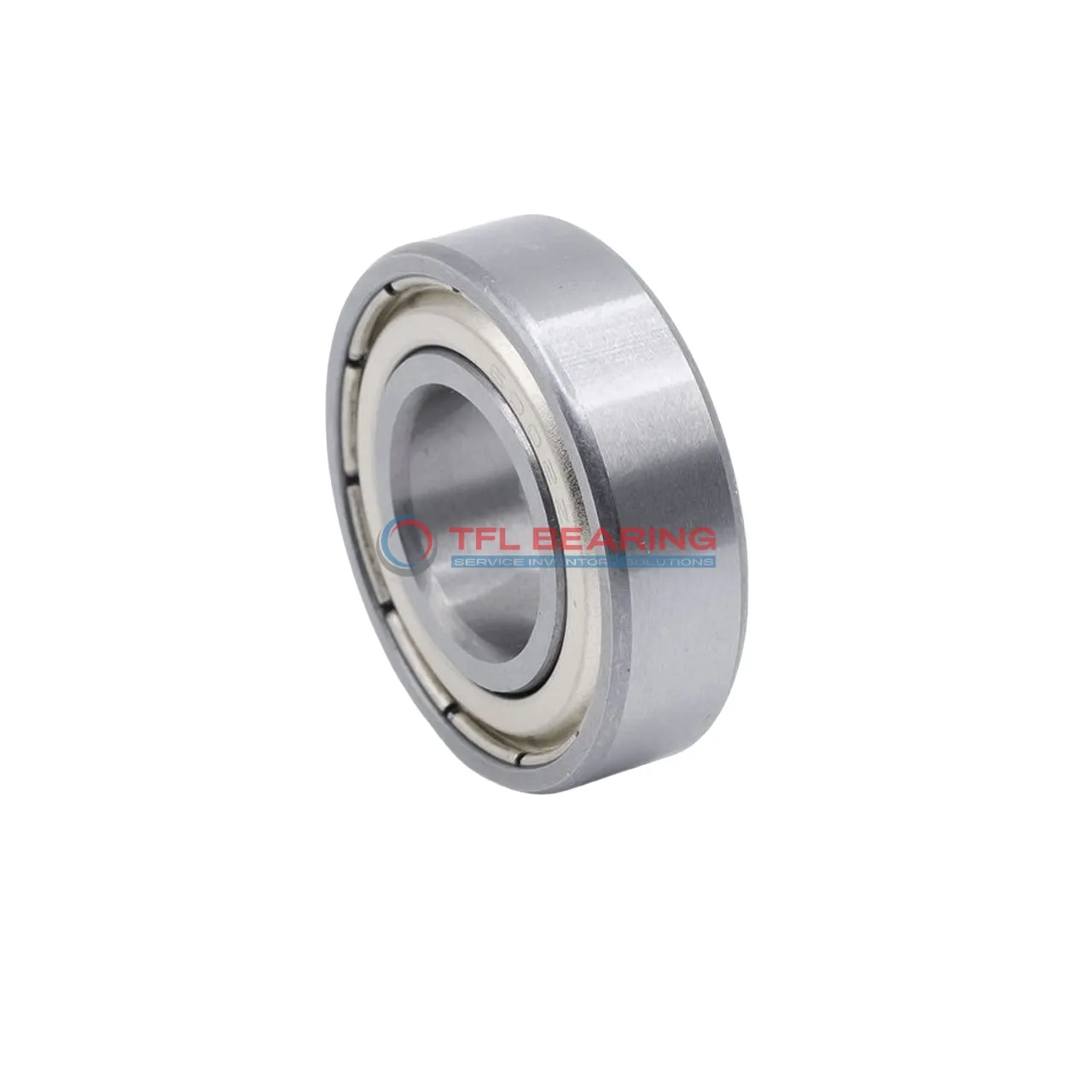

Single Row Deep Groove Ball Bearings 6306-2Z/C4MTF8

Single Row Deep Groove Ball Bearings 6306-2Z/C4MTF8

The 6306-2Z/C4MTF8 is a single-row deep groove ball bearing measuring 30mm by 72mm by 19mm, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 6002 lbf and spins smoothly at speeds up to 9600 RPM.

Its shielded design keeps out dust and debris, while the C4 radial clearance ensures reliable operation under varying temperatures. The bearing works well in environments ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where consistent radial load support is needed.

Weighing just 346g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2Z/C4MTF8
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g
Single Row Deep Groove Ball Bearings 6306-2Z/C4MTF8 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6306-2Z/C4MTF8 Bearing

6306-2Z/C4MTF8 Bearing is designed for radial loads, with a dynamic radial load capacity of 6002 lbf.

Its shielded design protects against contaminants, ensuring smooth operation in various environments.

The chrome steel construction offers durability and resistance to wear, extending the bearing’s service life.

With a maximum speed of 9,600 rpm, it delivers reliable performance for high-speed applications.

Application

Common Applications of 6306-2Z/C4MTF8 Bearing
The 6306-2Z/C4MTF8 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its shielded design helps keep contaminants out. Its chrome steel construction ensures durability in demanding environments.

How Does 6306-2Z/C4MTF8 Bearing Improve Performance?
In automotive applications, 6306-2Z/C4MTF8 Bearing enhances efficiency in components like alternators and water pumps. The C4 radial clearance allows for better thermal expansion handling, making it reliable under varying temperatures.

Ideal for Precision: 6306-2Z/C4MTF8 Bearing
For medical devices like centrifuges, 6306-2Z/C4MTF8 Bearing offers smooth operation due to its deep groove design. The shielded seals also help maintain cleanliness in sensitive environments.

Automotive vs Industrial: Applications of 6306-2Z/C4MTF8 Bearing
In automotive systems, 6306-2Z/C4MTF8 Bearing supports high-speed rotations in gearboxes. Meanwhile, in industrial settings, it excels in conveyor systems where radial load capacity is key.

Where Is 6306-2Z/C4MTF8 Bearing Used?
You’ll often find 6306-2Z/C4MTF8 Bearing in household appliances like washing machines, where its durability and smooth operation are valued. The metric sizing ensures easy replacement in most European models.
