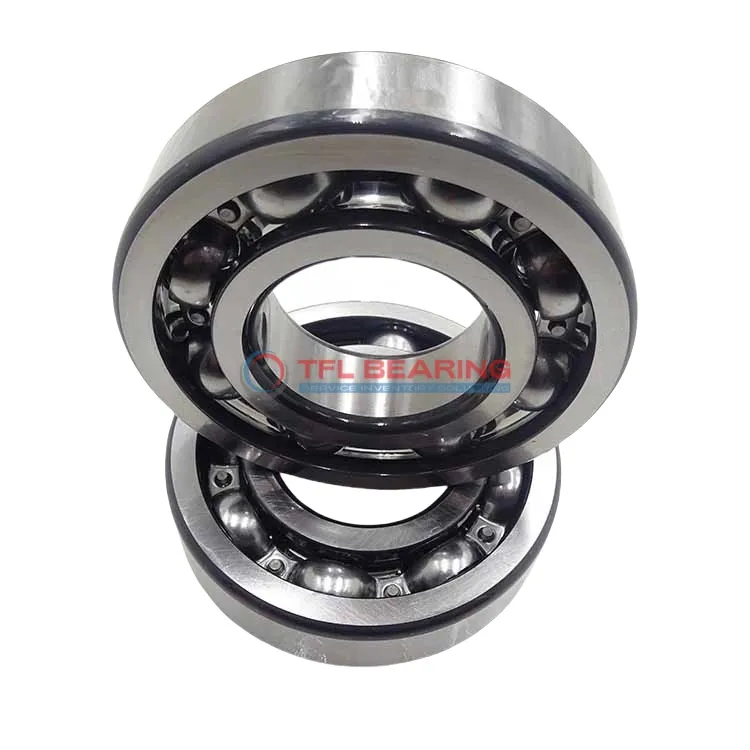

Single Row Deep Groove Ball Bearings 61852/C2VQ567

The 61852/C2VQ567 is a single-row deep groove ball bearing with a 260mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24954 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or conveyor systems where radial loads are prevalent.

Weighing 4.17kg, it balances strength and size effectively. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 61852/C2VQ567
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C2
Bore Dia 260 mm
Bore Dia Tolerance -0.025mm to 0
Outer Dia 320 mm
Outer Dia Tolerance -0.028mm to 0
Width 28 mm
Width Tolerance -0.35mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 24954 lbf
Static Radial Load 36644 lbf
Max Speed 2400 rpm
Weight 4.17 kg

Single Row Deep Groove Ball Bearings 61852/C2VQ567 dimension drawing

Download DWG Download PDF

Features

Performance Features of 61852/C2VQ567 Bearing

61852/C2VQ567 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 24954 lbf, ensuring reliable performance in various applications.

The single row deep groove design of 61852/C2VQ567 Bearing provides smooth operation and reduces friction.
With a maximum speed of 2,400 rpm, it balances durability and efficiency for industrial use.

61852/C2VQ567 Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its open seal design allows for easy maintenance and inspection when required.

The C2 radial clearance in 61852/C2VQ567 Bearing ensures optimal performance under varying conditions.
Its chrome steel cage keeps the balls aligned, extending the bearing’s service life.

Application

Industrial Uses of 61852/C2VQ567 Bearing
This bearing is commonly used in large industrial machinery, such as heavy-duty pumps and gearboxes, where its radial load capacity ensures reliable performance.
The open design allows for easy lubrication, making it suitable for environments with high dust or debris.

How Does 61852/C2VQ567 Bearing Improve Performance?
In conveyor systems, this bearing reduces friction, helping to maintain smooth operation even under heavy loads.
Its chrome steel construction provides durability, making it a dependable choice for long-term use.

Built for Heavy-Duty Use: 61852/C2VQ567 Bearing
You’ll often find this bearing in construction equipment, where its ability to handle radial loads is essential.
The C2 clearance ensures it performs well in applications with slight misalignments or thermal expansion.

Automotive vs Aerospace: Applications of 61852/C2VQ567 Bearing
In automotive applications, this bearing supports components like wheel hubs, offering stability under radial forces.
For aerospace, its precision and durability make it suitable for auxiliary systems requiring consistent performance.

Perfect Fit for Automation: 61852/C2VQ567 Bearing
This bearing works well in robotic arms, providing smooth rotation for precise movements.
Its metric sizing ensures compatibility with a wide range of automated machinery across different industries.
