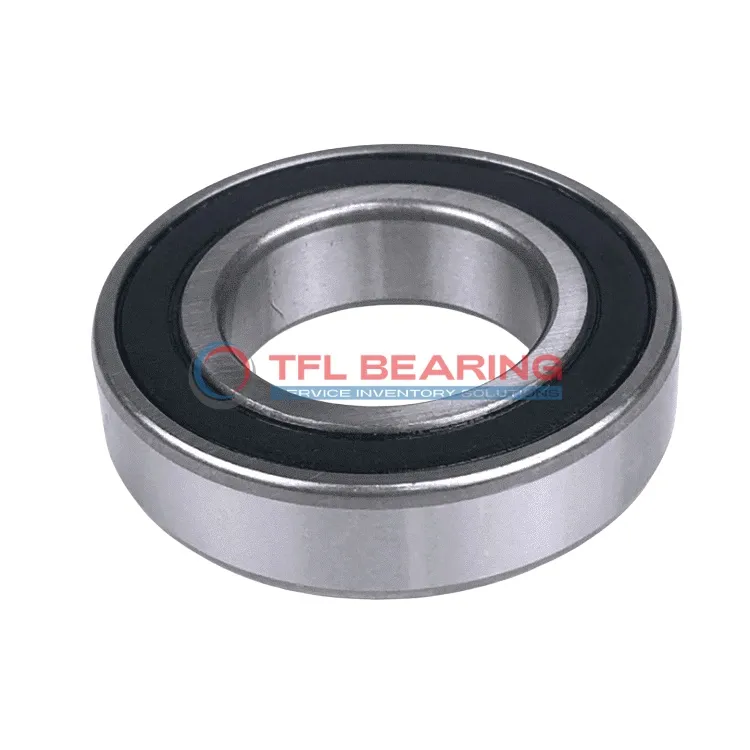

Single Row Deep Groove Ball Bearings 6004-2RSH/VL256W64F

Single Row Deep Groove Ball Bearings 6004-2RSH/VL256W64F

The 6004-2RSH/VL256W64F is a compact single-row deep groove ball bearing, measuring 20mm by 42mm by 12mm. Made from chrome steel, it offers reliable performance for radial loads up to 2113 lbf.

Its sealed design keeps out dust and dirt, while the solid oil lubrication ensures smooth operation. The bearing can handle speeds up to 17,000 RPM and works in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s ideal for use in electric motors, pumps, or small machinery where durability and low maintenance are key.

Weighing just 69g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable option for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6004-2RSH/VL256W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2113 lbf
  • Static Radial Load 1135 lbf
  • Max Speed 17000 rpm
  • Weight 69 g
Single Row Deep Groove Ball Bearings 6004-2RSH/VL256W64F dimension drawing
Download DWG Download PDF

Features

How Does 6004-2RSH/VL256W64F Bearing Reduce Friction?

6004-2RSH/VL256W64F Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.

The chrome steel construction enhances durability, making it suitable for high-speed applications up to 17,000 rpm.

Its deep groove design allows for efficient radial load handling, with a dynamic radial load capacity of 2113 lbf.

The ABEC 1 tolerance ensures consistent performance, while the temperature range of -30°C to 120°C adds versatility.

Application

Industrial Uses of 6004-2RSH/VL256W64F Bearing
This bearing is commonly used in conveyor systems and small electric motors, where its sealed design helps keep out dust and debris. The solid oil lubrication ensures smooth operation even in continuous-use environments.

Where Is 6004-2RSH/VL256W64F Bearing Used?
You’ll often find it in household appliances like washing machines and fans, thanks to its reliable radial load handling. The chrome steel construction makes it durable for everyday use.

Built for Heavy-Duty Use: 6004-2RSH/VL256W64F Bearing
It’s a great fit for automotive applications such as alternators and water pumps, where consistent performance matters. The ABEC 1 tolerance ensures it meets general precision needs without overcomplicating things.

Light-Duty vs Heavy-Duty: Best Uses for 6004-2RSH/VL256W64F Bearing
In light-duty scenarios, it works well in office equipment like printers, while heavier tasks include small industrial gearboxes. The temperature range of -30° to 120°C adds versatility.
