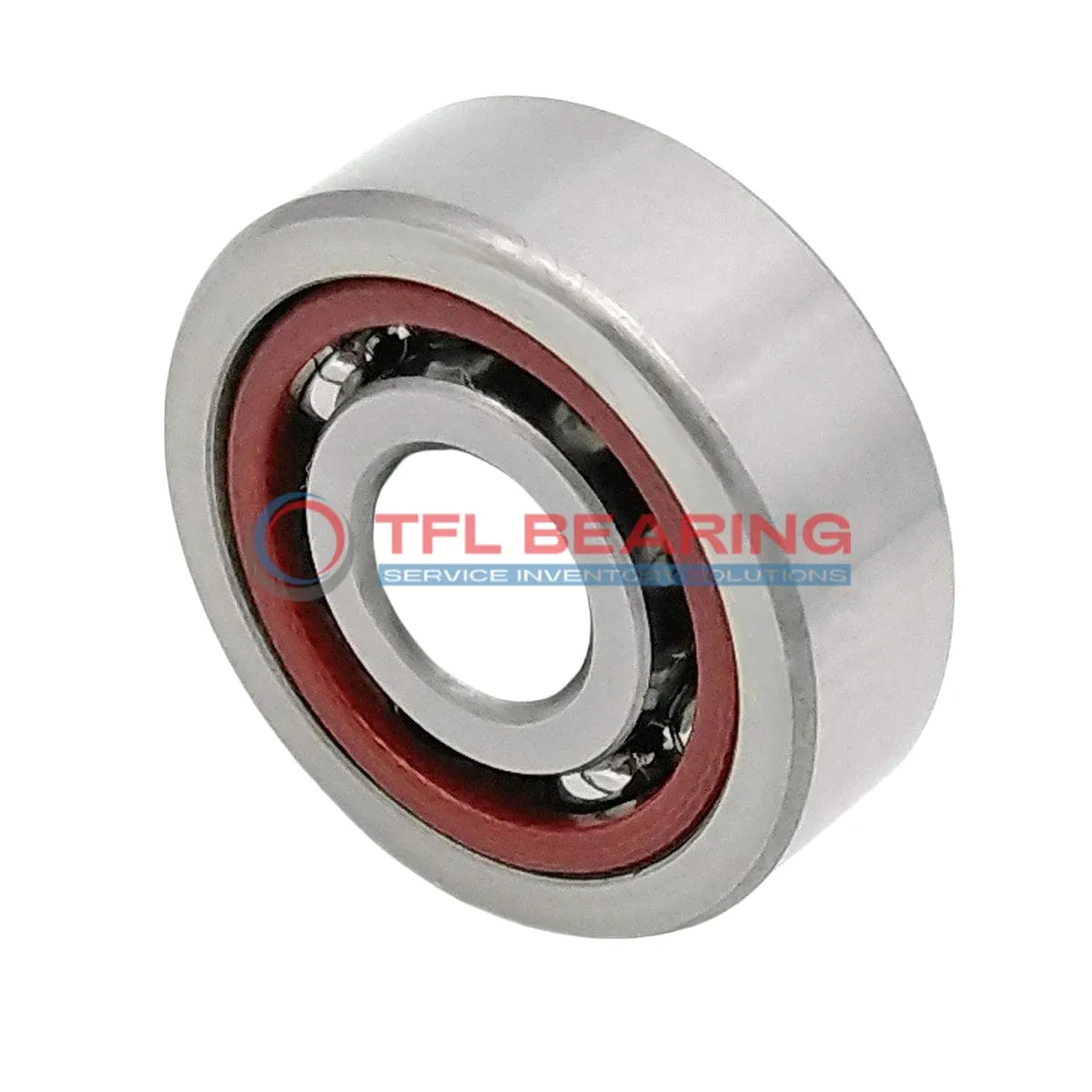

Super Precision Angular Contact Ball Bearings 7206 ACD/P4ATGB

Super Precision Angular Contact Ball Bearings 7206 ACD/P4ATGB

The 7206 ACD/P4ATGB is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 11408 lbf and spins smoothly at speeds up to 100,500 RPM.

Its 25° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face. The phenolic cage ensures quiet operation and long service life.

This bearing comes pre-lubricated and works in temperatures from -30°C to 110°C. Ideal for high-precision applications like machine tool spindles or robotics.

Weighing 0.59kg, it’s part of a matched set of three bearings for balanced performance. Compliant with P4A tolerance class for exceptional accuracy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7206 ACD/P4ATGB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 48 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 13
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 11408 lbf
  • Static Radial Load 10238 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 100500 rpm
  • Weight 0.59 kg
Super Precision Angular Contact Ball Bearings 7206 ACD/P4ATGB dimension drawing
Download DWG Download PDF

Features

Performance Features of 7206 ACD/P4ATGB Bearing

7206 ACD/P4ATGB Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and smooth operation under high radial loads.

The phenolic cage in 7206 ACD/P4ATGB Bearing reduces friction and noise, making it suitable for precision tasks.
With a maximum speed of 100,500 rpm, it delivers reliable performance in high-speed environments.

7206 ACD/P4ATGB Bearing’s universal matching allows flexible arrangement options like back-to-back or face-to-face mounting.
Its light preload (Class B) ensures smooth rotation while maintaining precision.

The P4A tolerance class of 7206 ACD/P4ATGB Bearing guarantees exceptional accuracy for demanding applications.
Its dynamic radial load capacity of 11,408 lbf ensures long-lasting performance.

7206 ACD/P4ATGB Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
The lubricated design reduces maintenance needs while ensuring consistent performance.

Application

Industrial Uses of 7206 ACD/P4ATGB Bearing
7206 ACD/P4ATGB Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle performance. The universal matching feature allows for flexible arrangements, making it suitable for complex setups.

In automotive applications, 7206 ACD/P4ATGB Bearing supports components like electric motors and transmissions, handling both radial and axial loads efficiently. Its light preload and phenolic cage contribute to smooth operation and reduced friction.

For automation systems, 7206 ACD/P4ATGB Bearing is ideal for robotic arms and CNC machines, offering reliable performance under demanding conditions. The P4A tolerance class ensures consistent accuracy, even at high speeds.

Medical imaging devices benefit from 7206 ACD/P4ATGB Bearing’s low noise and vibration, crucial for sensitive equipment. The chrome steel construction provides durability, while the open design allows for easy lubrication.

In consumer electronics, 7206 ACD/P4ATGB Bearing can be found in high-performance fans and printers, where its precision enhances device longevity. The temperature range ensures reliability in various operating environments.
