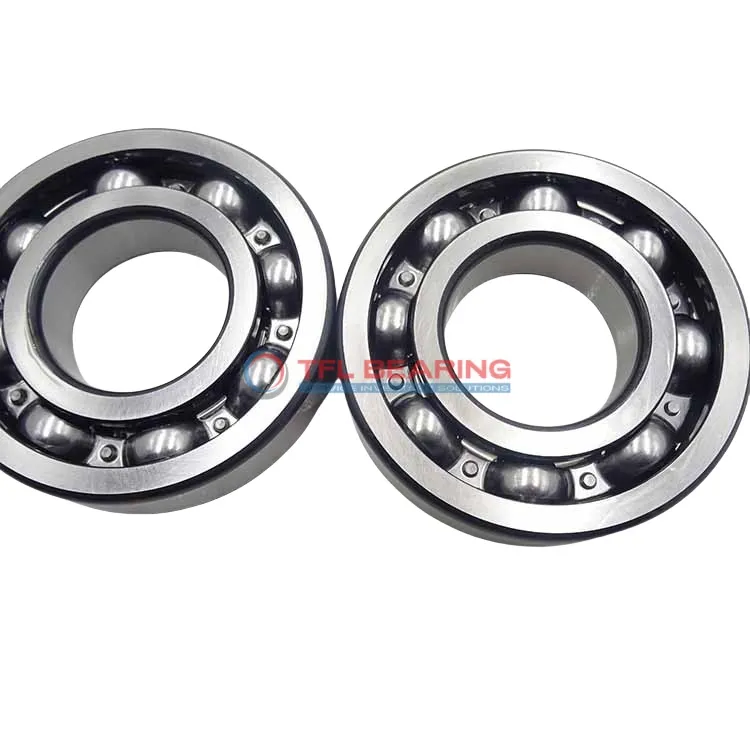

Single Row Deep Groove Ball Bearings 61836

Single Row Deep Groove Ball Bearings 61836

The 61836 is a single-row deep groove ball bearing with a 180mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14028 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for applications like electric motors or pumps where radial loads are predominant.

Weighing 1.73kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61836
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 22 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 14028 lbf
  • Static Radial Load 18322 lbf
  • Max Speed 3400 rpm
  • Weight 1.73 kg
  • price（$） 278.748
Single Row Deep Groove Ball Bearings 61836 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61836 Bearing

61836 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 14028 lbf, making it suitable for demanding applications.

The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 3,400 rpm, it balances durability and efficiency.

61836 Bearing operates in temperatures from -30° to 120°C, adapting to various environments.
Its open design simplifies maintenance, reducing operational costs over time.

Application

Industrial Uses of 61836 Bearing
61836 Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 61836 Bearing fits well in wheel hubs and transmission systems, thanks to its precise P6 tolerance class. The chrome steel construction provides durability under constant radial loads.

For automation systems, 61836 Bearing supports robotic arms and conveyor belts, offering smooth operation. Its stainless steel cage adds resistance to wear, making it suitable for high-speed environments.

Where Is 61836 Bearing Used?
You’ll often find 61836 Bearing in wind turbines, where its large bore size handles significant radial loads. The metric dimensions make it compatible with European-designed equipment.

In household appliances like washing machines, 61836 Bearing ensures quiet and efficient operation. Its temperature range of -30° to 120°C makes it versatile for various climates.
