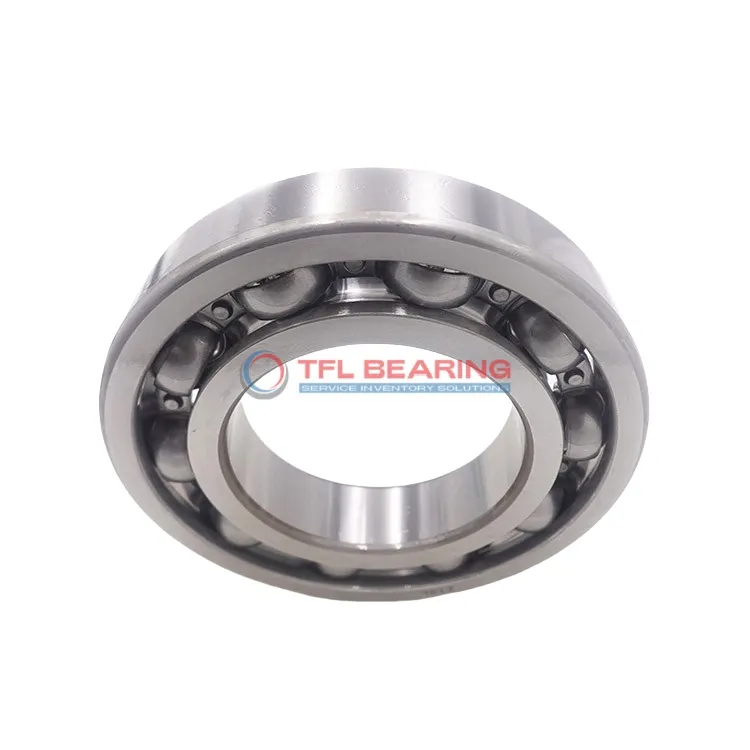

Single Row Deep Groove Ball Bearings 61828

Single Row Deep Groove Ball Bearings 61828

The 61828 is a single-row deep groove ball bearing with a 140mm bore and 175mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8768 lbf and runs smoothly at speeds up to 4500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing operates reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.82kg, it balances strength and lightness for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61828
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 175 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 18 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 8768 lbf
  • Static Radial Load 10454 lbf
  • Max Speed 4500 rpm
  • Weight 0.82 kg
  • price（$） 159.129
Single Row Deep Groove Ball Bearings 61828 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61828 Bearing

61828 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8768 lbf, making it suitable for demanding applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 4,500 rpm, it delivers reliable performance in various conditions.

61828 Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication and maintenance, enhancing longevity.

Application

Industrial Uses of 61828 Bearing
The 61828 Bearing is commonly used in industrial machinery like pumps and electric motors, where its single-row design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 61828 Bearing Used?
You’ll often find 61828 Bearing in automotive applications such as alternators and fans, thanks to its reliable performance under high speeds. The open seal design allows for easy lubrication, extending its service life.

Perfect Fit for Automation: 61828 Bearing
In automated systems, 61828 Bearing works well in conveyor belts and robotic arms, providing smooth motion with minimal maintenance. The P6 tolerance class ensures precise operation in these critical setups.

Light-Duty vs Heavy-Duty: Best Uses for 61828 Bearing
For light-duty tasks like office printers, 61828 Bearing offers quiet operation and longevity. In heavier applications like industrial gearboxes, it maintains stability even under substantial radial loads.
