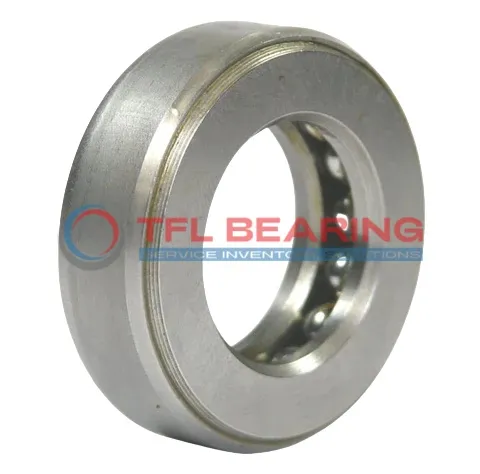

Thrust Ball Bearing With Outside Band D33

Thrust Ball Bearing With Outside Band D33

The D33 is a thrust ball bearing with a 2.5-inch bore and 3.969-inch outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 11500 lbf and operates smoothly at speeds up to 1800 RPM.

Its robust design includes an outside band for added stability, making it suitable for heavy-duty applications. The bearing requires regular lubrication to maintain optimal performance.

With a temperature range of -30°C to 110°C, it works well in various environments. Compliant with RoHS and REACH standards, it’s a safe and reliable choice.

Ideal for machinery like pumps or compressors where high thrust loads are common. Weighing 1.28 lbs, it’s sturdy yet manageable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D33
  • Brand TFL
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 2.531"
  • Outer Dia 3.969"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.813"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 11500 lbf
  • Static Thrust Load 34000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1800 rpm
  • Weight 1.28 lbs

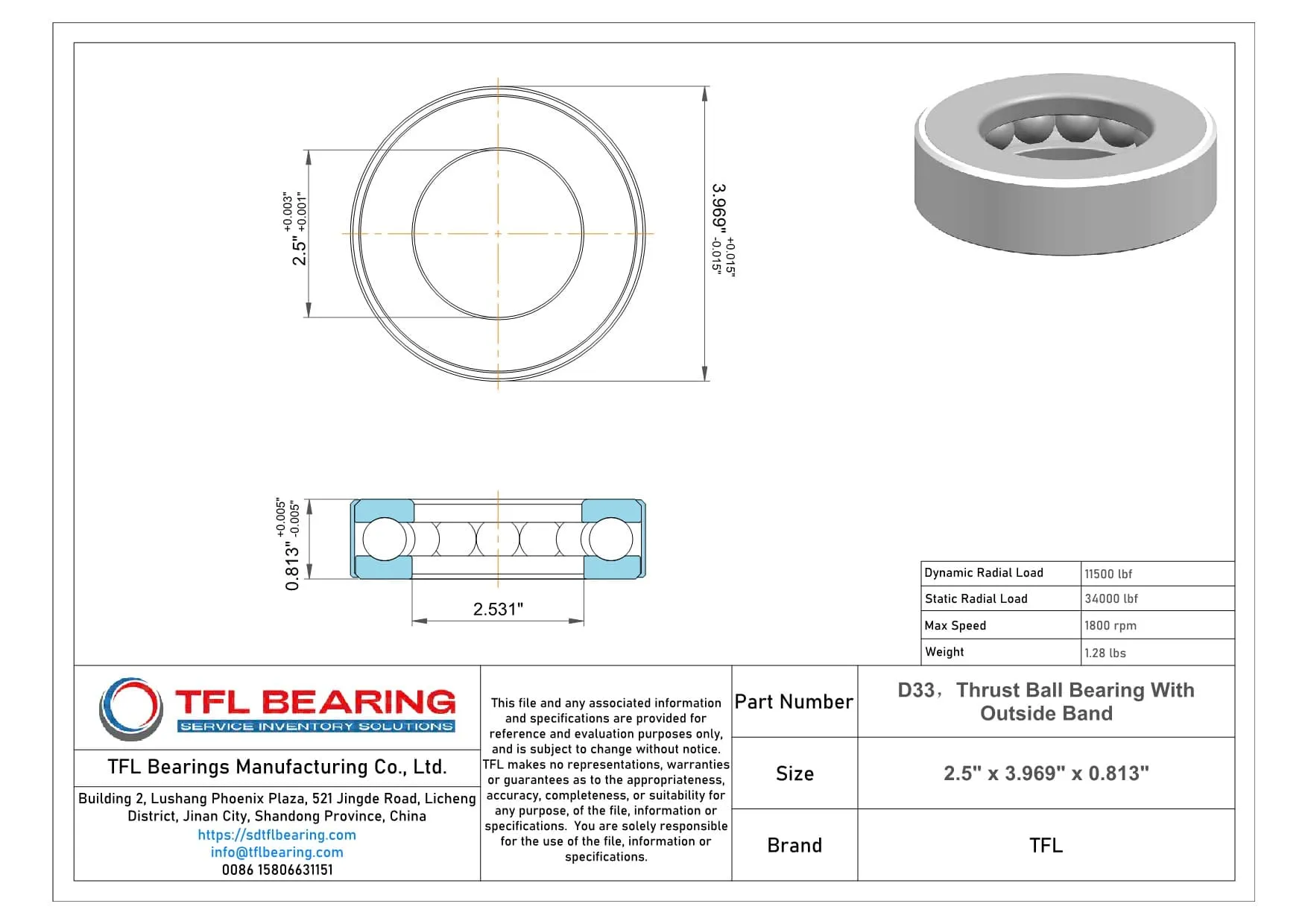

Thrust Ball Bearing With Outside Band D33 dimension drawing
Download DWG Download PDF

Features

Why Choose D33 Bearing for Precision Tasks?

D33 Bearing is crafted from 52100 chrome steel, offering durability and resistance to wear in thrust applications.
Its dynamic thrust load capacity of 11,500 lbf ensures reliable performance under pressure.

The precise bore diameter of 2.5″ with tight tolerances guarantees accurate fitment in machinery.
D33 Bearing operates smoothly within a temperature range of -30° to 110°C, suitable for various environments.

With a maximum speed of 1,800 rpm, it balances efficiency and longevity.
Regular lubrication enhances its performance, making it a practical choice for demanding tasks.

Application

Industrial Uses of D33 Bearing
D33 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its inch sizing fits standard industrial equipment. The chrome steel construction ensures it handles high thrust loads reliably.

What Makes D33 Bearing a Preferred Choice?
In automotive applications, D33 Bearing works well in clutch assemblies and steering systems, thanks to its precise tolerances. Its durability makes it suitable for both light and heavy vehicles.

Built for Heavy-Duty Use: D33 Bearing
For construction equipment, D33 Bearing excels in cranes and excavators, where its static thrust load capacity is crucial. The wide temperature range allows it to perform in various climates.

Medical vs Industrial: Where D33 Bearing Excels
While D33 Bearing isn’t typically used in medical devices, it’s ideal for industrial presses and lathes. Its robust design ensures long service life even in demanding conditions.

Perfect Fit for Automation: D33 Bearing
In automated systems, D33 Bearing supports linear actuators and robotic arms, providing smooth motion under load. The open design simplifies lubrication and maintenance.
