Single Row Deep Groove Ball Bearings 6072 M

Single Row Deep Groove Ball Bearings 6072 M

The 6072 M is a single-row deep groove ball bearing with a 360mm bore and 540mm outer diameter, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 99366 lbf and operates smoothly at speeds up to 1900 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a P6 tolerance class, it offers precise operation for demanding applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for heavy-duty machinery or industrial equipment where high radial loads are common. Weighing 64.5kg, it’s built to withstand rigorous use while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6072 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 82 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 99366 lbf
  • Static Radial Load 156242 lbf
  • Max Speed 1900 rpm
  • Weight 64500 g

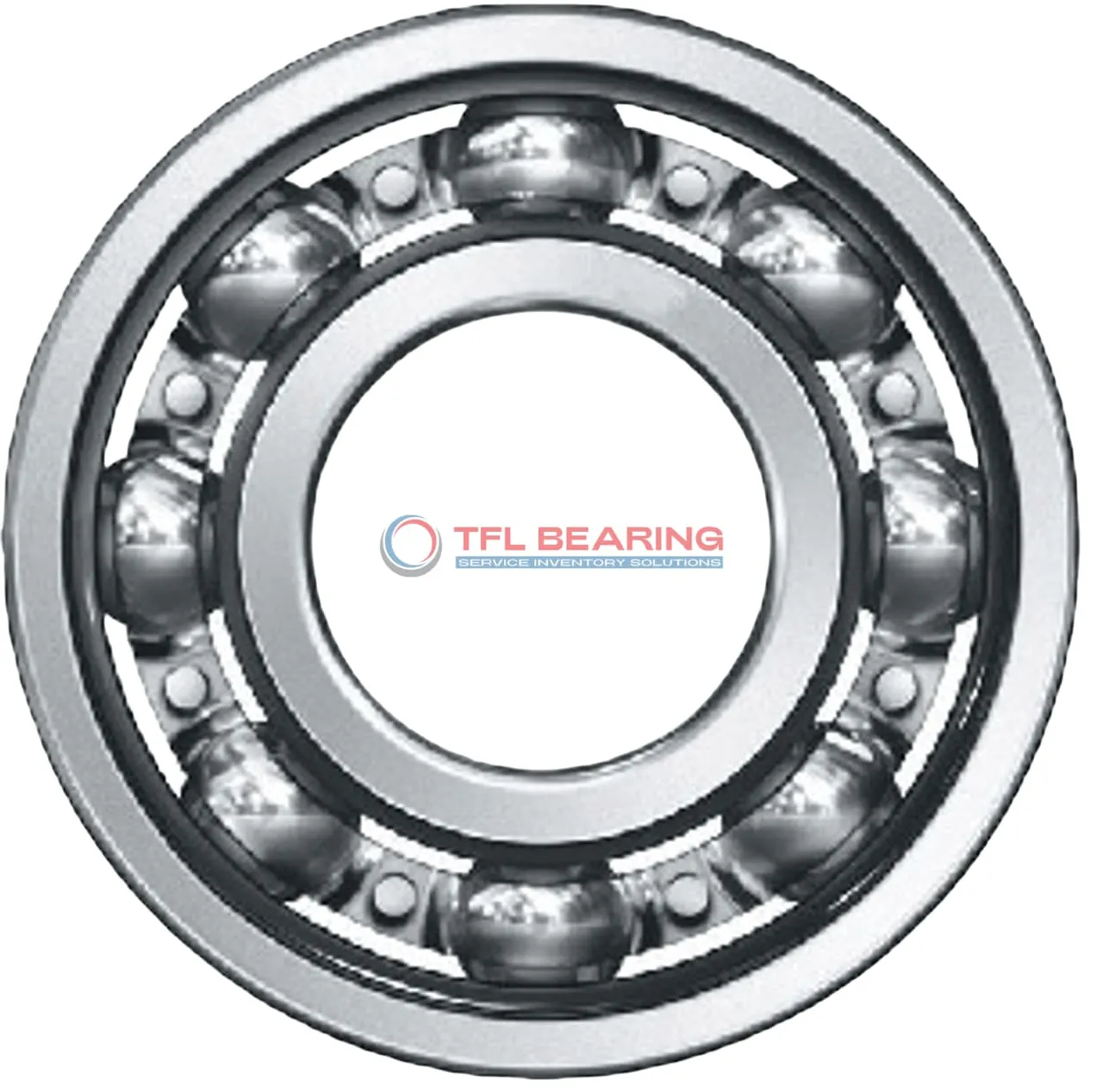

Single Row Deep Groove Ball Bearings 6072 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6072 M Bearing

6072 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 99366 lbf.

Its stainless steel cage ensures smooth operation and reduces wear, even in high-speed applications.

The single row deep groove design enhances stability, making it suitable for various industrial uses.

With a temperature range of -30° to 120°C, 6072 M Bearing performs reliably in diverse conditions.

Application

Industrial Uses of 6072 M Bearing
The 6072 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and gearboxes, where its robust design handles significant radial loads. Its open seal type allows for easy lubrication, making maintenance straightforward in demanding environments.

What Makes 6072 M Bearing a Preferred Choice?
With its chrome steel construction, the 6072 M Bearing offers durability and reliability in applications like conveyor systems and large fans. The P6 tolerance class ensures precise performance, which is essential for smooth operations in industrial settings.

Built for Heavy-Duty Use: 6072 M Bearing
The 6072 M Bearing excels in applications requiring high static and dynamic radial loads, such as mining equipment and construction machinery. Its stainless steel cage enhances longevity, even under continuous use.

Automotive vs Aerospace: Applications of 6072 M Bearing
In automotive applications, the 6072 M Bearing supports components like large axles and transmissions, where its size and strength are advantageous. In aerospace, it’s less common but can be found in ground support equipment due to its reliability.

Essential Roles of 6072 M Bearing
The 6072 M Bearing is vital in wind turbines, where its ability to handle high radial loads and harsh conditions ensures consistent performance. Its metric sizing also makes it compatible with a wide range of European machinery.
