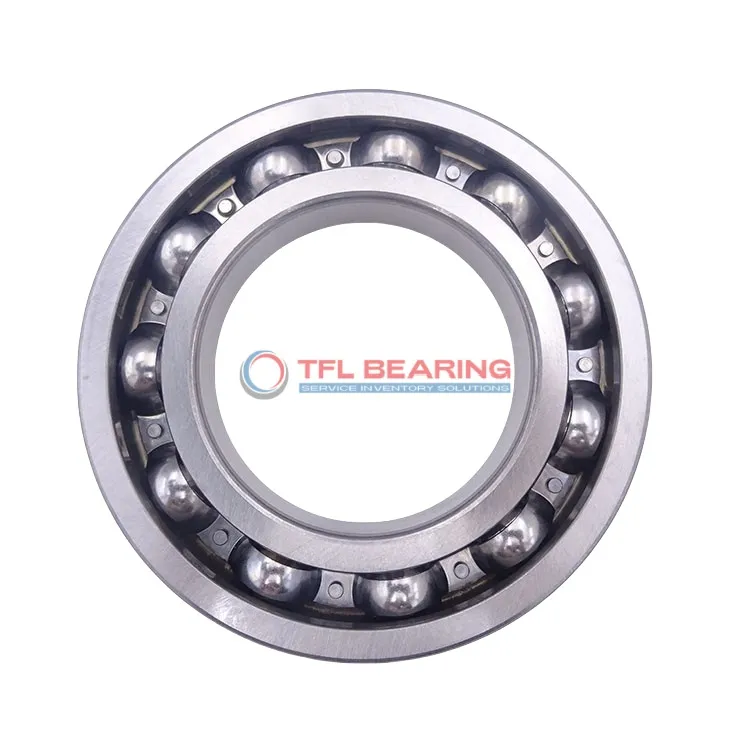

Single Row Deep Groove Ball Bearings 61824/C3

Single Row Deep Groove Ball Bearings 61824/C3

The 61824/C3 is a single-row deep groove ball bearing with a 120mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6542 lbf and runs smoothly at speeds up to 5300 RPM.

With an open design and C3 radial clearance, it offers flexibility in various operating conditions. The chrome steel cage enhances durability, making it a reliable choice for long-term use.

This bearing operates efficiently in temperatures from -30°C to 120°C. It’s interchangeable with SKF bearings, simplifying replacements.

Ideal for applications like electric motors or pumps where radial load handling is key. Weighing 0.51kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61824/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 6295 lbf
  • Max Speed 5300 rpm
  • Weight 0.51 kg
  • price（$） 107.793
Single Row Deep Groove Ball Bearings 61824/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61824/C3 Bearing

61824/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 6542 lbf, making it suitable for various industrial applications.
The open design allows for easy lubrication, ensuring smooth operation over time.
With a maximum speed of 5,300 rpm, it balances performance and durability.

How Does 61824/C3 Bearing Reduce Friction?

61824/C3 Bearing’s deep groove design minimises friction, promoting efficient rotation.
The chrome steel construction ensures durability while maintaining smooth performance.
Its C3 radial clearance provides optimal operation under varying temperature conditions.
This design helps extend the bearing’s service life in demanding environments.

Engineered for Precision: 61824/C3 Bearing

61824/C3 Bearing is precision-crafted to meet ABEC 1 and ISO P0 tolerance standards.
The single-row design ensures consistent performance under radial loads.
Its temperature range of -30°C to 120°C allows for reliable operation in diverse conditions.
The balanced construction reduces vibration, contributing to quieter operation.

Steel vs Ceramic Bearings: Strengths of 61824/C3 Bearing

61824/C3 Bearing’s chrome steel construction provides excellent strength and wear resistance.
It offers a cost-effective solution compared to ceramic bearings for many applications.
The material choice ensures good performance within its temperature range.
Its 16 mm width makes it a compact solution for space-constrained installations.

Why Choose 61824/C3 Bearing for Precision Tasks?

61824/C3 Bearing’s precise tolerances make it ideal for accuracy-dependent applications.
The deep groove design maintains consistent performance under radial loads.
Its 120 mm bore size accommodates larger shafts while maintaining stability.
The bearing’s construction ensures reliable operation in various industrial settings.

Application

Common Applications of 61824/C3 Bearing
The 61824/C3 Bearing is widely used in industrial machinery, such as conveyor systems and electric motors, where its radial load capacity ensures reliable performance. Its open design and C3 clearance make it suitable for applications with moderate speed and thermal expansion.

In automotive applications, 61824/C3 Bearing fits well in components like alternators and water pumps, providing smooth rotation under radial loads. The chrome steel construction offers durability in various operating conditions.

For automation equipment, 61824/C3 Bearing supports precise motion in robotic arms and assembly lines. Its metric dimensions and ABEC 1 tolerance make it a versatile choice for European and Asian machinery standards.

In household appliances like washing machines, 61824/C3 Bearing handles radial loads efficiently, ensuring quiet and long-lasting operation. The temperature range of -30°C to 120°C adds to its adaptability in different environments.
