Single Row Deep Groove Ball Bearings 61822/C3

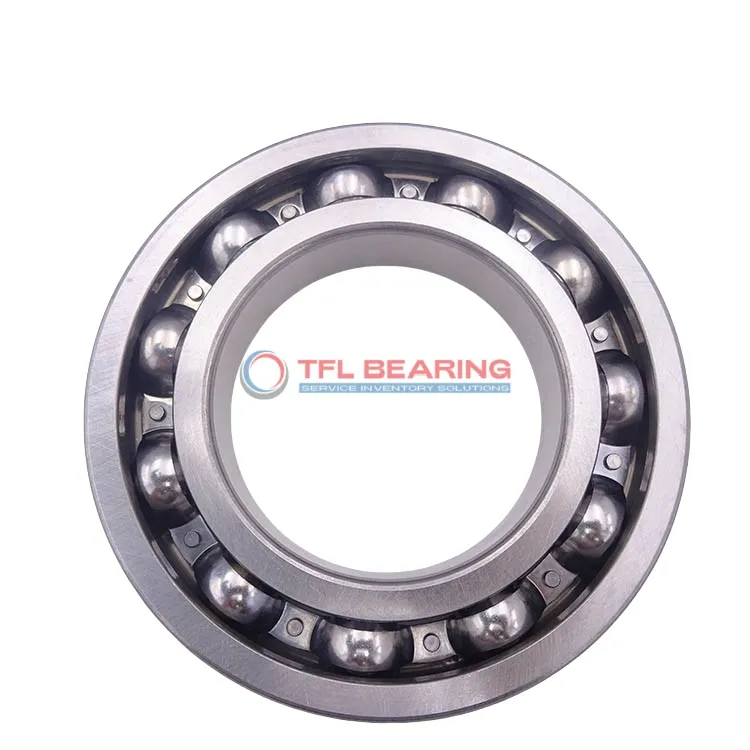

Single Row Deep Groove Ball Bearings 61822/C3

The 61822/C3 is a single-row deep groove ball bearing with a 110mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6317 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Weighing 0.47kg, it’s a robust option for applications like electric motors or pumps where radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61822/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6317 lbf
  • Static Radial Load 5845 lbf
  • Max Speed 5600 rpm
  • Weight 0.47 kg
  • price（$） 113.562
Single Row Deep Groove Ball Bearings 61822/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61822/C3 Bearing

61822/C3 Bearing is designed for radial loads, with a dynamic radial load capacity of 6317 lbf.
Its chrome steel construction ensures durability and reliable performance in various applications.

The open design of 61822/C3 Bearing allows for easy lubrication and maintenance.
With a maximum speed of 5,600 rpm, it offers a balance of speed and load capacity.

61822/C3 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its C3 radial clearance provides flexibility in different operating conditions.

The single row deep groove design of 61822/C3 Bearing ensures smooth rotation and reduced friction.
Its ABEC 1 tolerance class guarantees consistent performance for standard applications.

Application

Industrial Uses of 61822/C3 Bearing
61822/C3 Bearing is commonly used in industrial machinery like pumps and compressors, where its radial load capacity ensures reliable operation. The open design allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 61822/C3 Bearing fits well in electric motors and transmission systems, thanks to its C3 clearance for thermal expansion. Its chrome steel construction provides durability under continuous use.

For automation equipment, 61822/C3 Bearing offers smooth performance in conveyor belts and robotic arms. The metric sizing makes it versatile for various European and Asian machine designs.

Where Is 61822/C3 Bearing Used?
You’ll often find 61822/C3 Bearing in household appliances like washing machines, where its quiet operation is a plus. The wide temperature range also makes it suitable for different climates.

Built for Heavy-Duty Use: 61822/C3 Bearing
61822/C3 Bearing handles high radial loads in construction equipment like gearboxes. Its ABEC 1 tolerance ensures consistent performance without needing frequent adjustments.

Light-Duty vs Heavy-Duty: Best Uses for 61822/C3 Bearing
In light-duty scenarios, 61822/C3 Bearing works well in office machinery like printers. For heavier tasks, it reliably supports agricultural equipment shafts and pulleys.
