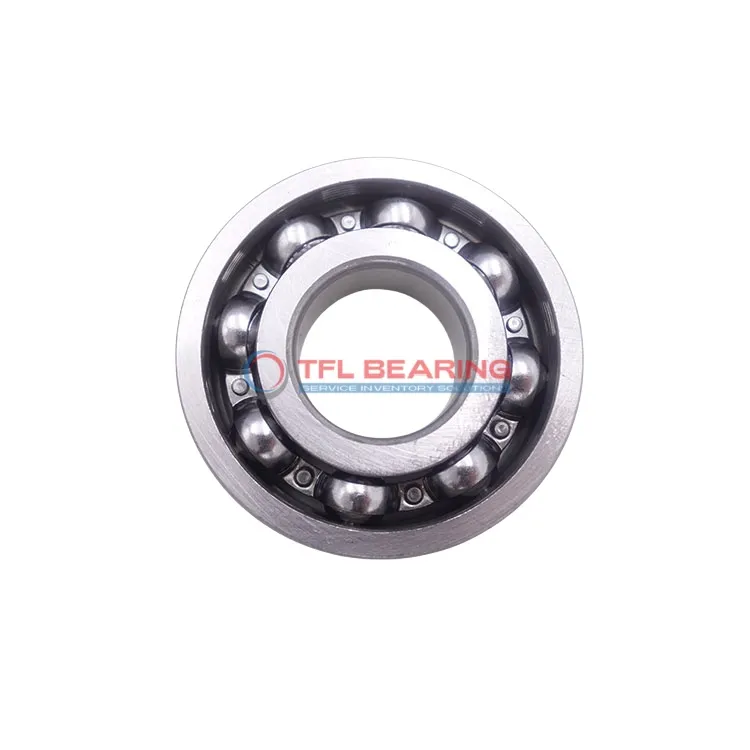

Single Row Deep Groove Ball Bearings 61820/W64

Single Row Deep Groove Ball Bearings 61820/W64

The 61820/W64 is a single row deep groove ball bearing with a 100mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4002 lbf and operates smoothly at speeds reaching 6300 RPM.

Its open design and solid oil lubrication ensure easy maintenance and consistent performance. The bearing functions reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or small machinery where radial loads are common.

Weighing 0.3kg, it’s compact yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61820/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 13 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4002 lbf
  • Static Radial Load 4114 lbf
  • Max Speed 6300 rpm
  • Weight 0.3 kg
Single Row Deep Groove Ball Bearings 61820/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61820/W64 Bearing

61820/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4002 lbf, making it suitable for various industrial applications.

The solid oil lubrication ensures smooth operation and reduces the need for frequent maintenance.
With a maximum speed of 6,300 rpm, it delivers reliable performance under demanding conditions.

61820/W64 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its open design allows for easy installation and compatibility with different machinery setups.

Application

Where Is 61820/W64 Bearing Used?
61820/W64 Bearing is commonly found in industrial machinery, especially in applications requiring smooth radial load handling, such as conveyor systems and pumps. Its solid oil lubrication ensures long service life with minimal maintenance.

In automotive applications, 61820/W64 Bearing supports components like alternators and water pumps, where its durability and precision are key. The chrome steel construction also helps it withstand high temperatures and heavy loads.

For home appliances, 61820/W64 Bearing is used in devices like washing machines and fans, providing quiet and efficient operation. Its compact design makes it ideal for space-constrained applications.

In automation systems, 61820/W64 Bearing ensures reliable performance in robotic arms and assembly lines. The open seal type allows for easy inspection and cleaning, which is useful in dusty environments.

Medical equipment like centrifuges and lab instruments benefit from 61820/W64 Bearing’s consistent performance. The ISO P0 tolerance ensures smooth operation, crucial for precision tasks.
