Single Row Deep Groove Ball Bearings 61813-2RZ/VT127

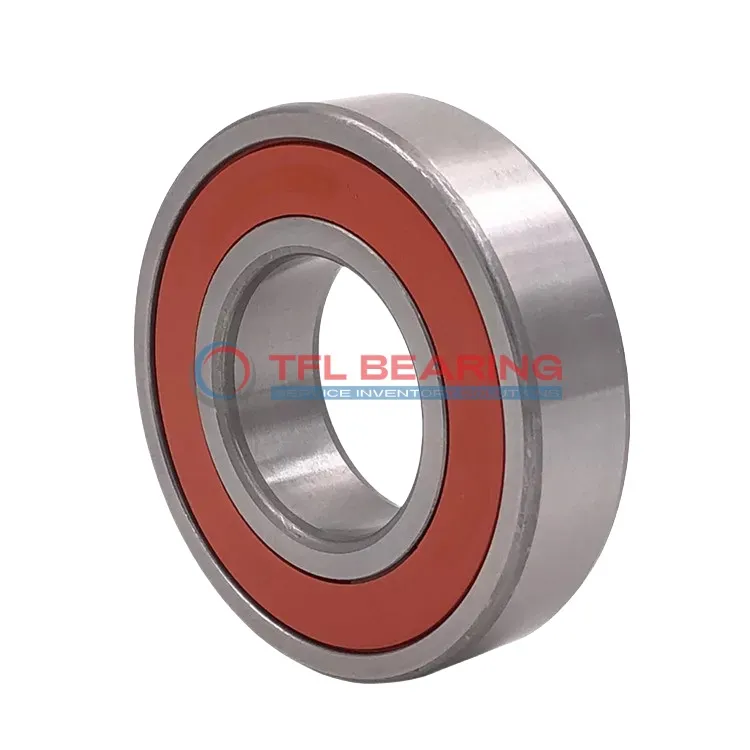

Single Row Deep Groove Ball Bearings 61813-2RZ/VT127

The 61813-2RZ/VT127 is a compact single-row deep groove ball bearing, measuring 65mm by 85mm by 10mm. Made from chrome steel, it offers reliable performance for radial loads up to 2788 lbf.

Its sealed design keeps out dust and dirt, making it low-maintenance for long-term use. The bearing can handle speeds up to 10,000 RPM and operates in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, providing a cost-effective replacement option. Ideal for electric motors or small machinery where space is limited.

Weighing just 0.13kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61813-2RZ/VT127
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2788 lbf
  • Static Radial Load 2855 lbf
  • Max Speed 10000 rpm
  • Weight 0.13 kg
Single Row Deep Groove Ball Bearings 61813-2RZ/VT127 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61813-2RZ/VT127 Bearing

61813-2RZ/VT127 Bearing is designed for radial loads, with a dynamic radial load capacity of 2788 lbf.
Its sealed construction protects against contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the ABEC 1 tolerance ensures reliable performance.
With a maximum speed of 10,000 rpm, it balances efficiency and longevity.

61813-2RZ/VT127 Bearing operates in temperatures from -30°C to 120°C, making it versatile for different applications.
Its compact size (65 mm × 85 mm × 10 mm) allows for easy integration into space-constrained designs.

Application

Essential Roles of 61813-2RZ/VT127 Bearing
In industrial settings, 61813-2RZ/VT127 Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

How Does 61813-2RZ/VT127 Bearing Improve Performance?
For automotive applications, 61813-2RZ/VT127 Bearing is ideal for wheel hubs and alternators, providing smooth rotation and long service life. Its ABEC 1 tolerance ensures reliable performance under radial loads.

Built for Heavy-Duty Use: 61813-2RZ/VT127 Bearing
In automation systems, 61813-2RZ/VT127 Bearing supports robotic arms and conveyor belts, where precision and low maintenance are key. The sealed design also makes it suitable for dusty or humid conditions.

Medical vs Industrial: Where 61813-2RZ/VT127 Bearing Excels
While 61813-2RZ/VT127 Bearing performs well in industrial machinery, it’s also found in medical devices like centrifuges, thanks to its consistent operation and low noise. The temperature range allows for versatility across different applications.
