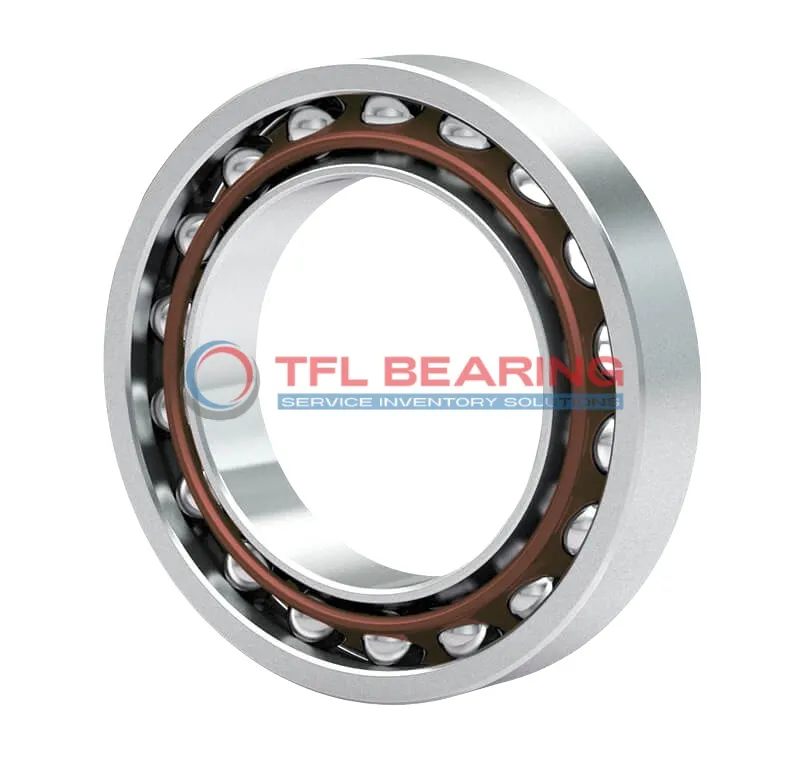

Super Precision Angular Contact Ball Bearings 7014 CE/P4ADT

Super Precision Angular Contact Ball Bearings 7014 CE/P4ADT

The 7014 CE/P4ADT is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 8775 lbf and operates smoothly at speeds up to 22000 RPM.

Its 15° contact angle and matched arrangement of two bearings provide excellent stability for angular loads. The phenolic cage ensures quiet and efficient performance, even at high speeds.

Preloaded for precision, this bearing is ideal for applications like machine tool spindles or high-speed robotics. It works reliably in temperatures from -30°C to 110°C.

Weighing 1.22kg, it’s robust yet manageable for its size. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 CE/P4ADT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings << DT
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 8212 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 22000 rpm
  • Weight 1.22 kg
Super Precision Angular Contact Ball Bearings 7014 CE/P4ADT dimension drawing
Download DWG Download PDF

Features

Performance Features of 7014 CE/P4ADT Bearing

7014 CE/P4ADT Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

The matched arrangement of two bearings enhances stability and performance under high radial loads.
With a dynamic radial load capacity of 8775 lbf, it handles demanding conditions reliably.

7014 CE/P4ADT Bearing operates at speeds up to 22,000 rpm, making it suitable for precision tasks.
Its P4A tolerance class ensures consistent accuracy, even in high-speed applications.

Application

Industrial Uses of 7014 CE/P4ADT Bearing
7014 CE/P4ADT Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings enhances stability in demanding industrial environments.

What Makes 7014 CE/P4ADT Bearing a Preferred Choice?
In automotive applications, 7014 CE/P4ADT Bearing supports gearbox systems, providing smooth performance under radial and axial loads. Its phenolic cage offers durability and reduces friction during high-speed operations.

Perfect Fit for Automation: 7014 CE/P4ADT Bearing
7014 CE/P4ADT Bearing is ideal for robotic arms and automated assembly lines, where precision and reliability are key. The P4A tolerance class ensures consistent performance in repetitive tasks.

Medical vs Industrial: Where 7014 CE/P4ADT Bearing Excels
7014 CE/P4ADT Bearing performs well in medical imaging devices, thanks to its chrome steel construction and low vibration. In industrial settings, it handles heavy loads in CNC machines with ease.

Light-Duty vs Heavy-Duty: Best Uses for 7014 CE/P4ADT Bearing
For light-duty applications like dental drills, 7014 CE/P4ADT Bearing offers quiet operation. In heavy-duty scenarios, such as printing presses, it maintains precision under constant use.
