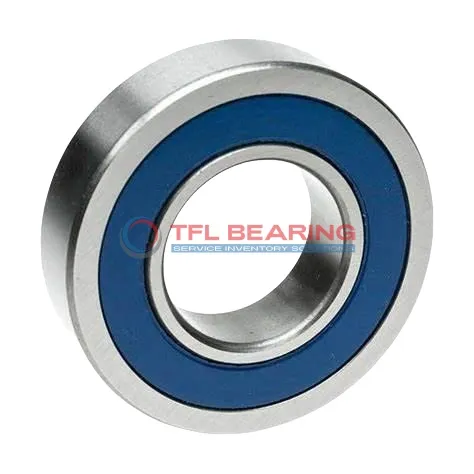

Single Row Deep Groove Ball Bearings 6206-2RS1/C4GJN

Single Row Deep Groove Ball Bearings 6206-2RS1/C4GJN

The 6206-2RS1/C4GJN is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11,000 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the chrome steel cage ensures reliable performance. The bearing works well in temperatures from -30°C to 120°C.

With a C4 radial clearance, it offers flexibility for applications requiring slight misalignment. Ideal for electric motors, pumps, or industrial gearboxes where sealed protection is needed.

Weighing 199g, it’s a sturdy yet lightweight option. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1/C4GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
Single Row Deep Groove Ball Bearings 6206-2RS1/C4GJN dimension drawing
Download DWG Download PDF

Features

How Does 6206-2RS1/C4GJN Bearing Reduce Friction?

6206-2RS1/C4GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps contaminants out, maintaining consistent performance over time.
Chrome steel rings and balls provide durability, while the C4 radial clearance ensures reliable operation.
With a maximum speed of 11,000 rpm, it balances efficiency and longevity.

Application

Key Fields for 6206-2RS1/C4GJN Bearing
6206-2RS1/C4GJN Bearing is commonly used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6206-2RS1/C4GJN Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its C4 clearance allows for thermal expansion, making it suitable for varying temperatures.

For household appliances like washing machines, 6206-2RS1/C4GJN Bearing offers smooth operation and low maintenance. The sealed design also helps prolong its lifespan in dusty or humid conditions.

In automation systems, 6206-2RS1/C4GJN Bearing is often found in conveyor belts and robotic arms. Its balanced performance makes it a versatile choice for both light and medium-duty tasks.
