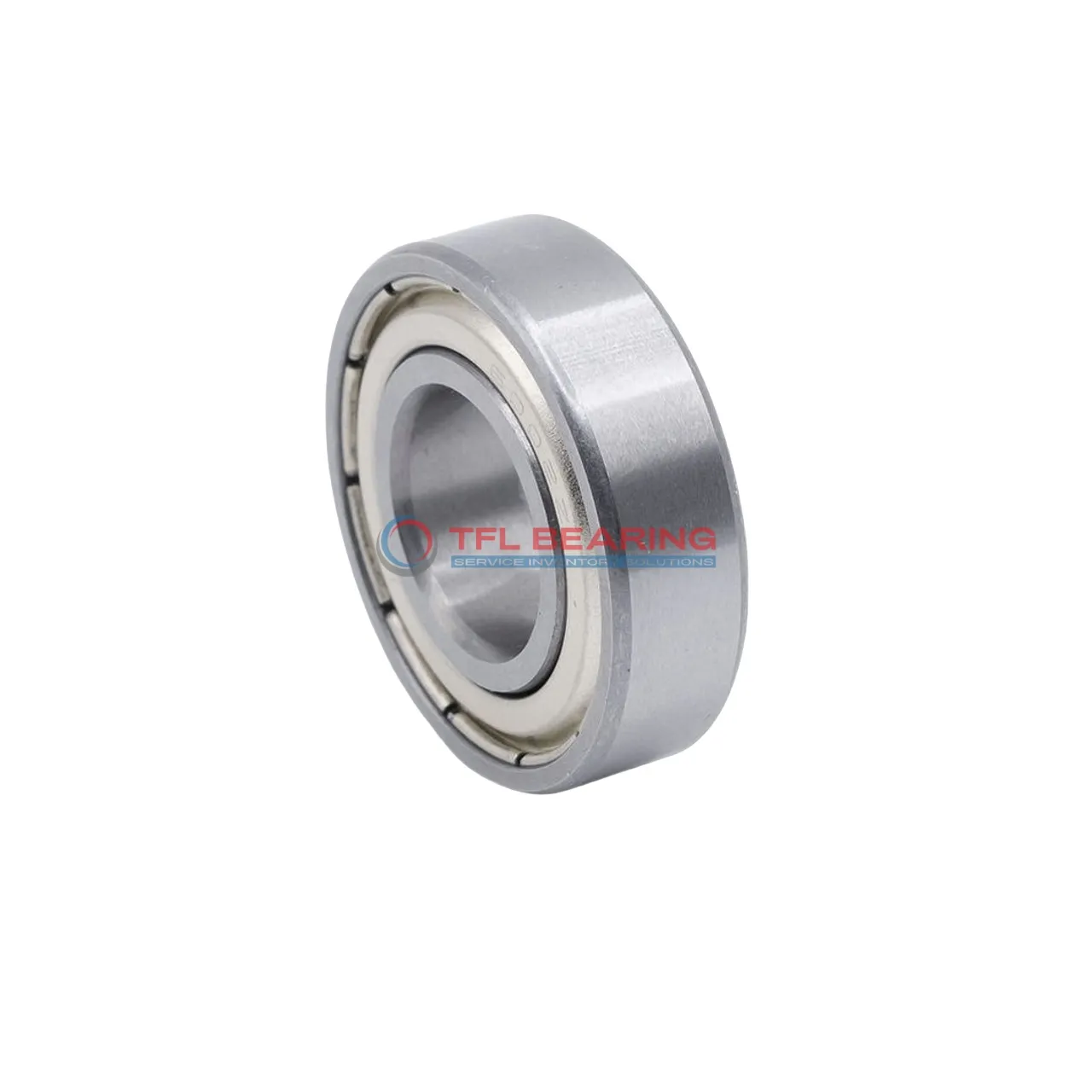

Single Row Deep Groove Ball Bearings 6306-2ZJEM

Single Row Deep Groove Ball Bearings 6306-2ZJEM

The 6306-2ZJEM is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Its shielded design keeps dirt out while maintaining smooth rotation, and the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 346g, it’s a sturdy yet manageable option for various industrial uses. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g
  • price（$） 6.777
Single Row Deep Groove Ball Bearings 6306-2ZJEM dimension drawing
Download DWG Download PDF

Features

How Does 6306-2ZJEM Bearing Reduce Friction?

6306-2ZJEM Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The shielded construction helps keep contaminants out, ensuring consistent performance.

Made from chrome steel, 6306-2ZJEM Bearing offers durability and resistance to wear.
Its dynamic radial load capacity of 6002 lbf makes it suitable for various industrial applications.

With a maximum speed of 9,600 rpm, 6306-2ZJEM Bearing balances efficiency and reliability.
The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Application

Essential Roles of 6306-2ZJEM Bearing
In industrial settings, 6306-2ZJEM Bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

How Does 6306-2ZJEM Bearing Improve Performance?
For automotive applications like alternators and water pumps, 6306-2ZJEM Bearing provides reliable radial load support. Its ABEC 1 tolerance ensures smooth operation, reducing wear over time.

Built for Heavy-Duty Use: 6306-2ZJEM Bearing
In conveyor systems, 6306-2ZJEM Bearing handles continuous radial loads with ease. The shielded seals protect against dust and debris, extending the bearing’s service life.

Medical vs Industrial: Where 6306-2ZJEM Bearing Excels
While 6306-2ZJEM Bearing is suitable for industrial gearboxes, its precision also makes it a fit for medical devices like centrifuges. The temperature range allows for consistent performance in various conditions.

Perfect Fit for Automation: 6306-2ZJEM Bearing
In robotic arms, 6306-2ZJEM Bearing offers smooth rotation and low friction. The metric sizing ensures compatibility with a wide range of automated equipment.
