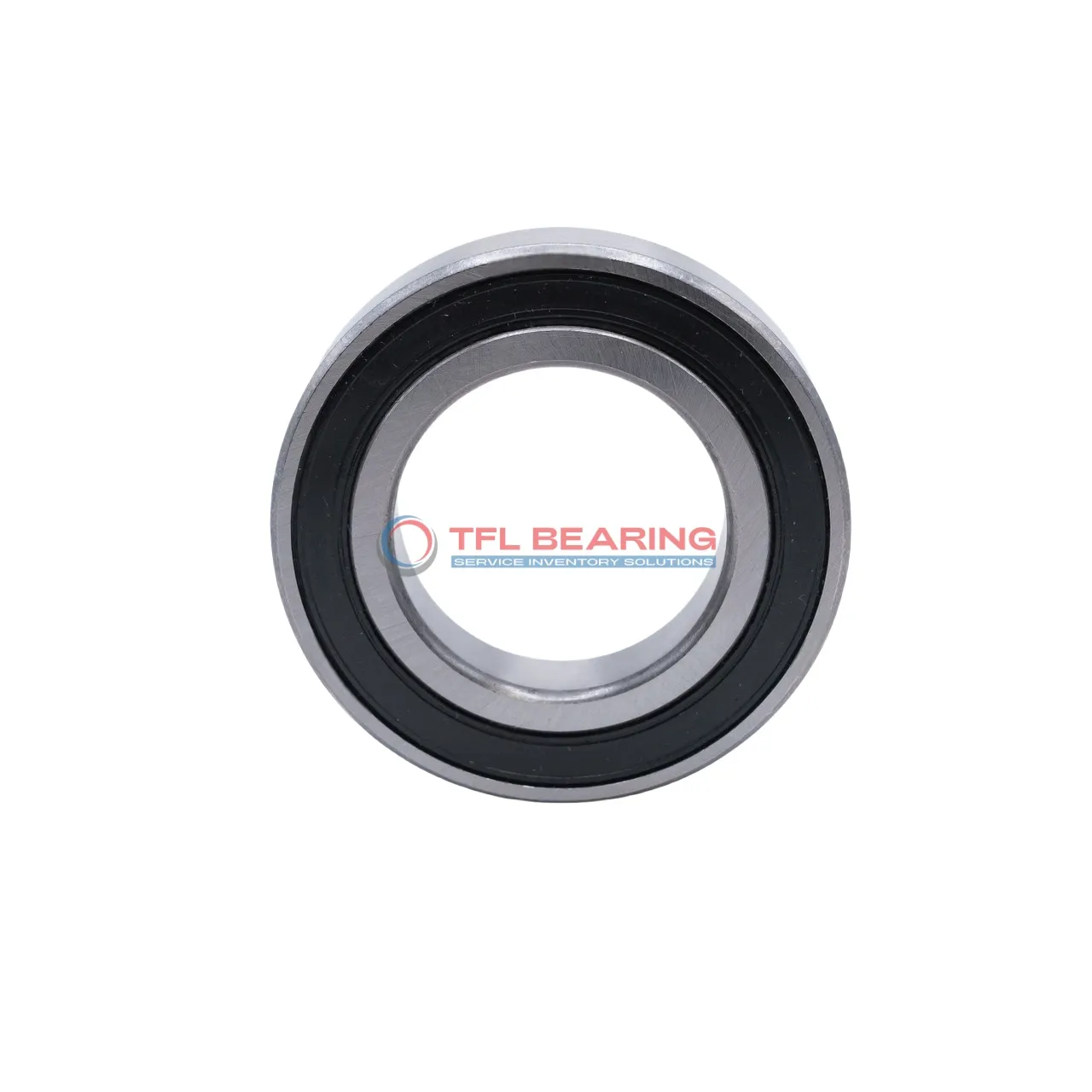

Single Row Deep Groove Ball Bearings 61809-2RS1

Single Row Deep Groove Ball Bearings 61809-2RS1

The 61809-2RS1 is a compact single-row deep groove ball bearing with a 45mm bore and 58mm outer diameter, measuring just 7mm wide. Made from chrome steel, it offers reliable performance for radial loads up to 1490 lbf.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The stainless steel cage ensures smooth operation at speeds up to 6700 RPM.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for small electric motors or appliances where space is limited.

Weighing only 0.035kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61809-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 58 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1490 lbf
  • Static Radial Load 1371 lbf
  • Max Speed 6700 rpm
  • Weight 0.035 kg
  • price（$） 36.36
Single Row Deep Groove Ball Bearings 61809-2RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61809-2RS1 Bearing

61809-2RS1 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1490 lbf, ensuring reliable performance in various applications.
The sealed design protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 6,700 rpm, it delivers a balance of durability and efficiency.

Application

Common Applications of 61809-2RS1 Bearing
61809-2RS1 Bearing is widely used in industrial equipment like small electric motors and pumps, where its sealed design helps keep out dust and moisture. The compact size makes it ideal for tight spaces without compromising on load capacity.

In automotive applications, 61809-2RS1 Bearing fits well in components such as alternators and cooling fans, ensuring smooth rotation under radial loads. Its grease lubrication reduces maintenance needs, perfect for long-term use in vehicles.

For home appliances, 61809-2RS1 Bearing works reliably in devices like washing machines and fans, where quiet operation is key. The chrome steel construction ensures durability even with daily wear and tear.

Automation systems benefit from 61809-2RS1 Bearing’s precision in robotic arms and conveyor belts. The P6 tolerance class guarantees consistent performance in high-accuracy tasks.

Medical devices like small lab equipment often use 61809-2RS1 Bearing for its smooth operation and resistance to contamination. The stainless steel cage adds an extra layer of reliability in sterile environments.
