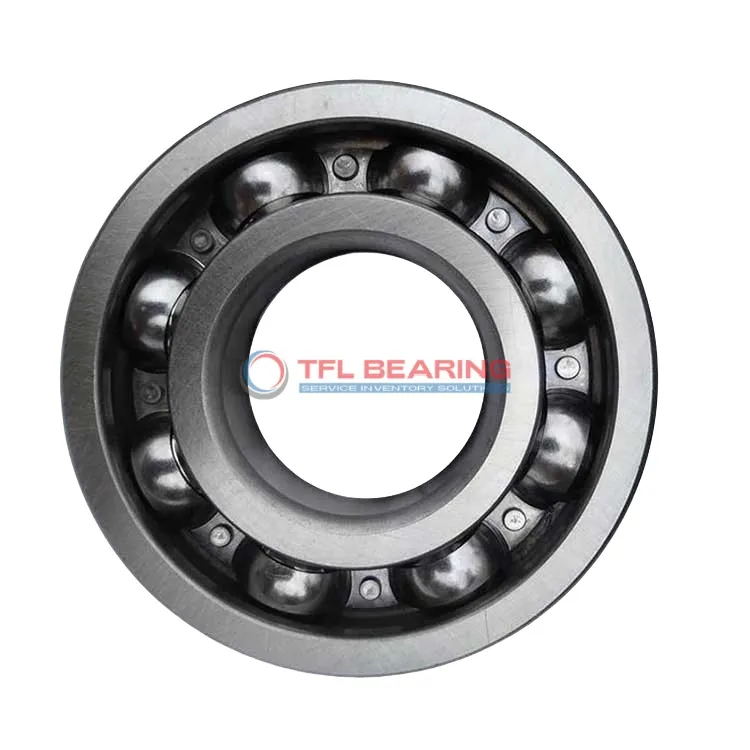

Single Row Deep Groove Ball Bearings 61806

Single Row Deep Groove Ball Bearings 61806

The 61806 is a compact single-row deep groove ball bearing, measuring 30mm in bore and 42mm in outer diameter, with a slim 7mm width. Made from chrome steel, it’s built to handle radial loads up to 922 lbf.

Its open design allows for easy lubrication and maintenance, while the stainless steel cage ensures durability. With a maximum speed of 20,000 RPM, it’s suitable for high-speed applications.

This bearing operates smoothly in temperatures ranging from -30°C to 120°C, making it versatile for various environments. It’s also interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for small machinery or electric motors where space is limited but performance is key. Weighing just 0.024kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61806
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 922 lbf
  • Static Radial Load 652 lbf
  • Max Speed 20000 rpm
  • Weight 0.024 kg
  • price（$） 14.022
Single Row Deep Groove Ball Bearings 61806 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61806 Bearing

61806 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 922 lbf.
Its compact size of 30 mm×42 mm×7 mm makes it suitable for space-constrained applications.
The stainless steel cage ensures smooth operation and reduces wear, even at high speeds of 20,000 rpm.
With a temperature range of -30° to 120 °C, it performs reliably in various conditions.

Application

Industrial Uses of 61806 Bearing
61806 Bearing is commonly used in small electric motors and pumps, where its compact size and radial load capacity are ideal. The open design ensures easy lubrication, extending service life in continuous operation.

Where Is 61806 Bearing Used?
You’ll often find 61806 Bearing in office equipment like printers and scanners, thanks to its smooth performance and low noise. Its chrome steel construction also makes it suitable for light industrial applications.

Perfect Fit for Automation: 61806 Bearing
In robotic arms and small conveyor systems, 61806 Bearing provides reliable motion control with minimal maintenance. The P6 tolerance class ensures consistent precision for automated tasks.

Medical vs Industrial: Where 61806 Bearing Excels
While 61806 Bearing works well in medical devices like dental tools, it’s equally effective in industrial fans. Its stainless steel cage offers durability in both sterile and dusty environments.

Essential Roles of 61806 Bearing
For household appliances like blenders or mixers, 61806 Bearing delivers quiet and efficient performance. The wide temperature range also makes it adaptable to various kitchen conditions.
