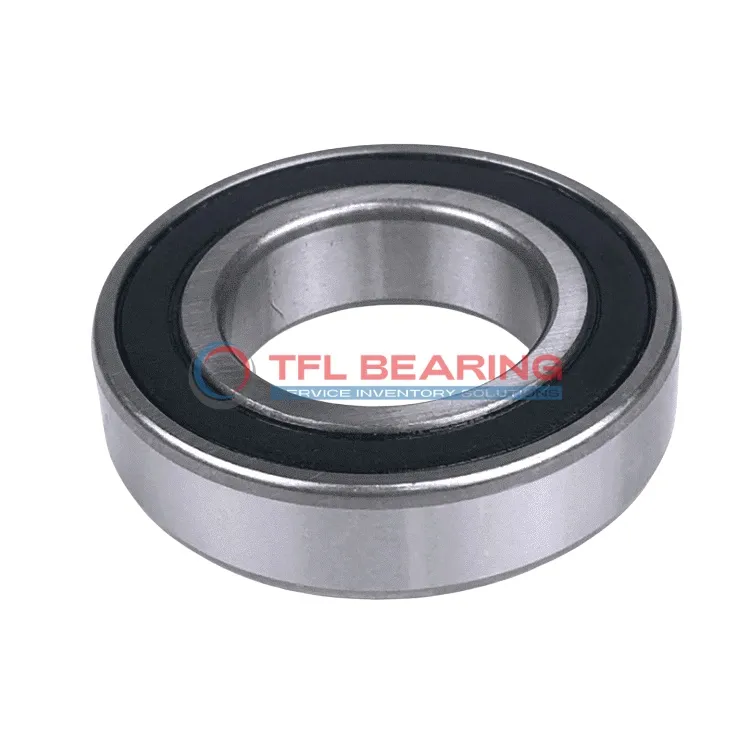

Single Row Deep Groove Ball Bearings 61804-2RS1/W64L

Single Row Deep Groove Ball Bearings 61804-2RS1/W64L

The 61804-2RS1/W64L is a compact single-row deep groove ball bearing, measuring 20mm by 32mm by 7mm, crafted from durable chrome steel. It handles radial loads up to 906 lbf and spins smoothly at speeds up to 28,000 RPM.

With its sealed design and solid oil lubrication, it requires minimal maintenance and stays protected from dust and moisture. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for small electric motors or appliances where space is limited.

Weighing just 0.017kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61804-2RS1/W64L
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 906 lbf
  • Static Radial Load 522 lbf
  • Max Speed 28000 rpm
  • Weight 0.017 kg
  • price（$） 23.031
Single Row Deep Groove Ball Bearings 61804-2RS1/W64L dimension drawing
Download DWG Download PDF

Features

Performance Features of 61804-2RS1/W64L Bearing

61804-2RS1/W64L Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 906 lbf, ensuring reliable performance in various applications.

The sealed design and solid oil lubrication reduce maintenance needs while protecting against contaminants.
With a maximum speed of 28,000 rpm, it balances efficiency and durability for high-speed operations.

61804-2RS1/W64L Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its compact size (20 mm×32 mm×7 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 61804-2RS1/W64L Bearing
In industrial settings, 61804-2RS1/W64L Bearing is commonly used in small electric motors and pumps, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

Where Is 61804-2RS1/W64L Bearing Used?
You’ll often find 61804-2RS1/W64L Bearing in automotive applications like alternators and cooling fans, thanks to its compact size and reliable radial load handling. The chrome steel construction also makes it resistant to wear.

Built for Heavy-Duty Use: 61804-2RS1/W64L Bearing
This bearing works well in household appliances like washing machines, where its sealed design prevents water damage. The ABEC 1 tolerance ensures smooth operation for everyday use.

Light-Duty vs Heavy-Duty: Best Uses for 61804-2RS1/W64L Bearing
For light-duty tasks, 61804-2RS1/W64L Bearing is ideal in office equipment like printers, while its durability also suits small industrial gearboxes. The wide temperature range adds versatility.
