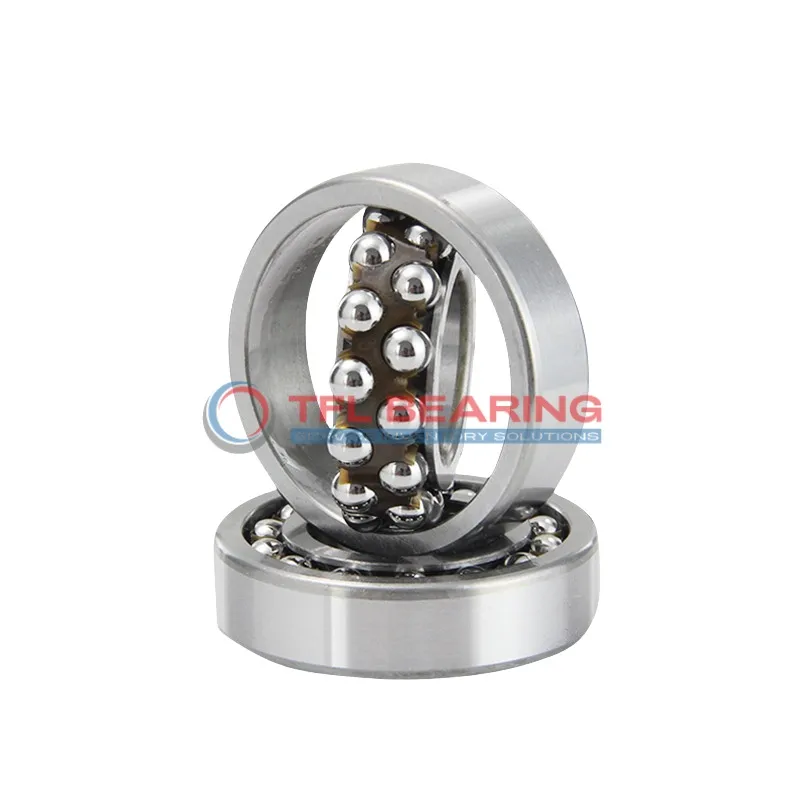

Self Aligning Ball Bearings 2308-TVH-C3

Self Aligning Ball Bearings 2308-TVH-C3

The 2308-TVH-C3 is a self-aligning ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7605 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and sealed construction help it stay aligned and protected from contaminants, while the nylon cage reduces friction. The bearing is pre-lubricated for easy installation and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.96kg, it’s a robust option for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2308-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 55.4 mm
  • Internal Diameter On Outer Ring 81.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.96 kg
  • Price（$） 88.79
Self Aligning Ball Bearings 2308-TVH-C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2308-TVH-C3 Bearing for Precision Tasks?

2308-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 7605 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage provide smooth operation and reduce maintenance needs.
With a maximum speed of 4,800 rpm, it offers reliable performance in various conditions.

Application

Key Fields for 2308-TVH-C3 Bearing
2308-TVH-C3 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature helps handle misalignment issues. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2308-TVH-C3 Bearing fits well in gearboxes and wheel hubs, providing smooth radial load support. Its nylon cage reduces noise, making it suitable for vehicles where quiet operation is important.

For automation systems, 2308-TVH-C3 Bearing works efficiently in robotic arms and assembly lines. The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.

In household appliances like washing machines, 2308-TVH-C3 Bearing offers reliable performance with minimal maintenance. The lubricated design ensures smooth rotation over extended periods.
