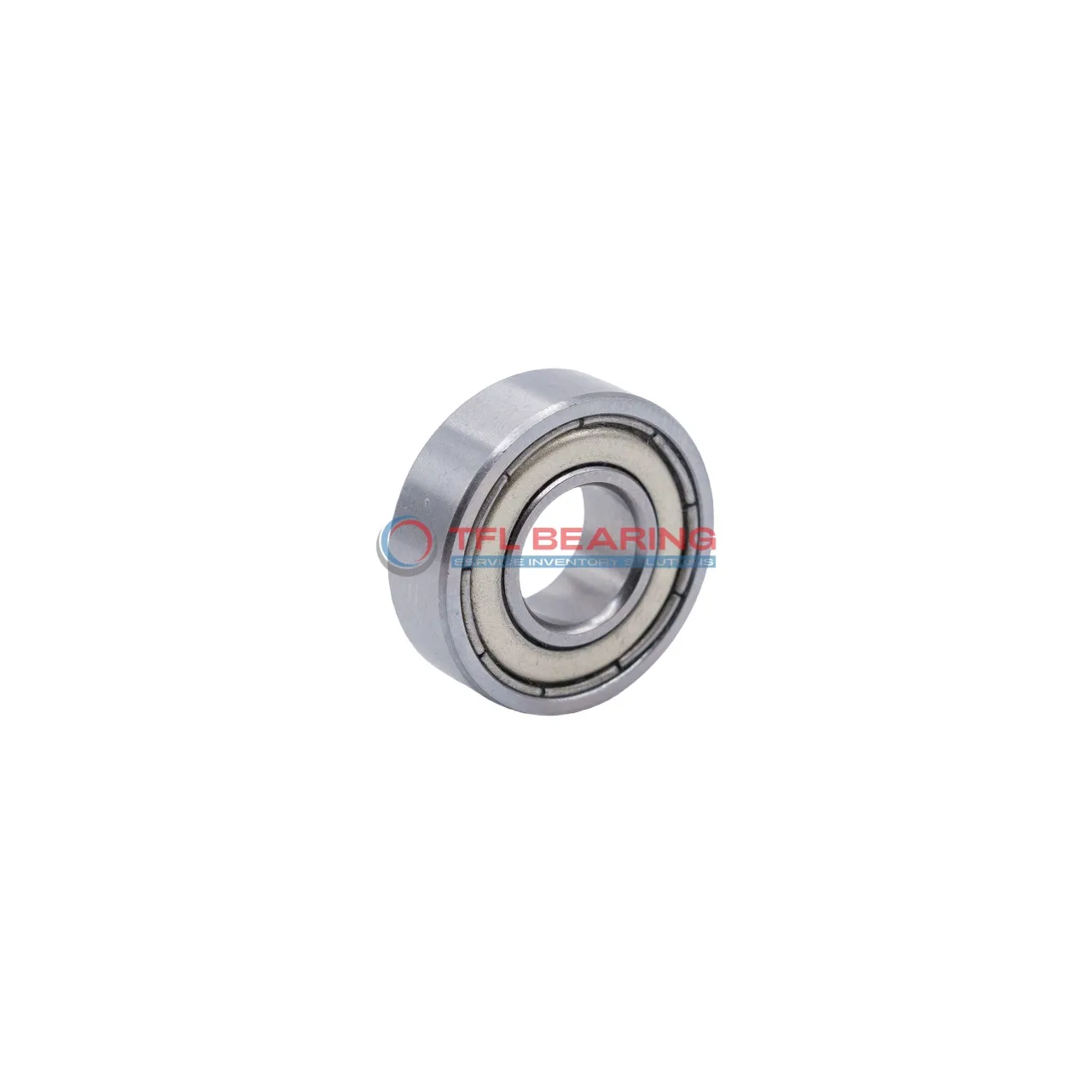

Single Row Deep Groove Ball Bearings 607-2ZTN9/C3GWF6

Single Row Deep Groove Ball Bearings 607-2ZTN9/C3GWF6

The 607-2ZTN9/C3GWF6 is a compact single-row deep groove ball bearing, measuring just 7mm by 19mm by 6mm. Made from chrome steel, it handles radial loads up to 447 lbf and spins smoothly at speeds up to 36,000 RPM.

Its shielded design keeps dust out while the nylon cage reduces friction for quiet operation. The bearing works in temperatures from -30°C to 120°C, making it versatile for various conditions.

With C3 radial clearance, it’s suitable for applications where slight expansion is needed. Ideal for small motors, power tools, or appliances where reliable performance is key.

Weighing only 7.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for many industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 607-2ZTN9/C3GWF6
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 36000 rpm
  • Weight 7.8 g
Single Row Deep Groove Ball Bearings 607-2ZTN9/C3GWF6 dimension drawing
Download DWG Download PDF

Features

Performance Features of 607-2ZTN9/C3GWF6 Bearing

607-2ZTN9/C3GWF6 Bearing is designed with chrome steel rings and balls, ensuring durability and resistance to wear.
Its shielded design protects against contaminants, making it suitable for various environments.

The nylon cage in 607-2ZTN9/C3GWF6 Bearing reduces friction and noise, enhancing smooth operation.
With a maximum speed of 36,000 rpm, it delivers reliable performance in high-speed applications.

607-2ZTN9/C3GWF6 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance under load.

The dynamic radial load capacity of 447 lbf makes 607-2ZTN9/C3GWF6 Bearing ideal for radial load applications.
Its compact size of 7 mm×19 mm×6 mm fits seamlessly into various machinery designs.

Application

Common Applications of 607-2ZTN9/C3GWF6 Bearing
This bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its shielded design helps keep dust out while maintaining smooth operation.

In automation systems, 607-2ZTN9/C3GWF6 Bearing works well in compact robotic joints and conveyor rollers. The nylon cage reduces noise, making it suitable for environments where quiet operation is important.

For consumer electronics, this bearing’s small size and reliability make it ideal for devices like printers and disk drives. The chrome steel construction ensures durability even with continuous use.

The C3 clearance allows for slight thermal expansion, which is useful in applications like power tools where temperatures can vary. Its metric sizing also makes it easy to replace in most European-designed equipment.
