Self Aligning Ball Bearings 2209-2RS-TVH

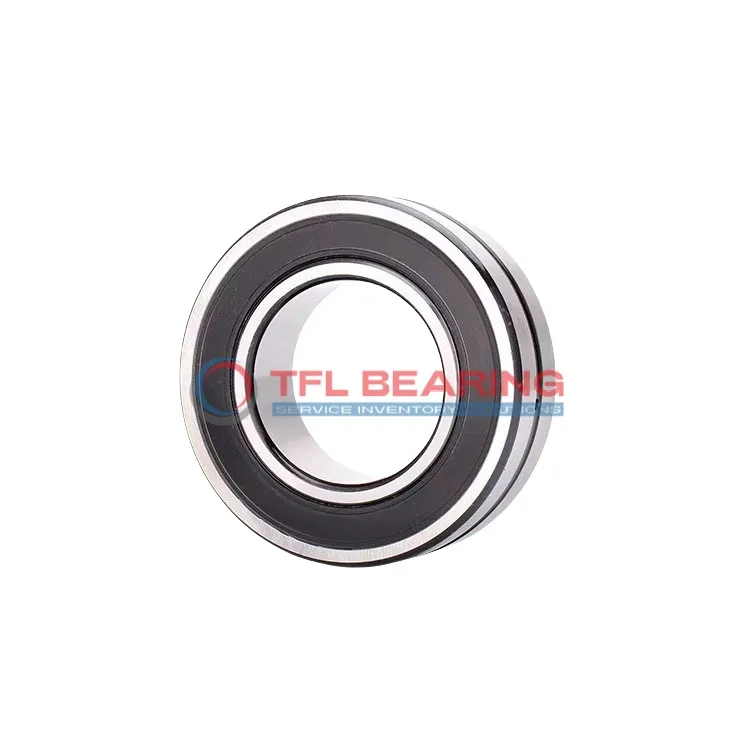

Self Aligning Ball Bearings 2209-2RS-TVH

The 2209-2RS-TVH is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, designed for radial loads. Its compact 23mm width makes it suitable for tight spaces, while the chrome steel construction ensures durability.

This double-row bearing handles radial loads up to 5152 lbf and operates smoothly at speeds up to 5300 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

The nylon cage minimises friction and noise, ideal for quieter applications. It works in temperatures from -30°C to 110°C, offering reliable performance in various conditions.

Interchangeable with SKF bearings, it’s a practical choice for replacements. Commonly used in industrial machinery, conveyors, or agricultural equipment where misalignment might occur. Weighing 0.53kg, it’s robust yet manageable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2209-2RS-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 52.9 mm
  • Internal Diameter On Outer Ring 75.25 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 0.53 kg
  • Price（$） 52.6
Self Aligning Ball Bearings 2209-2RS-TVH dimension drawing
Download DWG Download PDF

Features

Why Choose 2209-2RS-TVH Bearing for Precision Tasks?

2209-2RS-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 5152 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
With a maximum speed of 5,300 rpm, it offers reliable performance in various conditions.

2209-2RS-TVH Bearing operates smoothly within a temperature range of -30° to 110°C.
Its lubricated design ensures long service life with minimal maintenance.

Application

Industrial Uses of 2209-2RS-TVH Bearing
2209-2RS-TVH Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate minor misalignments. The sealed design keeps contaminants out, ensuring reliable performance in dusty environments.

What Makes 2209-2RS-TVH Bearing a Preferred Choice?
In automotive applications like electric motors, 2209-2RS-TVH Bearing offers smooth operation thanks to its double-row construction. The nylon cage reduces friction, making it suitable for high-speed scenarios.

Perfect Fit for Automation: 2209-2RS-TVH Bearing
2209-2RS-TVH Bearing works well in robotic arms, providing stability and precision. Its chrome steel rings and balls ensure durability even with frequent movement.

Medical vs Industrial: Where 2209-2RS-TVH Bearing Excels
For medical devices like lab equipment, 2209-2RS-TVH Bearing’s sealed design prevents contamination. In industrial settings, it handles radial loads efficiently, making it versatile.

How Does 2209-2RS-TVH Bearing Support High-Speed Operations?
2209-2RS-TVH Bearing’s lubricated design reduces wear during high-speed use, such as in fans or pumps. The metric sizing ensures compatibility with various machinery.
