Single Row Deep Groove Ball Bearings 6064 M

Single Row Deep Groove Ball Bearings 6064 M

The 6064 M is a single-row deep groove ball bearing with a 320mm bore and 480mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 83404 lbf and operates smoothly at speeds up to 2200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 120°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for heavy-duty machinery or industrial equipment where radial load support is essential.

Weighing 46kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6064 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 320 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 74 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 83404 lbf
  • Static Radial Load 121397 lbf
  • Max Speed 2200 rpm
  • Weight 46000 g
  • price（$） 1870.353

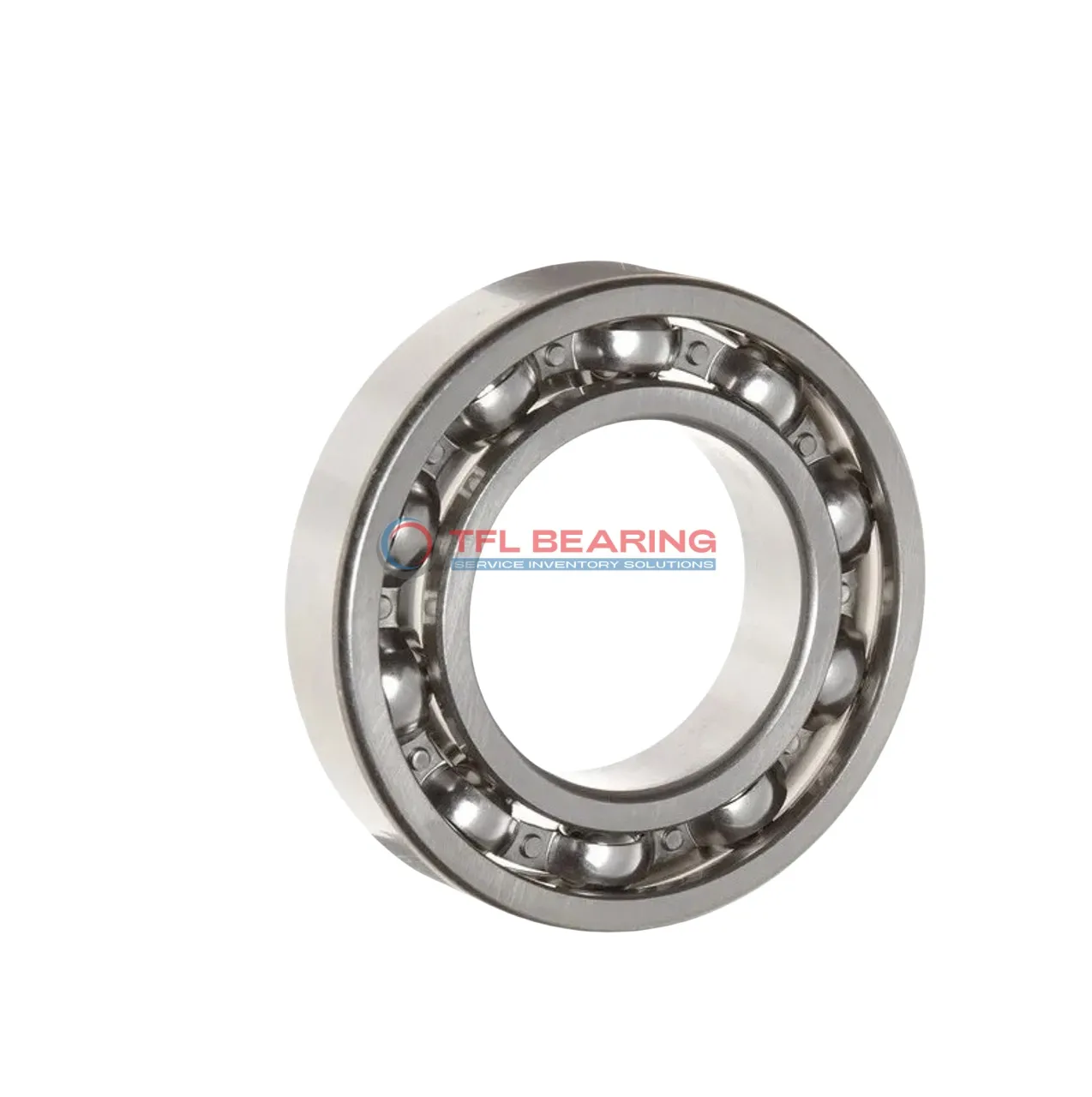

Single Row Deep Groove Ball Bearings 6064 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6064 M Bearing

6064 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 83404 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, even under heavy loads.

The single row deep groove design enhances stability, making it suitable for high-precision applications.
With a maximum speed of 2,200 rpm, it balances performance and durability.

6064 M Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open seal design allows for easy maintenance and inspection.

The P6 tolerance class ensures precise fit and reliable performance.
This makes 6064 M Bearing a dependable choice for industrial applications.

Application

Industrial Uses of 6064 M Bearing
6064 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and gearboxes, where its robust design handles significant radial loads. The open seal type allows for easy lubrication, making it suitable for high-temperature environments.

Where Is 6064 M Bearing Used?
You’ll often find 6064 M Bearing in wind turbines and mining equipment, thanks to its ability to withstand harsh conditions. Its chrome steel construction ensures long-lasting performance even under continuous operation.

Built for Heavy-Duty Use: 6064 M Bearing
6064 M Bearing excels in applications like conveyor systems and large electric motors, where reliability is key. The P6 tolerance class ensures precise alignment, reducing wear and tear over time.

Automotive vs Aerospace: Applications of 6064 M Bearing
In automotive settings, 6064 M Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems. Its high static radial load capacity makes it versatile across industries.

Perfect Fit for Automation: 6064 M Bearing
6064 M Bearing is ideal for automated production lines, where smooth operation is essential. The stainless steel cage adds durability, making it a dependable choice for repetitive tasks.
