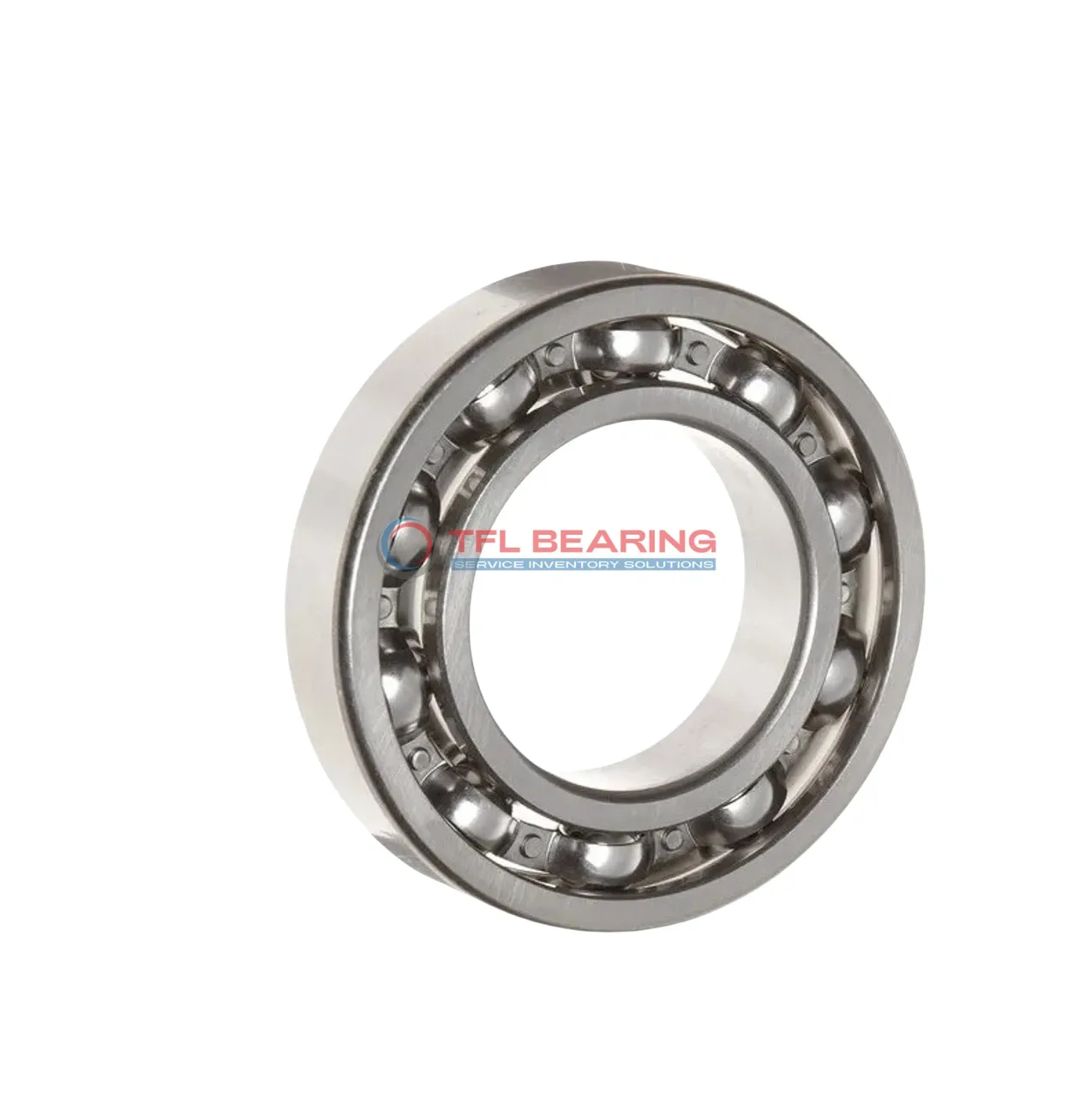

Single Row Deep Groove Ball Bearings 6060 M

Single Row Deep Groove Ball Bearings 6060 M

The 6060 M is a single row deep groove ball bearing with a 300mm bore and 460mm outer diameter, crafted from sturdy chrome steel for long-lasting performance. It handles radial loads up to 80482 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability under heavy use. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery or heavy equipment where radial loads are common.

Weighing 44kg, it’s built for robust applications. Compliant with RoHS and REACH standards, ensuring safe and reliable operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6060 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 74 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 80482 lbf
  • Static Radial Load 112404 lbf
  • Max Speed 2400 rpm
  • Weight 44000 g
  • price（$） 1369.125
Single Row Deep Groove Ball Bearings 6060 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6060 M Bearing

6060 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 80,482 lbf, ensuring reliable performance in heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 2,400 rpm, it balances durability and efficiency in demanding conditions.

6060 M Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its open design simplifies maintenance, making it a practical choice for various industrial uses.

The precision-engineered dimensions of 6060 M Bearing ensure a perfect fit for radial load applications.
Its robust construction and high load capacity make it suitable for long-term use in challenging environments.

Application

Industrial Uses of 6060 M Bearing
The 6060 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its radial load capacity ensures reliable performance.
Its open design and P6 tolerance make it suitable for precision applications, while the chrome steel construction provides durability in demanding environments.

Where Is 6060 M Bearing Used?
You’ll often find the 6060 M Bearing in wind turbines and large gearboxes, where its high dynamic radial load rating handles continuous operation smoothly.
The stainless steel cage adds longevity, making it a dependable choice for equipment that runs for extended periods.

Built for Heavy-Duty Use: 6060 M Bearing
The 6060 M Bearing excels in mining equipment and construction machinery, thanks to its robust design and ability to handle significant radial loads.
Its wide temperature range also makes it adaptable to various working conditions, from cold environments to moderately high heat.

Automotive vs Aerospace: Applications of 6060 M Bearing
In automotive applications, the 6060 M Bearing supports large drivetrain components, offering stability under heavy loads.
For aerospace, its precision and reliability make it suitable for auxiliary systems, though its size limits use in smaller aircraft components.

Key Fields for 6060 M Bearing
The 6060 M Bearing is a go-to for industrial fans and blowers, where its balance of load capacity and speed rating ensures efficient operation.
Its metric dimensions and compatibility with SKF equivalents make it a versatile option for global machinery designs.
