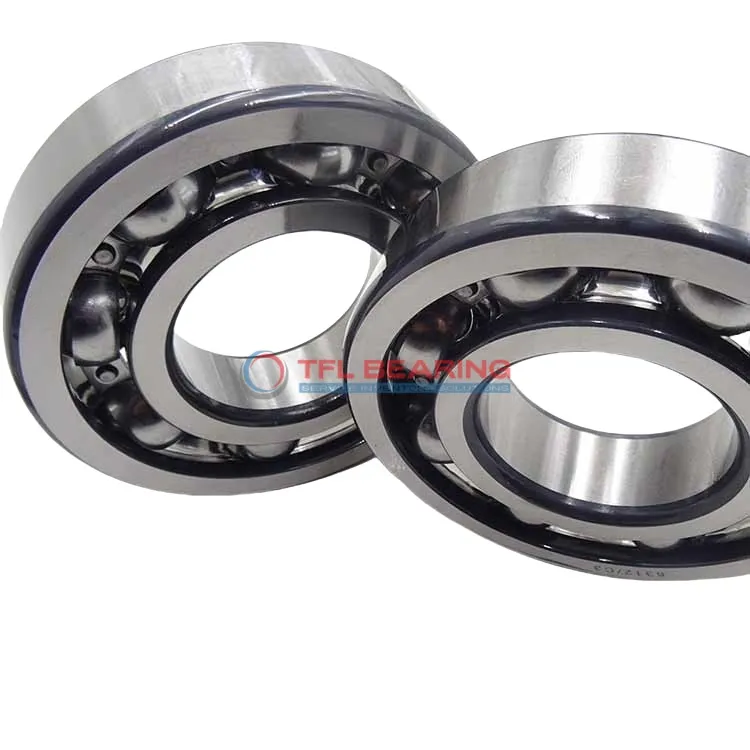

Single Row Deep Groove Ball Bearings 6056 M

Single Row Deep Groove Ball Bearings 6056 M

The 6056 M is a single-row deep groove ball bearing with a 280mm bore and 420mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 67892 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 120°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for heavy-duty applications like industrial machinery or large equipment where radial load capacity is key.

Weighing 30.8kg, it’s built to handle demanding environments while complying with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6056 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 280 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 420 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 65 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 67892 lbf
  • Static Radial Load 91048 lbf
  • Max Speed 2600 rpm
  • Weight 30.8 kg
  • price（$） 928.305
Single Row Deep Groove Ball Bearings 6056 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6056 M Bearing

6056 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 67,892 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 2,600 rpm, it balances performance and durability.

6056 M Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its precision P6 tolerance class ensures reliable performance in demanding conditions.

Application

Industrial Uses of 6056 M Bearing
The 6056 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads.
Its open seal type allows for easy lubrication, ensuring smooth operation even in demanding environments.

Where Is 6056 M Bearing Used?
You’ll often find the 6056 M Bearing in wind turbines, where its high load capacity and reliability are essential for long-term performance.
The chrome steel construction also makes it suitable for applications requiring resistance to wear and corrosion.

Built for Heavy-Duty Use: 6056 M Bearing
In mining equipment, the 6056 M Bearing excels due to its ability to withstand harsh conditions and heavy loads.
The stainless steel cage adds durability, making it a dependable choice for continuous operation.

Automotive vs Aerospace: Applications of 6056 M Bearing
While the 6056 M Bearing isn’t typically used in aerospace, it’s a solid choice for automotive applications like large truck transmissions.
Its metric sizing and high static radial load capacity make it versatile for various heavy vehicle needs.

Perfect Fit for Automation: 6056 M Bearing
In automated production lines, the 6056 M Bearing supports conveyor systems with its smooth radial load handling.
The P6 tolerance class ensures precision, which is crucial for maintaining consistent performance in automated settings.
