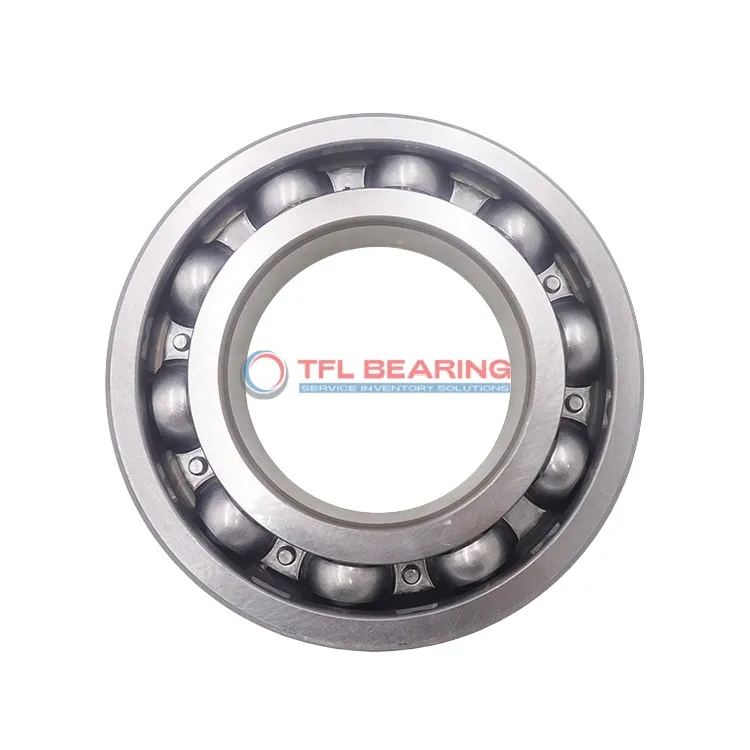

Single Row Deep Groove Ball Bearings 6026

Single Row Deep Groove Ball Bearings 6026

The 6026 is a single-row deep groove ball bearing with a 130mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 25179 lbf and runs smoothly at speeds up to 4300 RPM.

Its open design simplifies maintenance, while the P6 tolerance ensures precise performance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for machinery like pumps or electric motors where radial loads are common.

Weighing 3280g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6026
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 25179 lbf
  • Static Radial Load 22481 lbf
  • Max Speed 4300 rpm
  • Weight 3280 g
  • price（$） 73.026
Single Row Deep Groove Ball Bearings 6026 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6026 Bearing

6026 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 25179 lbf, making it suitable for demanding applications.

The single row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 4,300 rpm, it balances performance and durability.

6026 Bearing operates in temperatures from -30° to 120°C, adapting to various working conditions.
Its P6 tolerance class provides precision and reliability for industrial use.

Application

Industrial Uses of 6026 Bearing
The 6026 Bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its deep groove design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

What Makes 6026 Bearing a Preferred Choice?
With a 130 mm bore and 200 mm outer diameter, the 6026 Bearing fits well in large-scale equipment such as conveyor systems. Its P6 tolerance class offers precision for smooth operation.

Built for Heavy-Duty Use: 6026 Bearing
In automotive applications, the 6026 Bearing supports components like wheel hubs, thanks to its high static radial load capacity. The open seal design allows for easy lubrication maintenance.

Automotive vs Industrial: Applications of 6026 Bearing
While the 6026 Bearing excels in automotive wheel hubs, it’s equally effective in industrial gearboxes. Its temperature range of -30° to 120°C ensures reliability in varied conditions.

Perfect Fit for Automation: 6026 Bearing
The 6026 Bearing is ideal for robotic arms and automated assembly lines, where its high dynamic radial load capacity ensures consistent performance. The metric sizing makes it versatile for global machinery standards.
