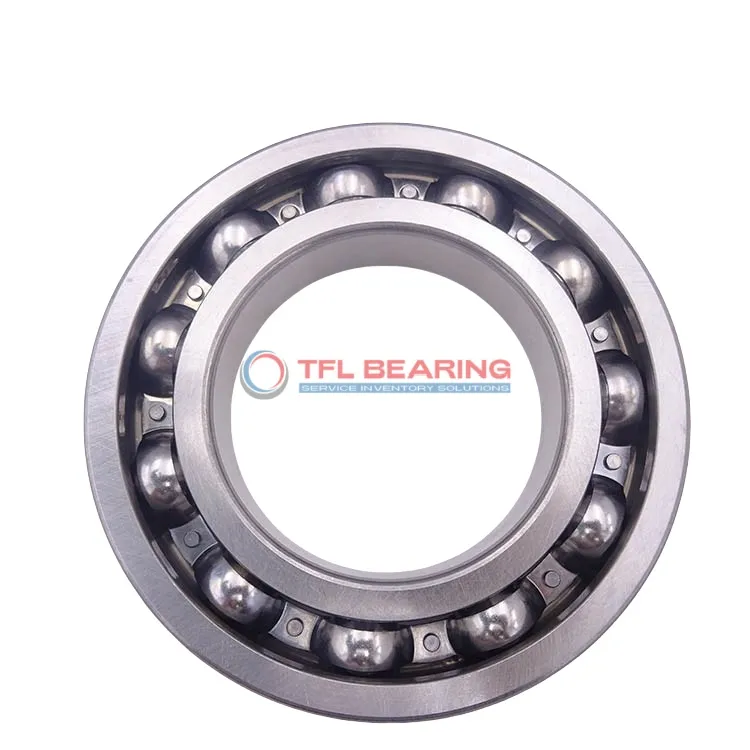

Single Row Deep Groove Ball Bearings 6022

Single Row Deep Groove Ball Bearings 6022

The 6022 is a single-row deep groove ball bearing with a 110mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 19154 lbf and runs smoothly at speeds up to 5000 RPM.

Its open design allows for easy lubrication, while the precision P6 tolerance ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1970g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6022
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 19154 lbf
  • Static Radial Load 16523 lbf
  • Max Speed 5000 rpm
  • Weight 1970 g
  • price（$） 42.552
Single Row Deep Groove Ball Bearings 6022 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6022 Bearing

6022 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 19154 lbf, making it suitable for demanding applications.
The single-row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 5,000 rpm, it balances performance and durability in various conditions.

How Does 6022 Bearing Reduce Friction?

6022 Bearing’s deep groove design minimises friction, allowing for smoother rotation under radial loads.
The chrome steel construction enhances durability while maintaining low operational resistance.
Its precision engineering ensures consistent performance even at high speeds.
This makes it a reliable choice for applications requiring efficiency and longevity.

Engineered for Precision: 6022 Bearing

6022 Bearing features tight tolerances, with bore and outer diameter tolerances ensuring precise fit.
The P6 tolerance class guarantees high accuracy for applications needing meticulous alignment.
Its robust construction handles static radial loads up to 16523 lbf without compromising performance.
The design is optimised for stability, making it ideal for precision machinery.

Why Choose 6022 Bearing for High-Temperature Applications?

6022 Bearing operates effectively in temperatures ranging from -30° to 120 °C.
The chrome steel material maintains its structural integrity even under thermal stress.
This makes it suitable for environments with fluctuating or elevated temperatures.
Its reliable performance ensures minimal maintenance in challenging conditions.

Structural Advantages of 6022 Bearing

6022 Bearing’s single-row deep groove design provides excellent radial load capacity.
The chrome steel components ensure long-lasting performance with minimal wear.
Its open seal type allows for easy inspection and maintenance when required.
The bearing’s construction is tailored for both efficiency and durability in various applications.

Application

Industrial Uses of 6022 Bearing
6022 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The chrome steel construction offers durability in demanding environments.

Where Is 6022 Bearing Used?
You’ll often find 6022 Bearing in conveyor systems and gearboxes, thanks to its reliable performance under radial loads. Its metric sizing makes it a versatile choice for various equipment.

Built for Heavy-Duty Use: 6022 Bearing
6022 Bearing handles high radial loads in applications like agricultural machinery and construction equipment. The open design allows for easy lubrication and maintenance.

Automotive vs Industrial: Applications of 6022 Bearing
In automotive systems, 6022 Bearing supports components like alternators and fans, while in industrial settings, it excels in machinery requiring consistent radial load handling. The temperature range ensures performance in diverse conditions.
