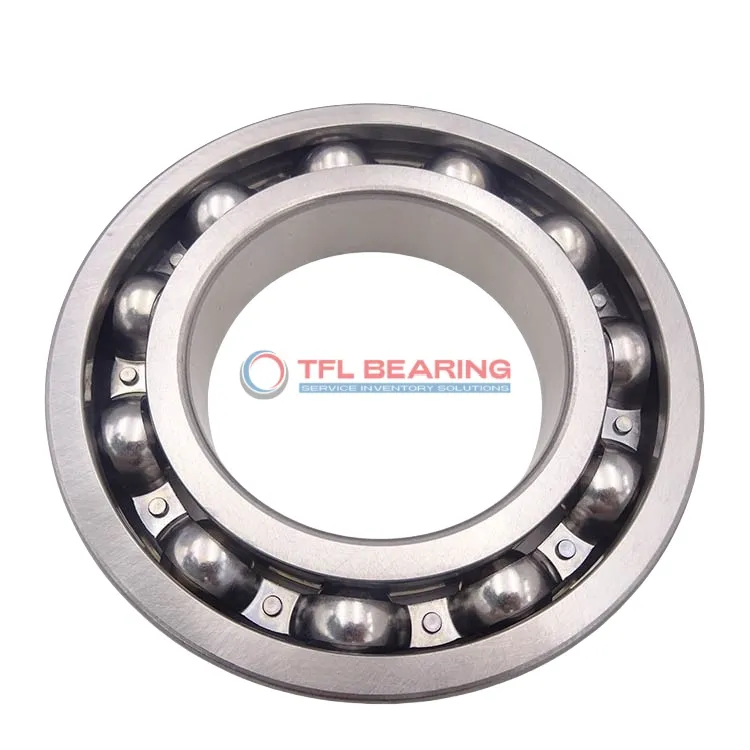

Single Row Deep Groove Ball Bearings 6021

Single Row Deep Groove Ball Bearings 6021

The 6021 is a single-row deep groove ball bearing with a 105mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16254 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for radial load applications like electric motors or pumps.

Weighing 1560g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6021
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 105 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 26 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 16254 lbf
  • Static Radial Load 14792 lbf
  • Max Speed 4000 rpm
  • Weight 1560 g
  • price（$） 55.44
Single Row Deep Groove Ball Bearings 6021 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6021 Bearing

6021 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16254 lbf, making it suitable for demanding applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 4,000 rpm, it balances performance and durability.

6021 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 6021 Bearing
6021 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in demanding environments.

What Makes 6021 Bearing a Preferred Choice?
In automotive applications, 6021 Bearing fits well in wheel hubs and transmission systems due to its durable chrome steel construction. Its ABEC-1 tolerance provides reliable performance without over-engineering for standard vehicles.

Perfect Fit for Automation: 6021 Bearing
For robotic arms and conveyor systems, 6021 Bearing offers a balance of load capacity and speed tolerance. The stainless steel cage prevents corrosion in humid or washdown environments.

Medical vs Industrial: Where 6021 Bearing Excels
While 6021 Bearing handles industrial gearboxes reliably, its clean operation also suits medical centrifuges. The metric sizing ensures compatibility with European equipment standards.

Where to Use 6021 Bearing
In household appliances like washing machines, 6021 Bearing provides quiet rotation at moderate speeds. Its 26mm width fits compact spaces while maintaining radial load stability.
