Single Row Deep Groove Ball Bearings 6021-2RS1

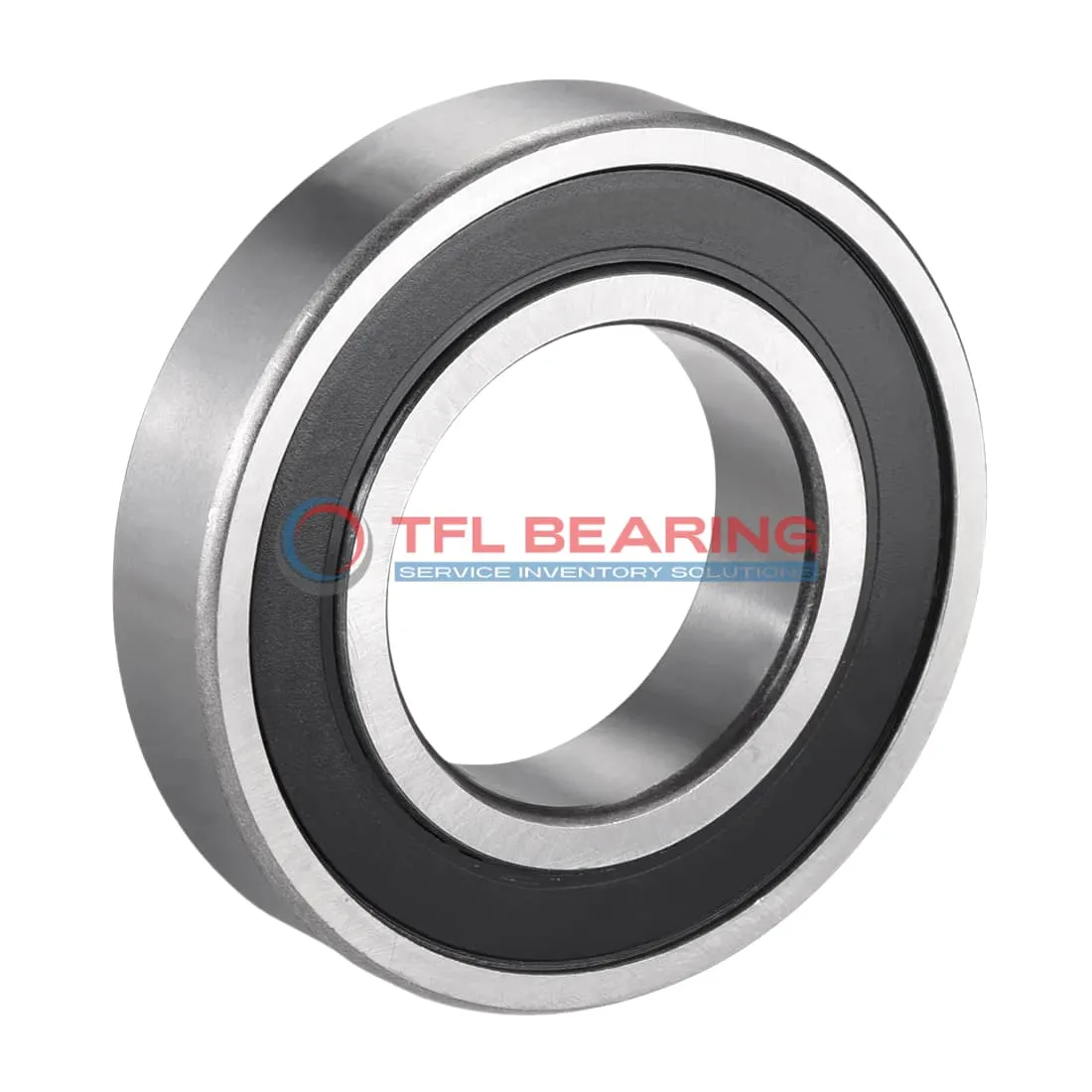

Single Row Deep Groove Ball Bearings 6021-2RS1

The 6021-2RS1 is a single-row deep groove ball bearing with a 105mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 17108 lbf and operates smoothly at speeds up to 2400 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance for busy environments. The stainless steel cage adds durability, ensuring reliable performance over time.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial settings. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing 1.64kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most applications. Ideal for machinery where radial loads and sealed protection are needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6021-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 105 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 17108 lbf
  • Static Radial Load 14725 lbf
  • Max Speed 2400 rpm
  • Weight 1.64 kg
  • price（$） 63.423
Single Row Deep Groove Ball Bearings 6021-2RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6021-2RS1 Bearing

6021-2RS1 Bearing is designed for radial loads, with a dynamic radial load capacity of 17108 lbf for reliable performance.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the stainless steel cage maintains alignment.
With a maximum speed of 2,400 rpm, it balances efficiency and longevity.

6021-2RS1 Bearing operates in temperatures from -30° to 120°C, making it versatile for different applications.
Its grease lubrication reduces maintenance needs, saving time and effort.

The P6 tolerance class ensures precision, ideal for demanding tasks.
Its compact size (105 mm×160 mm×26 mm) fits well in space-constrained installations.

Application

Industrial Uses of 6021-2RS1 Bearing
6021-2RS1 Bearing is commonly used in heavy machinery like pumps and compressors, where its sealed design protects against dust and debris. The chrome steel construction ensures durability in demanding industrial environments.

Where Is 6021-2RS1 Bearing Used?
In automotive applications, 6021-2RS1 Bearing fits well in wheel hubs and transmissions, providing reliable radial load support. Its grease lubrication helps maintain smooth operation over long periods.

Built for Heavy-Duty Use: 6021-2RS1 Bearing
For automation systems, 6021-2RS1 Bearing works efficiently in robotic arms and conveyor belts. The stainless steel cage adds extra resistance to wear, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 6021-2RS1 Bearing
In automotive settings, 6021-2RS1 Bearing handles radial loads in engines and gearboxes. For aerospace, its precision and temperature tolerance make it useful in auxiliary equipment.

Key Fields for 6021-2RS1 Bearing
6021-2RS1 Bearing is ideal for household appliances like washing machines, where its sealed design prevents moisture damage. The metric sizing ensures compatibility with various European models.
