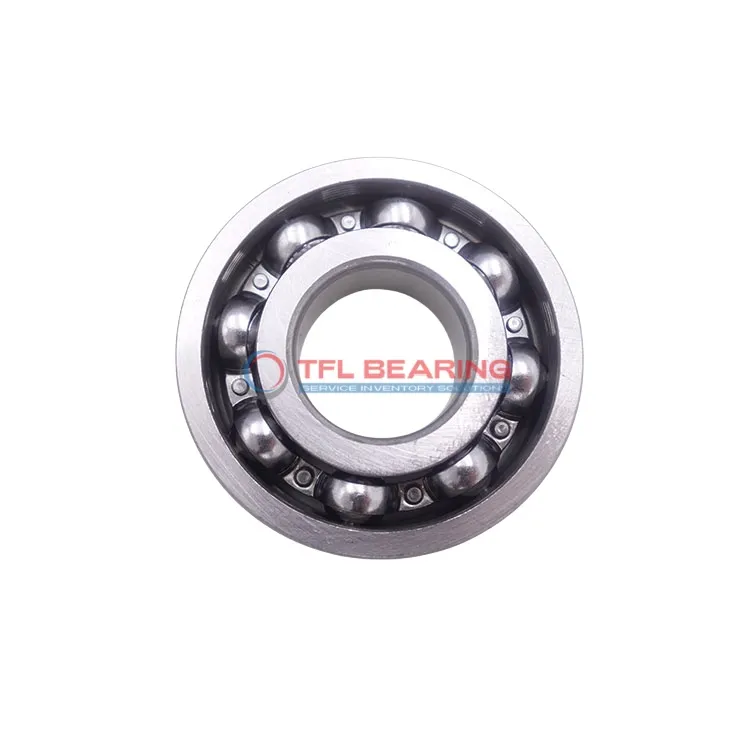

Single Row Deep Groove Ball Bearings 6020

Single Row Deep Groove Ball Bearings 6020

The 6020 is a single-row deep groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13533 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery like pumps or electric motors where radial loads are common.

Weighing 1250g, it balances strength with manageable size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 13533 lbf
  • Static Radial Load 12185 lbf
  • Max Speed 4300 rpm
  • Weight 1250 g
  • price（$） 36.36
Single Row Deep Groove Ball Bearings 6020 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6020 Bearing

6020 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13533 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 4,300 rpm, it delivers consistent performance under stress.

6020 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication, enhancing longevity and smooth operation.

The ABEC-1 tolerance class ensures precision, making it suitable for general industrial use.
Weighing 1250 g, it balances durability and ease of handling.

Application

Industrial Uses of 6020 Bearing
The 6020 Bearing is commonly used in industrial machinery like pumps and electric motors, where its single-row design handles radial loads efficiently. Its open seal type simplifies lubrication, making maintenance straightforward in dusty environments.

What Makes 6020 Bearing a Preferred Choice?
With a chrome steel construction, 6020 Bearing offers durability in automotive applications such as wheel hubs and transmissions. The ABEC-1 tolerance ensures reliable performance without overcomplicating the assembly process.

Perfect Fit for Automation: 6020 Bearing
In robotic arms and conveyor systems, 6020 Bearing provides smooth rotation under moderate speeds. Its 100 mm bore size fits standard shafts, while the stainless steel cage resists wear in continuous operation.

Medical vs Industrial: Where 6020 Bearing Excels
While 6020 Bearing isn’t typically used in medical devices, it shines in industrial gearboxes and compressors. The metric dimensions make it interchangeable with major brands like SKF, reducing downtime during replacements.

Where to Use 6020 Bearing
For household appliances like washing machines, 6020 Bearing balances cost and performance. The temperature range of -30° to 110°C covers most domestic needs, and the 13533 lbf dynamic load rating handles typical vibrations well.
