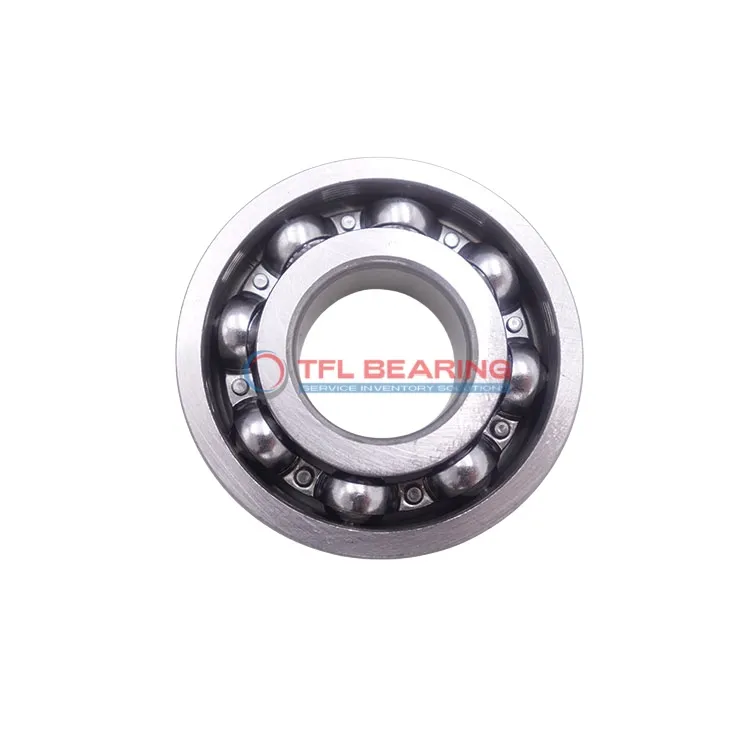

Single Row Deep Groove Ball Bearings 6020/W64

Single Row Deep Groove Ball Bearings 6020/W64

The 6020/W64 is a single-row deep groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13533 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1250g, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13533 lbf
  • Static Radial Load 12185 lbf
  • Max Speed 4300 rpm
  • Weight 1250 g
  • price（$） 68.346
Single Row Deep Groove Ball Bearings 6020/W64 dimension drawing
Download DWG Download PDF

Features

How Does 6020/W64 Bearing Reduce Friction?

6020/W64 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while minimising friction during operation.

The solid oil lubrication system maintains consistent performance, reducing the need for frequent maintenance.
With a maximum speed of 4,300 rpm, it balances efficiency and reliability in various applications.

Designed to handle dynamic radial loads up to 13,533 lbf, 6020/W64 Bearing offers dependable performance.
Its ABEC 1 tolerance class ensures consistent operation, making it suitable for precision tasks.

Application

Industrial Uses of 6020/W64 Bearing
The 6020/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads effectively.
Its solid oil lubrication ensures long service life, even in continuous operation environments.

Where Is 6020/W64 Bearing Used?
You’ll often find the 6020/W64 Bearing in automotive applications such as wheel hubs and transmissions.
The chrome steel construction provides durability, while the open seal design allows for easy inspection and maintenance.

Built for Heavy-Duty Use: 6020/W64 Bearing
In automation systems, the 6020/W64 Bearing supports robotic arms and conveyor belts with reliable performance.
The ABEC 1 tolerance ensures smooth operation, making it suitable for precision tasks.

Automotive vs Industrial: Applications of 6020/W64 Bearing
The 6020/W64 Bearing works well in both automotive and general industrial settings due to its balanced load capacity.
Its temperature range of -30° to 120°C makes it versatile for various operating conditions.

Key Fields for 6020/W64 Bearing
For household appliances like washing machines, the 6020/W64 Bearing offers quiet and efficient operation.
The metric sizing ensures compatibility with a wide range of equipment, simplifying replacements.
