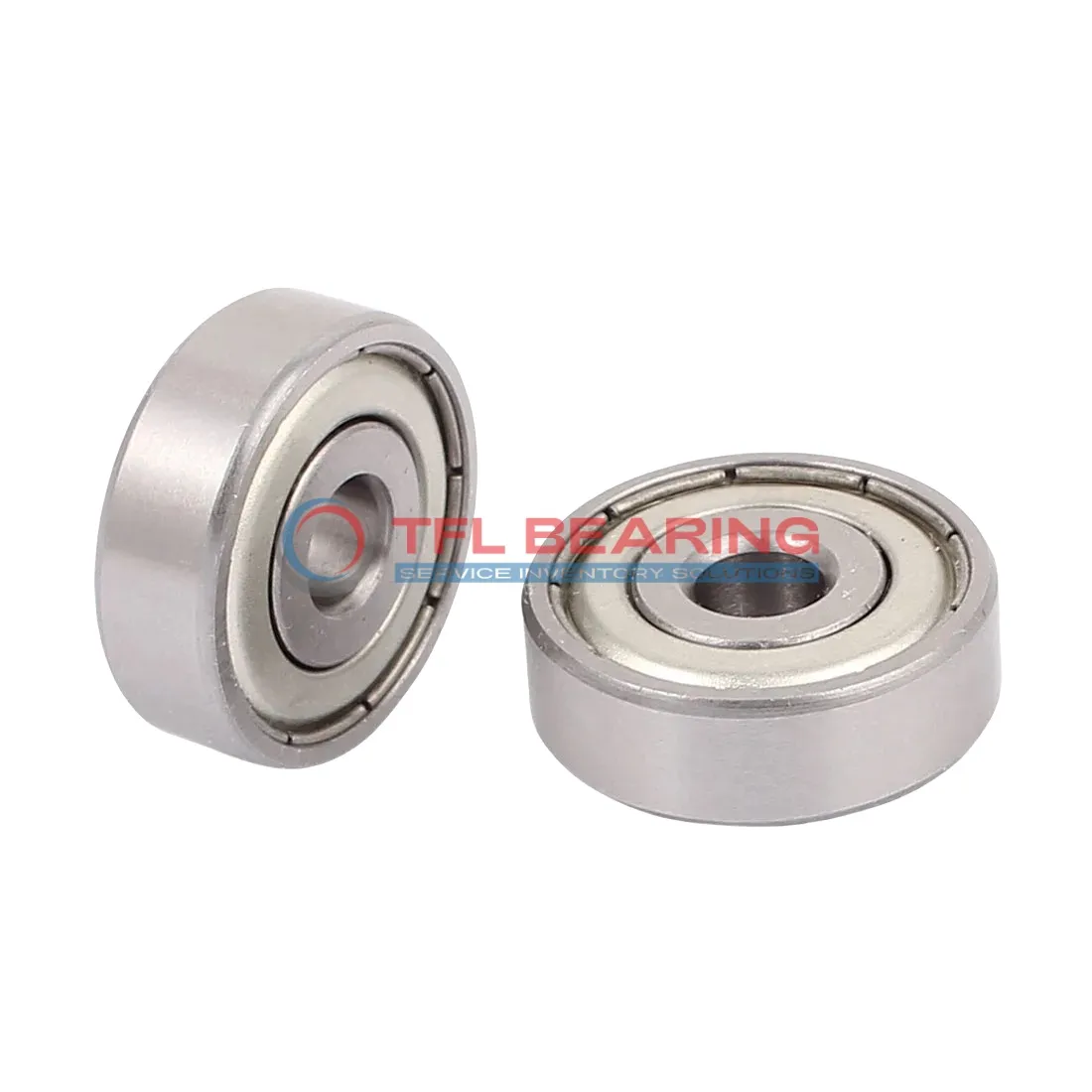

Single Row Deep Groove Ball Bearings 6020-2Z

Single Row Deep Groove Ball Bearings 6020-2Z

The 6020-2Z is a single-row deep groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 14320 lbf and runs smoothly at speeds up to 4500 RPM.

Shielded on both sides, it keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, while the P6 tolerance ensures precise operation.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial settings. Its compact 24mm width and 1.32kg weight make it easy to fit into tight spaces.

Ideal for applications like electric motors or pumps where reliable radial load support is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 14320 lbf
  • Static Radial Load 12140 lbf
  • Max Speed 4500 rpm
  • Weight 1.32 kg
  • price（$） 42.3
Single Row Deep Groove Ball Bearings 6020-2Z dimension drawing
Download DWG Download PDF

Features

Performance Features of 6020-2Z Bearing

6020-2Z Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 14320 lbf.
Its shielded design helps keep contaminants out while retaining lubrication for smoother operation.

The stainless steel cage ensures proper ball alignment, reducing friction and extending service life.
With a maximum speed of 4,500 rpm, it delivers reliable performance in various applications.

6020-2Z Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its P6 tolerance class provides precise performance for demanding radial load requirements.

Application

Industrial Uses of 6020-2Z Bearing
6020-2Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures it can handle radial loads with ease.

What Makes 6020-2Z Bearing a Preferred Choice?
In automotive applications, 6020-2Z Bearing works well in wheel hubs and transmissions due to its balanced load capacity. The grease lubrication reduces maintenance needs, making it a reliable option for long-term use.

Perfect Fit for Automation: 6020-2Z Bearing
For automated systems, 6020-2Z Bearing is ideal for robotic arms and conveyor belts, offering smooth operation. Its P6 tolerance class ensures precision in high-speed environments.

Medical vs Industrial: Where 6020-2Z Bearing Excels
In medical devices, 6020-2Z Bearing provides quiet performance for imaging equipment. Meanwhile, its durability makes it equally suitable for heavy industrial applications like gearboxes.

Where to Use 6020-2Z Bearing
6020-2Z Bearing fits well in household appliances like washing machines, thanks to its compact size and reliable performance. The stainless steel cage adds extra resistance to wear and tear.
