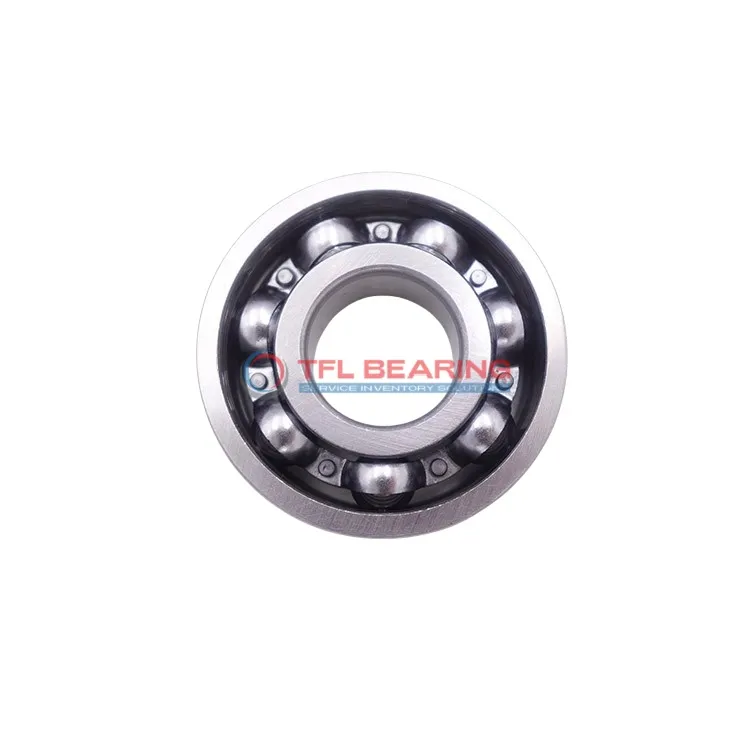

Single Row Deep Groove Ball Bearings 6017/C3W64

Single Row Deep Groove Ball Bearings 6017/C3W64

The 6017/C3W64 is a single-row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from robust chrome steel for durability. It supports radial loads up to 11128 lbf and operates smoothly at speeds up to 5000 RPM.

Designed with a C3 radial clearance, it offers flexibility in applications where thermal expansion is a factor. The solid oil lubrication ensures long service life with minimal maintenance.

This open-type bearing is interchangeable with SKF models, making it a practical choice for replacements. It performs reliably in temperatures ranging from -30°C to 120°C.

Ideal for industrial machinery or electric motors, its 22mm width and 899g weight provide a compact yet sturdy solution. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11128 lbf
  • Static Radial Load 9689 lbf
  • Max Speed 5000 rpm
  • Weight 899 g
Single Row Deep Groove Ball Bearings 6017/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017/C3W64 Bearing

6017/C3W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 11128 lbf, ensuring reliable performance in various applications.

The solid oil lubrication in 6017/C3W64 Bearing reduces maintenance needs and extends service life.
It operates smoothly within a temperature range of -30°C to 120°C, making it versatile for different environments.

With a maximum speed of 5,000 rpm, 6017/C3W64 Bearing balances efficiency and durability.
The C3 radial clearance provides optimal performance under varying thermal conditions.

Application

Industrial Uses of 6017/C3W64 Bearing
This bearing is commonly used in conveyor systems and electric motors, where its deep groove design handles radial loads efficiently. The C3 clearance allows for thermal expansion, making it suitable for varying operating conditions.

What Makes 6017/C3W64 Bearing a Preferred Choice?
In automotive applications, 6017/C3W64 Bearing fits well in wheel hubs and transmissions due to its solid oil lubrication. The chrome steel construction ensures durability even under continuous use.

Perfect Fit for Automation: 6017/C3W64 Bearing
For robotic arms and automated machinery, 6017/C3W64 Bearing offers smooth rotation and reliable performance. Its open design simplifies maintenance in high-speed environments.

Medical vs Industrial: Where 6017/C3W64 Bearing Excels
While 6017/C3W64 Bearing is robust enough for industrial pumps, its precision also suits medical imaging devices. The wide temperature range ensures consistent operation in different settings.

Light-Duty vs Heavy-Duty: Best Uses for 6017/C3W64 Bearing
From household appliances like washing machines to heavy machinery, 6017/C3W64 Bearing adapts well. Its balanced load capacity makes it versatile for various applications.
