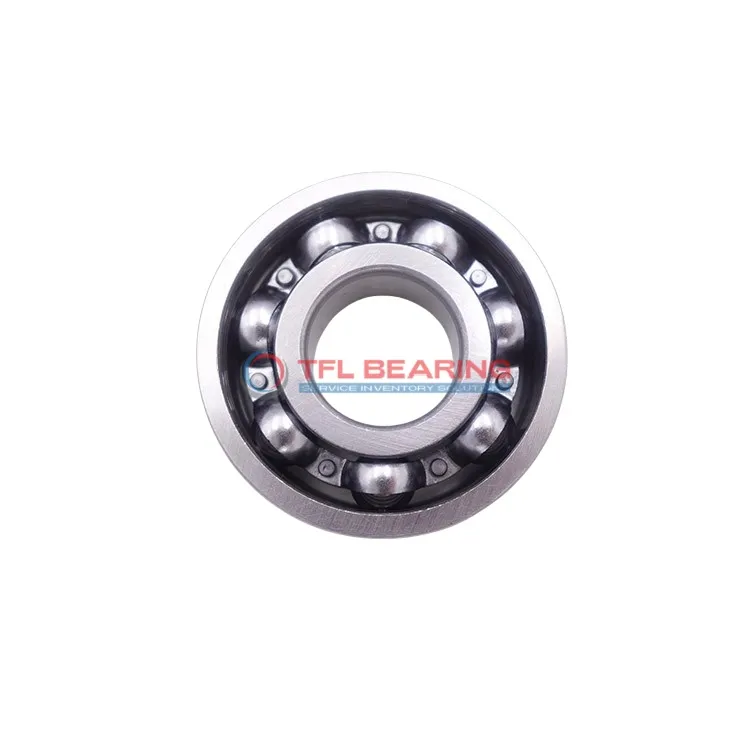

Single Row Deep Groove Ball Bearings 6017/C3VK504

Single Row Deep Groove Ball Bearings 6017/C3VK504

The 6017/C3VK504 is a single-row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 11128 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. This model is interchangeable with SKF bearings, offering a practical replacement option.

Weighing 899g, it’s a robust choice for industrial machinery, pumps, or electric motors where radial load support is key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017/C3VK504
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11128 lbf
  • Static Radial Load 9689 lbf
  • Max Speed 5000 rpm
  • Weight 899 g
Single Row Deep Groove Ball Bearings 6017/C3VK504 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017/C3VK504 Bearing

6017/C3VK504 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 11128 lbf.

Its single row deep groove design ensures smooth operation and efficient load distribution.

The C3 radial clearance allows for thermal expansion, making it suitable for varying temperatures.

With a maximum speed of 5,000 rpm, it provides reliable performance in various applications.

Application

Industrial Uses of 6017/C3VK504 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes 6017/C3VK504 Bearing a Preferred Choice?
Its chrome steel construction ensures durability in automotive applications such as wheel hubs and transmissions. The C3 clearance provides flexibility in high-temperature environments, making it reliable for long-term use.

Perfect Fit for Automation: 6017/C3VK504 Bearing
In robotic arms and conveyor systems, this bearing offers smooth rotation and low friction. The metric sizing ensures compatibility with a wide range of European and Asian equipment.

Medical vs Industrial: Where 6017/C3VK504 Bearing Excels
While it’s not typically used in medical devices, this bearing shines in industrial settings like gearboxes and compressors. Its robust design handles heavy loads without compromising performance.

Light-Duty vs Heavy-Duty: Best Uses for 6017/C3VK504 Bearing
For light-duty applications like small fans, it provides quiet operation and reliability. In heavy-duty scenarios such as agricultural machinery, its high load capacity ensures consistent performance.
