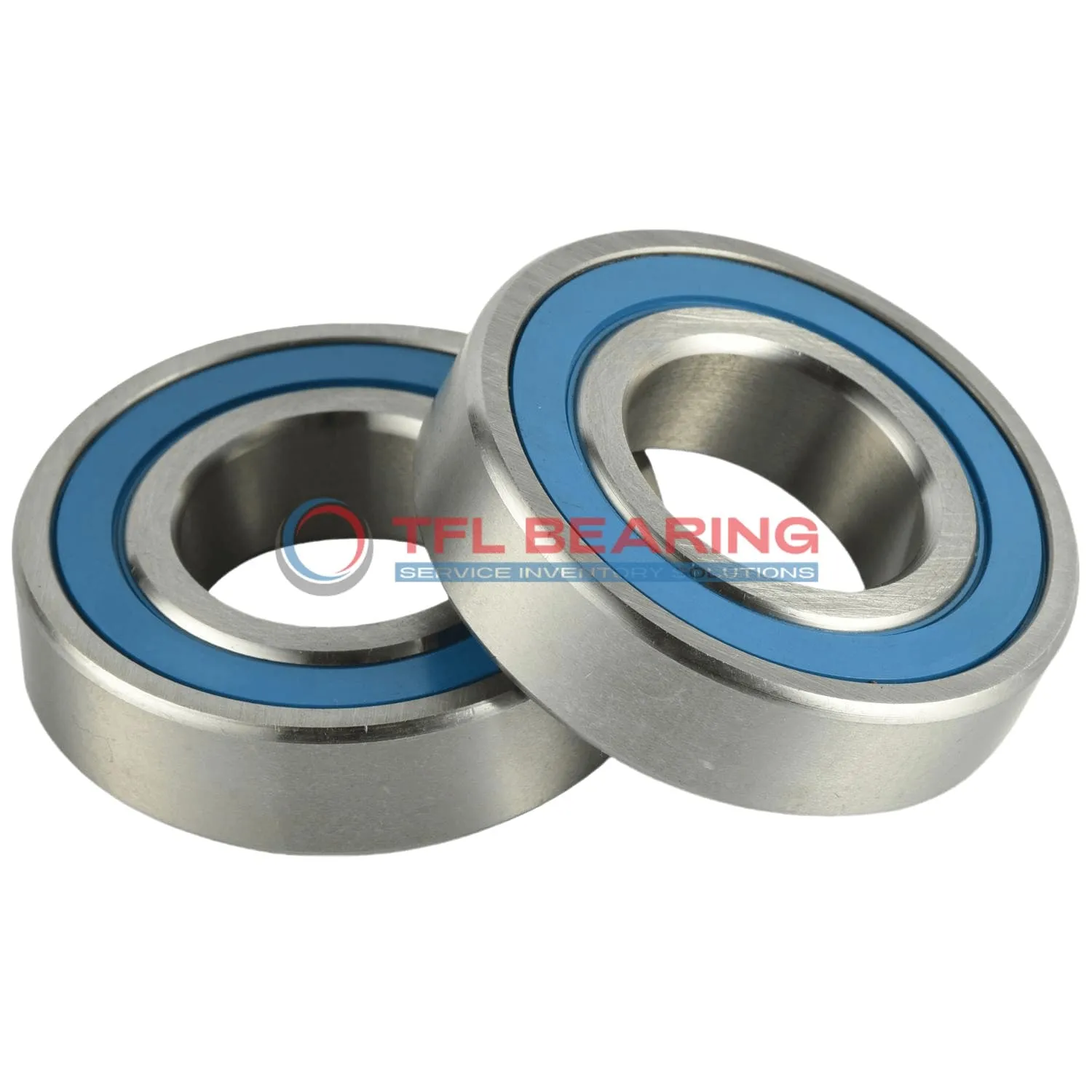

Single Row Deep Groove Ball Bearings 6306-2RS2/C5VT312

Single Row Deep Groove Ball Bearings 6306-2RS2/C5VT312

The 6306-2RS2/C5VT312 is a single-row deep groove ball bearing measuring 30mm by 72mm by 19mm, crafted from durable chrome steel. It handles radial loads up to 6002 lbf and spins smoothly at speeds up to 9600 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C5 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for electric motors, pumps, or industrial gearboxes where consistent radial load support is needed.

Weighing 346g, it’s a sturdy yet compact choice for machinery. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RS2/C5VT312
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C5
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g
Single Row Deep Groove Ball Bearings 6306-2RS2/C5VT312 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6306-2RS2/C5VT312 Bearing

6306-2RS2/C5VT312 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 6002 lbf.
Its sealed design protects against dust and moisture, making it suitable for various environments.

The C5 radial clearance ensures smooth operation, even under varying temperature conditions.
With a maximum speed of 9,600 rpm, it balances performance and durability for industrial applications.

6306-2RS2/C5VT312 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its chrome steel cage enhances stability, reducing wear and extending service life.

Application

Common Applications of 6306-2RS2/C5VT312 Bearing
6306-2RS2/C5VT312 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The C5 radial clearance ensures smooth operation even under varying loads.

In automotive applications, 6306-2RS2/C5VT312 Bearing fits well in wheel hubs and alternators, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, 6306-2RS2/C5VT312 Bearing provides reliable performance with minimal maintenance. The sealed design also helps extend its lifespan in dusty or humid environments.

Where Is 6306-2RS2/C5VT312 Bearing Used?
You’ll often find 6306-2RS2/C5VT312 Bearing in conveyor systems, where its radial load capacity handles continuous movement effortlessly. The sealed design is a bonus in dusty industrial settings.

In robotics, 6306-2RS2/C5VT312 Bearing supports joints and gears, ensuring precise movement. Its temperature range makes it suitable for both indoor and outdoor applications.

Built for Heavy-Duty Use: 6306-2RS2/C5VT312 Bearing
6306-2RS2/C5VT312 Bearing excels in agricultural equipment, like tractors, where dirt and moisture are common. The chrome steel construction resists wear even in tough conditions.

For small machinery like power tools, 6306-2RS2/C5VT312 Bearing offers a balance of strength and compact size. Its sealed design keeps lubrication in and debris out.

Automotive vs Industrial: Applications of 6306-2RS2/C5VT312 Bearing
In cars, 6306-2RS2/C5VT312 Bearing is often used in transmissions, where its radial load capacity is key. The sealed design also helps in dusty off-road conditions.

For factory equipment, 6306-2RS2/C5VT312 Bearing handles high-speed rotations in machines like grinders. Its C5 clearance ensures stability under heavy use.
