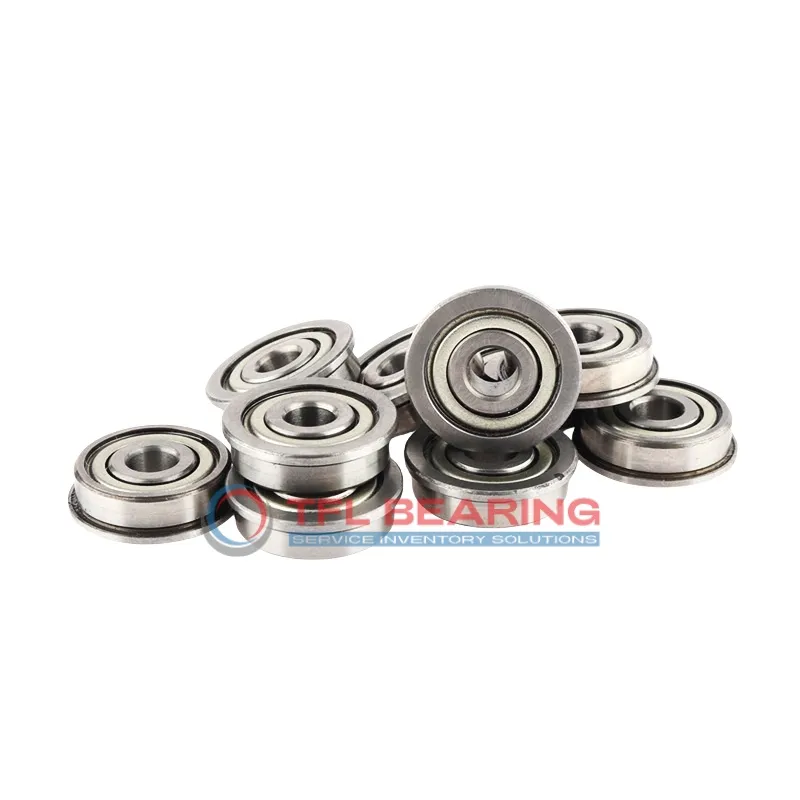

Standard Flanged Ball Bearings F6006zz

Standard Flanged Ball Bearings F6006zz

The F6006zz is a flanged ball bearing with a 30mm bore and 55mm outer diameter, measuring 13mm wide. Its chrome steel construction offers durability, while the shielded design keeps dirt out.

This bearing handles radial loads up to 2977 lbf and spins smoothly at speeds up to 15000 RPM. The stainless steel cage ensures stable performance, and grease lubrication makes maintenance simple.

The flange provides secure mounting, with a 58.25mm outer diameter and 3.25mm thickness. It works in temperatures from -30°C to 120°C, suitable for various environments.

Ideal for small machinery or electric motors where space is limited. Weighing just 0.12kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6006zz
  • Brand TFL
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.12 mm to 0
  • Flange Outer Dia 58.25 mm
  • Flange Thickness 3.25 mm
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2977 lbf
  • Static Radial Load 1868 lbf
  • Lubrication Grease
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.12 kg
  • Price（$） 3.9
Standard Flanged Ball Bearings F6006zz dimension drawing
Download DWG Download PDF

Features

How Does F6006zz Bearing Reduce Friction?

F6006zz Bearing features shielded design with chrome steel rings and balls, ensuring smooth operation and reduced friction.
Its dynamic radial load capacity of 2977 lbf makes it suitable for various radial load applications.

The stainless steel cage maintains ball alignment, enhancing durability and performance.
With a maximum speed of 15,000 rpm, it offers efficient and reliable service.

F6006zz Bearing operates in temperatures from -30° to 120°C, adapting to diverse environments.
Its grease lubrication ensures consistent performance with minimal maintenance.

Application

Practical Applications of F6006zz Bearing
F6006zz Bearing works well in conveyor systems, where its flanged design helps with easy mounting and alignment. The shielded seals keep out dust, making it suitable for factories with lots of debris.

Industrial Uses of F6006zz Bearing
You’ll often find F6006zz Bearing in electric motors, where its radial load capacity handles constant rotation smoothly. The grease lubrication ensures long service life even at high speeds.

Where Is F6006zz Bearing Used?
F6006zz Bearing fits nicely in small appliances like washing machines, thanks to its compact width. The chrome steel construction provides durability for daily household use.

Built for Versatility: F6006zz Bearing
F6006zz Bearing is a go-to choice for printer rollers, where precision matters. Its P6 tolerance class ensures reliable performance in office equipment.

Automotive vs Industrial: Applications of F6006zz Bearing
In cars, F6006zz Bearing supports auxiliary units like alternators, while in industry, it’s handy for light machinery. The metric sizing makes it compatible with various global standards.
