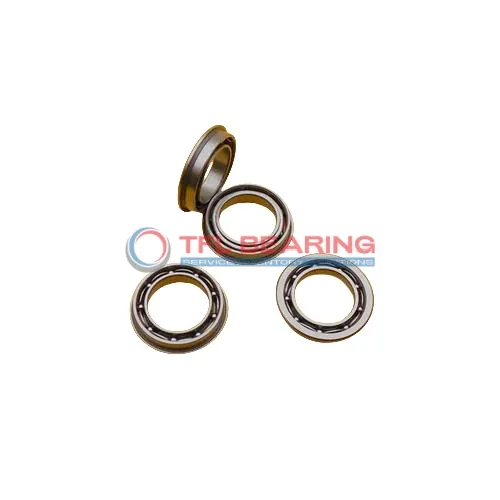

Flanged Deep Groove Ball Bearings D/W R144 R

Flanged Deep Groove Ball Bearings D/W R144 R

The D/W R144 R is a compact flanged deep groove ball bearing, measuring just 0.125″ in bore diameter and 0.25″ in outer diameter. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This bearing handles radial loads up to 37 lbf and can spin at impressive speeds of up to 100,000 RPM. Its open design allows for easy lubrication when needed.

The flange provides secure mounting, helping the bearing stay in place during operation. With a temperature range of -30°C to 120°C, it’s suitable for various environments.

Ideal for small precision instruments or dental tools where space is limited. Compliant with RoHS and REACH standards, it’s a reliable choice for sensitive applications.

Weighing only 0.0003kg, it’s remarkably lightweight yet durable for its tiny size. The bearing is interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R144 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.25"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.0937"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.29598"
  • Flange Thickness 0.02299"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 37 lbf
  • Static Radial Load 11 lbf
  • Max Speed 100000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0003 kg
  • Price（$） 1.2
Flanged Deep Groove Ball Bearings D/W R144 R dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R144 R Bearing for Precision Tasks?

D/W R144 R Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its compact size of 0.125″×0.29598″×0.0937″ makes it ideal for precision applications where space is limited.

The open design ensures easy lubrication access, while the flange provides secure mounting.
With a maximum speed of 100,000 rpm, it delivers smooth and reliable performance.

D/W R144 R Bearing’s single-row construction enhances radial load capacity, supporting up to 37 lbf dynamically.
Its tight tolerances ensure consistent operation in demanding environments.

Application

Where Is D/W R144 R Bearing Used?
D/W R144 R Bearing is commonly used in small industrial equipment, such as miniature motors and precision instruments, where its compact size and stainless steel construction are beneficial. The open design allows for easy lubrication, ensuring smooth operation in tight spaces.

In consumer electronics, D/W R144 R Bearing can be found in devices like small fans and printers, where its radial load capacity and durability are key. The inch sizing makes it compatible with various North American and UK-made appliances.

For automation systems, D/W R144 R Bearing supports lightweight robotic arms and 3D printers, providing reliable performance with minimal maintenance. The stainless steel components also resist corrosion, making it suitable for clean environments.

Medical devices like lab equipment often use D/W R144 R Bearing due to its precise tolerances and smooth rotation. The P0 tolerance class ensures consistent performance in sensitive applications.
