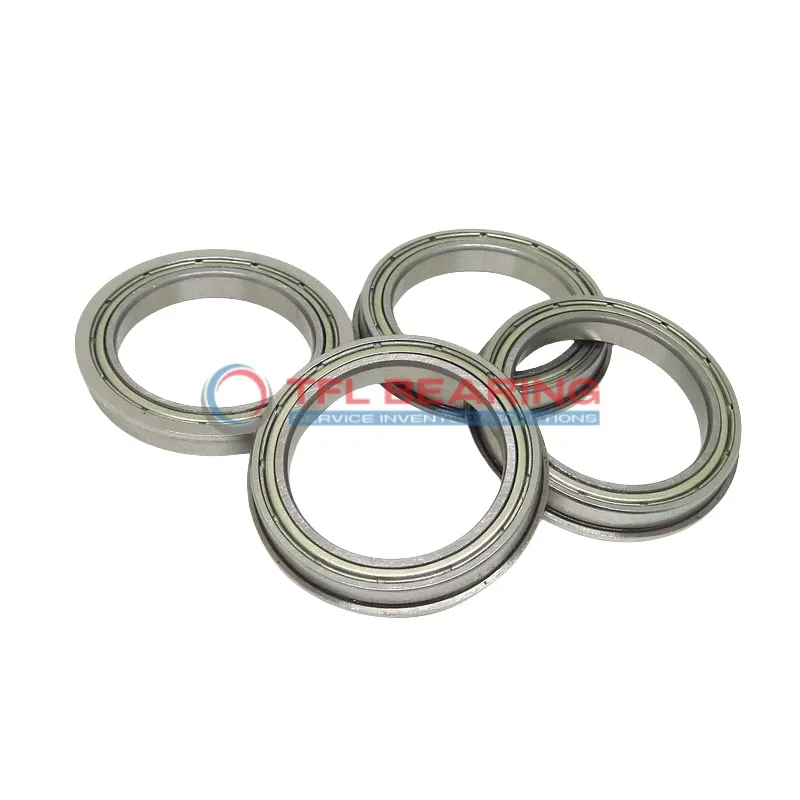

Flanged Deep Groove Ball Bearings D/W R133 R-2ZS

Flanged Deep Groove Ball Bearings D/W R133 R-2ZS

The D/W R133 R-2ZS is a compact flanged deep groove ball bearing, measuring just 0.0937″ in bore and 0.18748″ in outer diameter. Made entirely from stainless steel, it offers good corrosion resistance and durability.

This shielded bearing handles radial loads up to 18 lbf and can spin at speeds up to 95,000 RPM. Its grease lubrication ensures smooth operation with minimal maintenance.

The flange design helps keep the bearing securely in place during operation. With a temperature range of -30°C to 120°C, it’s suitable for various environments.

Ideal for small machinery or precision instruments where space is limited. Compliant with RoHS and REACH standards, it’s a reliable choice for replacement or OEM use.

Weighing only 0.000203kg, this lightweight bearing is easy to handle and install. Its P0 tolerance class ensures consistent performance in most applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R133 R-2ZS
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.0937"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.18748"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.0937"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.23402"
  • Flange Thickness 0.03098"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 18 lbf
  • Static Radial Load 6 lbf
  • Max Speed 95000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.000203 kg
  • Price（$） 1.2
Flanged Deep Groove Ball Bearings D/W R133 R-2ZS dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R133 R-2ZS Bearing for Precision Tasks?

D/W R133 R-2ZS Bearing features a stainless steel construction, ensuring resistance to corrosion and wear.
Its shielded design protects against contaminants, making it suitable for clean environments.

With a dynamic radial load capacity of 18 lbf, it handles light to moderate loads efficiently.
The bearing’s compact size and precision tolerances make it ideal for small, high-speed applications.

D/W R133 R-2ZS Bearing operates smoothly at speeds up to 95,000 rpm, offering reliable performance.
Its grease lubrication reduces maintenance needs, ensuring long-term functionality.

The flanged design provides easy installation and secure positioning in assemblies.
This makes D/W R133 R-2ZS Bearing a practical choice for various precision instruments.

Application

Common Applications of D/W R133 R-2ZS Bearing
D/W R133 R-2ZS Bearing works well in small electric motors, thanks to its compact inch sizing and shielded design. The stainless steel construction keeps it running smoothly in damp or dusty conditions.

In consumer electronics like printers, D/W R133 R-2ZS Bearing offers quiet operation and reliable performance. Its flange helps with easy mounting in tight spaces.

For light-duty automation systems, D/W R133 R-2ZS Bearing handles radial loads efficiently. The grease lubrication ensures long service life without frequent maintenance.

Medical devices benefit from D/W R133 R-2ZS Bearing’s precision and corrosion resistance. It’s often used in handheld instruments where space is limited.

In household appliances such as fans, D/W R133 R-2ZS Bearing provides steady rotation. The shielded seals protect against dust, making it a durable choice for daily use.
