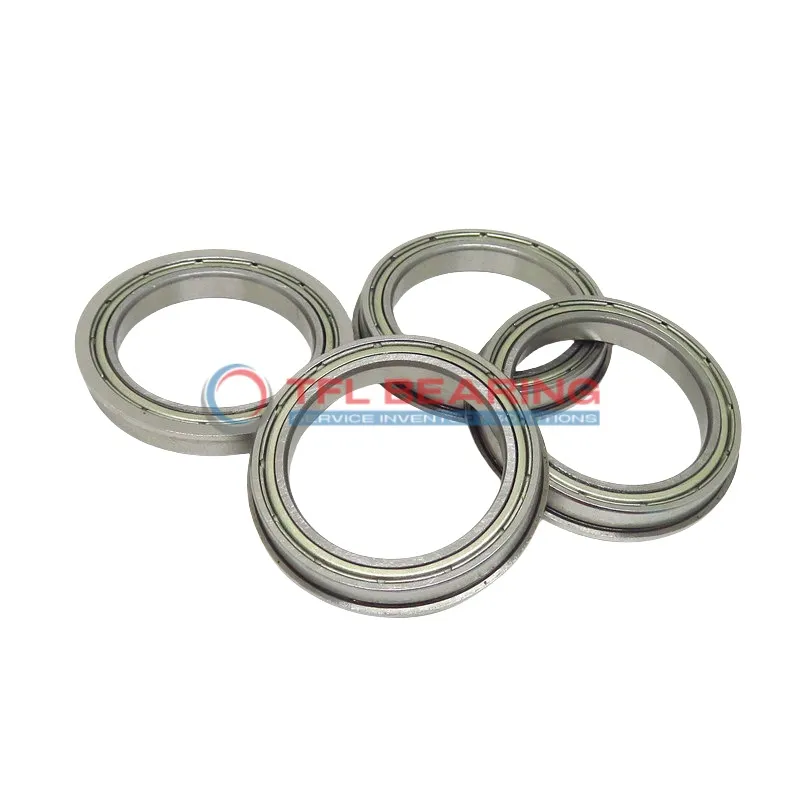

Flanged Deep Groove Ball Bearings D/W R1-5 R-2Z

Flanged Deep Groove Ball Bearings D/W R1-5 R-2Z

The D/W R1-5 R-2Z is a flanged deep groove ball bearing with a compact size of 0.0937″ bore and 0.35902″ outer diameter, made entirely from stainless steel for durability. It handles radial loads up to 70 lbf and spins smoothly at speeds up to 80,000 RPM.

Its shielded design keeps grease in and contaminants out, while the stainless steel cage ensures corrosion resistance. The flange adds stability, making it easier to mount securely in tight spaces.

This bearing works well in temperatures from -30°C to 120°C and comes pre-lubricated with grease for long service life. Ideal for small machinery or instruments where space is limited but reliability is key.

Weighing just 0.000817kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a practical choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R1-5 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.0937"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.31252"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.14059"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.35902"
  • Flange Thickness 0.03098"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 70 lbf
  • Static Radial Load 20 lbf
  • Max Speed 80000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.000817 kg
  • Price（$） 1.2
Flanged Deep Groove Ball Bearings D/W R1-5 R-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R1-5 R-2Z Bearing for Precision Tasks?

D/W R1-5 R-2Z Bearing features stainless steel rings and balls, ensuring smooth radial load handling.
Its shielded design protects against contaminants, making it ideal for precision applications.

With a dynamic radial load capacity of 70 lbf, it performs reliably in various conditions.
The grease lubrication ensures consistent operation, reducing the need for frequent maintenance.

D/W R1-5 R-2Z Bearing can reach speeds up to 80,000 rpm, balancing speed and durability.
Its compact size and flanged design make it easy to install in tight spaces.

Application

Common Applications of D/W R1-5 R-2Z Bearing
D/W R1-5 R-2Z Bearing is commonly used in small electric motors, where its shielded design keeps contaminants out while maintaining smooth rotation. The stainless steel construction makes it suitable for environments where corrosion resistance is important.

In automation systems, D/W R1-5 R-2Z Bearing fits well in compact robotic joints, providing reliable radial load support. Its inch sizing ensures compatibility with various North American machinery components.

For household appliances like electric fans, D/W R1-5 R-2Z Bearing offers quiet operation and long service life. The grease lubrication helps reduce maintenance needs, making it a hassle-free choice for everyday devices.

Where Is D/W R1-5 R-2Z Bearing Used?
You’ll often find D/W R1-5 R-2Z Bearing in precision instruments, where its small size and shielded design protect against dust. The high-speed capability makes it ideal for applications requiring consistent performance.

In medical devices, D/W R1-5 R-2Z Bearing works well in portable equipment due to its lightweight and corrosion-resistant materials. The stainless steel balls ensure smooth movement in sensitive applications.

Built for Heavy-Duty Use: D/W R1-5 R-2Z Bearing
D/W R1-5 R-2Z Bearing handles radial loads effectively in industrial gearboxes, where durability is key. The flange design provides additional stability, preventing misalignment during operation.

For 3D printers, D/W R1-5 R-2Z Bearing ensures precise movement in the print head assembly. Its compact dimensions and shielded seals make it a reliable component in high-accuracy machines.

Automotive vs Aerospace: Applications of D/W R1-5 R-2Z Bearing
In automotive systems, D/W R1-5 R-2Z Bearing is used in small actuators and sensors, benefiting from its corrosion resistance. The inch measurements align well with standard vehicle components.

For aerospace applications, D/W R1-5 R-2Z Bearing’s lightweight design and temperature tolerance make it suitable for avionics. The stainless steel materials meet industry standards for reliability in demanding conditions.
