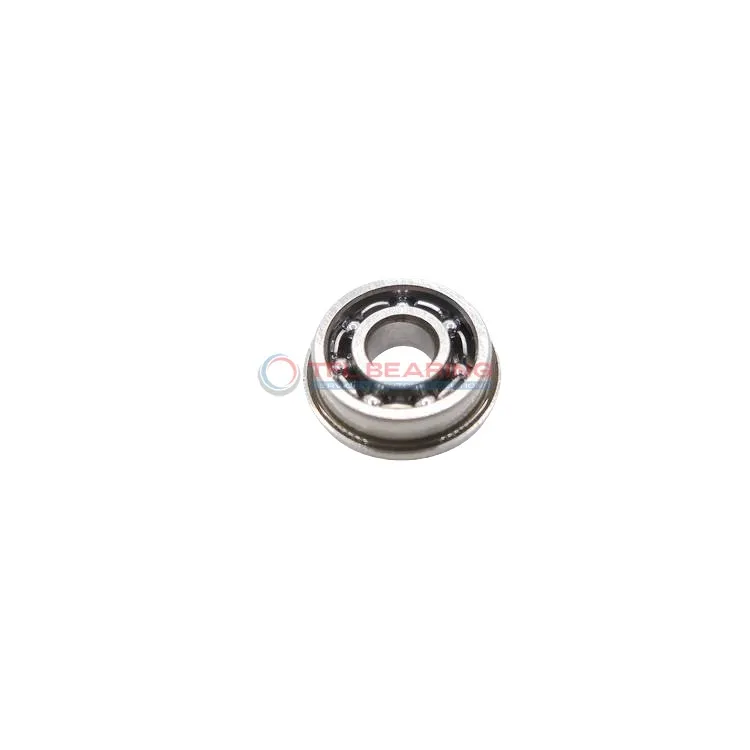

Flanged Deep Groove Ball Bearings D/W R09 R

Flanged Deep Groove Ball Bearings D/W R09 R

The D/W R09 R is a compact flanged deep groove ball bearing, measuring just 0.04″ in bore diameter and 0.125″ in outer diameter. Made entirely from stainless steel, it offers good corrosion resistance and durability.

This bearing handles radial loads up to 13 lbf and can spin at remarkable speeds up to 150,000 RPM. Its open design allows for easy lubrication when needed.

The integrated flange provides secure mounting, preventing slippage during operation. With a temperature range of -30°C to 120°C, it’s versatile for various environments.

Ideal for small precision instruments or miniature machinery where space is limited. Weighing a mere 0.0001kg, it’s incredibly lightweight yet reliable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R09 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.04"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.125"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.04689"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.17098"
  • Flange Thickness 0.01299"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 13 lbf
  • Static Radial Load 3 lbf
  • Max Speed 150000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0001 kg
  • Price（$） 1.2
Flanged Deep Groove Ball Bearings D/W R09 R dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R09 R Bearing for Precision Tasks?

D/W R09 R Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its compact size of 0.04″×0.17098″×0.04689″ makes it ideal for applications where space is limited.

The open design allows for easy lubrication, ensuring smooth operation even at high speeds of up to 150,000 rpm.
With a dynamic radial load capacity of 13 lbf, it provides reliable performance in precision instruments.

The flange outer dia of 0.17098″ ensures secure mounting, reducing the risk of misalignment during operation.
D/W R09 R Bearing’s stainless steel cage maintains ball alignment, enhancing durability and efficiency.

Application

Where Is D/W R09 R Bearing Used?
D/W R09 R Bearing is commonly used in small precision instruments, such as laboratory equipment and optical devices, where its compact size and stainless steel construction are ideal. The open design ensures easy cleaning, which is essential in sensitive environments.

In automation systems, D/W R09 R Bearing supports lightweight robotic arms and miniature actuators, providing smooth radial load handling. Its high-speed capability makes it suitable for applications requiring rapid, precise movements.

For consumer electronics, D/W R09 R Bearing can be found in devices like miniature fans and small printers, where reliability and quiet operation are key. The inch sizing ensures compatibility with various international components.

The flange design of D/W R09 R Bearing adds stability in applications where space is limited, such as in compact medical devices or tiny motors. Its stainless steel materials also offer good resistance to corrosion in humid conditions.
