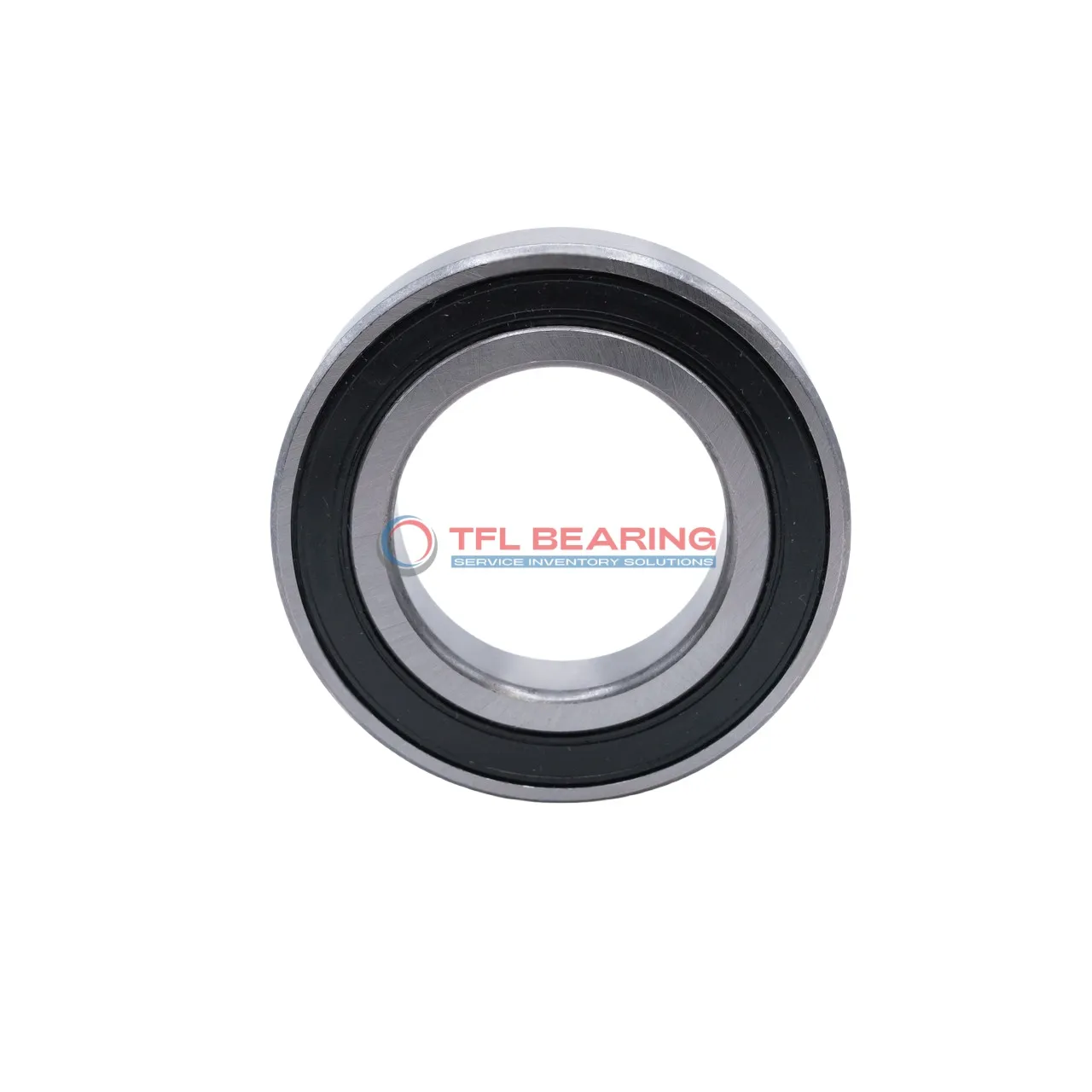

Single Row Deep Groove Ball Bearings 6009-2RS1

Single Row Deep Groove Ball Bearings 6009-2RS1

The 6009-2RS1 is a sealed single-row deep groove ball bearing with a 45mm bore and 75mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4968 lbf and runs smoothly at speeds up to 5600 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance, while the stainless steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Perfect for electric motors or pumps where reliable radial load support is needed.

Weighing 0.25kg, it’s a compact yet robust choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6009-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 4968 lbf
  • Static Radial Load 3282 lbf
  • Max Speed 5600 rpm
  • Weight 0.25 kg
  • price（$） 9.369
Single Row Deep Groove Ball Bearings 6009-2RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6009-2RS1 Bearing

6009-2RS1 Bearing is designed with sealed construction, protecting against contaminants and extending its service life.
The chrome steel rings and balls provide excellent resistance to wear, ensuring reliable radial load support.

With a dynamic radial load capacity of 4968 lbf, 6009-2RS1 Bearing performs well in demanding applications.
Its stainless steel cage maintains ball alignment, reducing friction and enhancing durability.

6009-2RS1 Bearing operates smoothly within a temperature range of -30° to 120°C.
The grease lubrication ensures consistent performance, even at high speeds up to 5,600 rpm.

Application

Common Applications of 6009-2RS1 Bearing
6009-2RS1 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6009-2RS1 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its grease lubrication reduces maintenance needs, making it a cost-effective choice.

For home appliances like washing machines, 6009-2RS1 Bearing offers smooth operation and long service life. The stainless steel cage adds extra resistance to wear, even with frequent use.

Automation systems benefit from 6009-2RS1 Bearing’s precision, particularly in conveyor belts and robotic arms. The P6 tolerance class ensures consistent performance in high-accuracy tasks.
