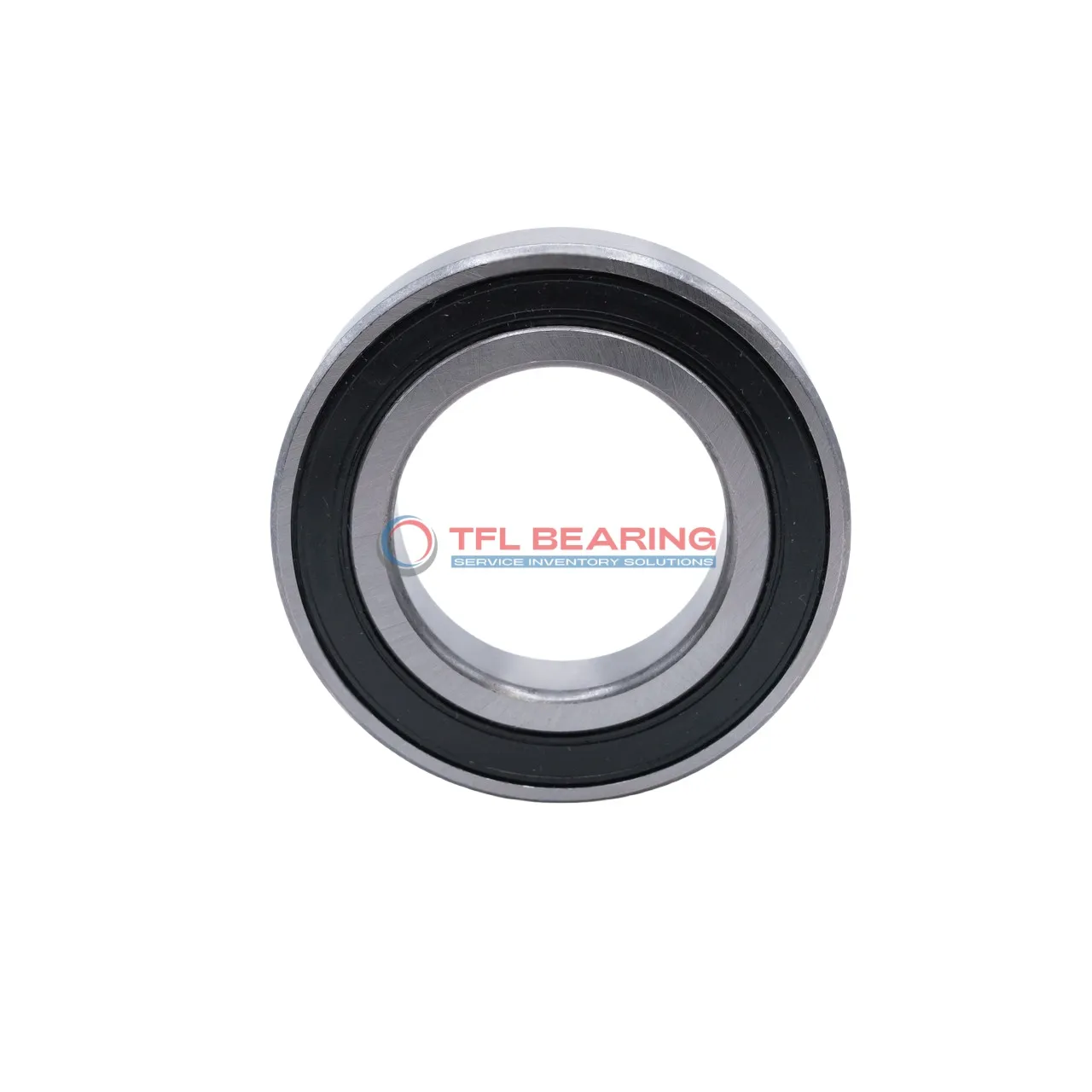

Single Row Deep Groove Ball Bearings 6009-2RS1/C3 GTN

Single Row Deep Groove Ball Bearings 6009-2RS1/C3 GTN

The 6009-2RS1/C3 GTN is a single-row deep groove ball bearing with a 45mm bore and 75mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4721 lbf and operates smoothly at speeds up to 9200 RPM.

Its sealed design keeps dirt out and grease in, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 245g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6009-2RS1/C3 GTN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4721 lbf
  • Static Radial Load 3395 lbf
  • Max Speed 9200 rpm
  • Weight 245 g
  • price（$） 10.071
Single Row Deep Groove Ball Bearings 6009-2RS1/C3 GTN dimension drawing
Download DWG Download PDF

Features

Why Choose 6009-2RS1/C3 GTN Bearing for Precision Tasks?

6009-2RS1/C3 GTN Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability, even under high radial loads up to 4721 lbf.
The nylon cage reduces friction and noise, making it suitable for quiet applications.
With a maximum speed of 9,200 rpm, it offers reliable operation in various conditions.

Application

Key Fields for 6009-2RS1/C3 GTN Bearing
6009-2RS1/C3 GTN Bearing works well in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. The C3 clearance ensures reliable performance even with thermal expansion.

In automotive applications, 6009-2RS1/C3 GTN Bearing is often used in wheel hubs and alternators due to its radial load capacity. The nylon cage reduces friction, making it quieter for vehicle use.

For home appliances, 6009-2RS1/C3 GTN Bearing fits nicely in washing machines and fans, where its durability handles constant rotation. The chrome steel construction also resists wear over time.

Automation systems benefit from 6009-2RS1/C3 GTN Bearing in conveyor belts and robotic arms, thanks to its smooth operation. The metric sizing makes it easy to integrate into various European and Asian equipment.
