Snap Ring Groove Ball Bearings 206-2ZNR

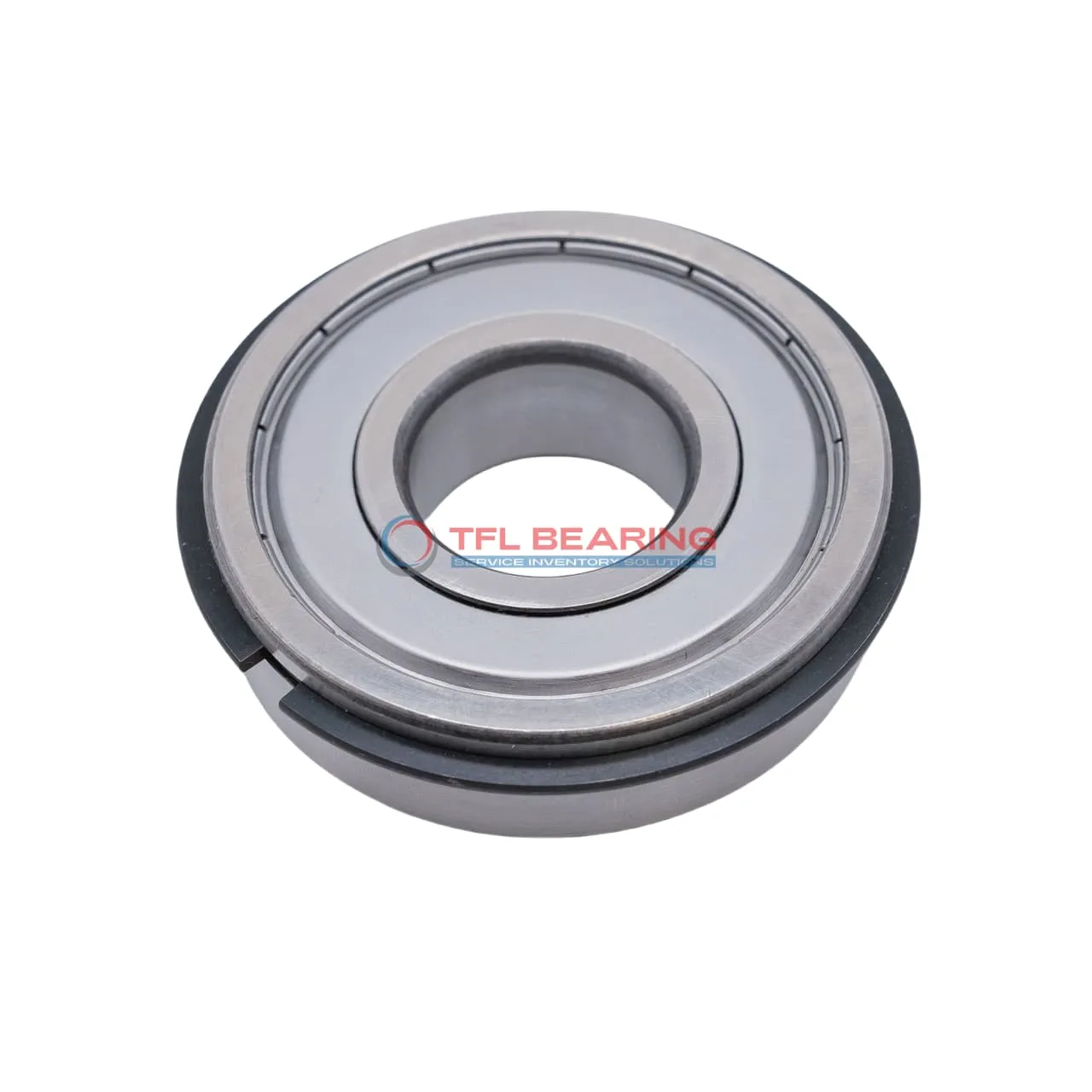

Snap Ring Groove Ball Bearings 206-2ZNR

The 206-2ZNR is a shielded snap ring groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4699 lbf and operates smoothly at speeds up to 9600 RPM.

Its snap ring design keeps it securely in place, while the stainless steel cage ensures durability. The shielded seals help keep grease in and contaminants out, extending its lifespan.

This bearing suits a range of temperatures, from -30°C to 120°C, and comes pre-lubricated for easy use. It’s a practical choice for applications like electric motors or small machinery where reliable radial load support is needed.

Weighing just 0.21kg, it’s lightweight yet robust. Compatible with SKF bearings, it’s a handy replacement option. Compliant with REACH standards for safe handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 206-2ZNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 67.7 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 4699 lbf
  • Static Radial Load 3664 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • REACH Compliant
  • Max Speed 9600 rpm
  • Weight 0.21 kg
  • Price（$） 9.5
Snap Ring Groove Ball Bearings 206-2ZNR dimension drawing
Download DWG Download PDF

Features

Why Choose 206-2ZNR Bearing for Precision Tasks?

206-2ZNR Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The snap ring groove on the outer ring provides secure positioning, simplifying installation in tight spaces.
With a dynamic radial load capacity of 4699 lbf, it handles demanding tasks with ease.

206-2ZNR Bearing operates efficiently at speeds up to 9,600 rpm, balancing performance and longevity.
Its stainless steel cage keeps the balls aligned, reducing friction and extending service life.

The temperature range of -30° to 120°C makes it suitable for various industrial environments.
Grease lubrication ensures consistent performance with minimal maintenance required.

Application

Industrial Uses of 206-2ZNR Bearing
206-2ZNR Bearing is commonly used in conveyor systems, where its shielded design keeps contaminants out while handling radial loads. The snap ring feature ensures secure mounting, reducing maintenance downtime.

What Makes 206-2ZNR Bearing a Preferred Choice?
In automotive applications like electric motors, 206-2ZNR Bearing offers reliable performance with its chrome steel construction. The grease lubrication ensures smooth operation even at higher speeds.

Built for Heavy-Duty Use: 206-2ZNR Bearing
206-2ZNR Bearing excels in industrial fans, where its stainless steel cage provides durability. The metric sizing makes it easy to integrate into various machinery designs.

Medical vs Industrial: Where 206-2ZNR Bearing Excels
206-2ZNR Bearing is suitable for medical devices like centrifuges, thanks to its precise tolerances. In industrial settings, it handles radial loads in pumps and compressors with ease.

Perfect Fit for Automation: 206-2ZNR Bearing
206-2ZNR Bearing works well in robotic arms, where its snap ring ensures stability during movement. The shielded seals protect against dust in automated production lines.
