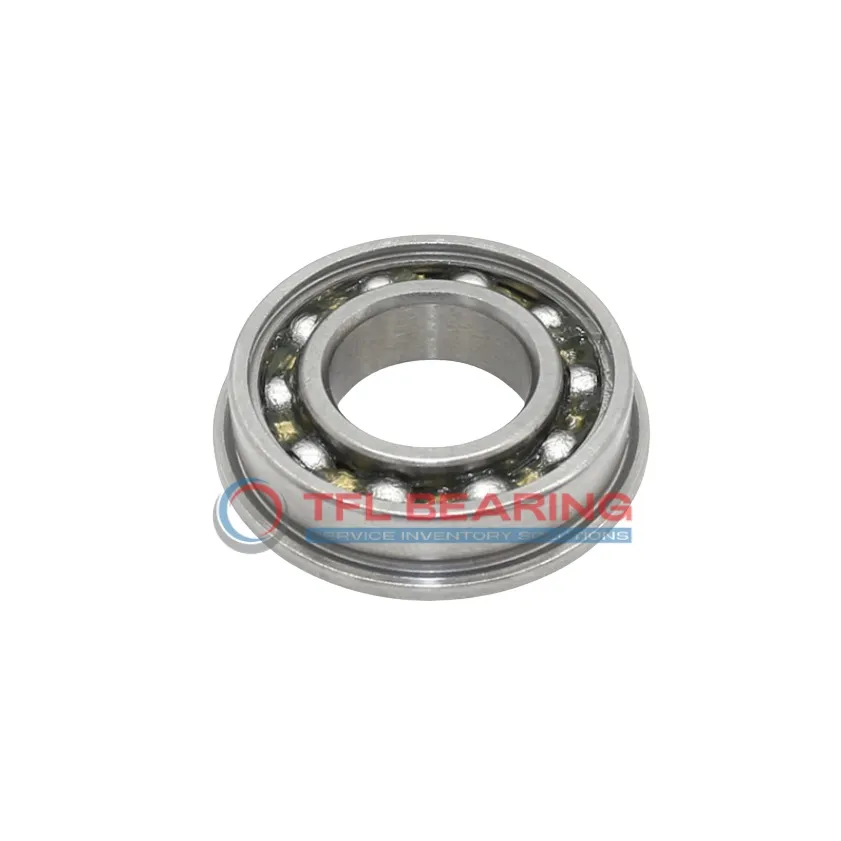

Standard Flanged Ball Bearings SF6807

Standard Flanged Ball Bearings SF6807

The SF6807 is a compact flanged ball bearing with a 35mm bore and 47mm outer diameter, featuring a slim 7mm width. Its stainless steel construction offers good corrosion resistance, while the chrome steel balls ensure smooth rotation.

This bearing handles radial loads up to 957 lbf and can spin at speeds reaching 11,700 RPM. The open design allows for easy lubrication, maintaining performance in temperatures from -30°C to 110°C.

The 50mm flange provides secure mounting, preventing slippage during operation. With ABEC-1 precision and C0 clearance, it balances performance and affordability.

Ideal for small machinery or appliances where space is limited but reliable radial load support is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF6807
  • Brand TFL
  • Bore Dia 35 mm
  • Outer Dia 47 mm
  • Width 7 mm
  • Flange Outer Dia 50 mm
  • Flange Thickness 1.5 mm
  • Ball Qty 19
  • Ball Dia 3.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 957 lbf
  • Static Radial Load 773 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11700 rpm
  • Price（$） 24
Standard Flanged Ball Bearings SF6807 dimension drawing
Download DWG Download PDF

Features

Performance Features of SF6807 Bearing

SF6807 Bearing is constructed with stainless steel rings and chrome steel balls, offering reliable radial load support.
Its dynamic radial load capacity of 957 lbf ensures steady performance in various applications.
The stainless steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 11,700 rpm, it combines durability with high-speed efficiency.

Why Choose SF6807 Bearing for Precision Tasks?

SF6807 Bearing features a single-row design with a standard inner ring, ensuring precise radial load handling.
The open seal type allows for easy lubrication, maintaining smooth operation over time.
Its ABEC-1 tolerance class and C0 radial clearance provide consistent performance in precision applications.
The flange design adds stability, making it suitable for compact installations.

Designed for Durability: SF6807 Bearing

SF6807 Bearing’s stainless steel construction resists corrosion, ideal for harsh environments.
The chrome steel balls enhance wear resistance, ensuring long-term reliability.
With a temperature range of -30° to 110°C, it performs well in varying conditions.
Its lightweight design at 7 mm width offers space-saving benefits without compromising strength.

Steel vs Ceramic Bearings: Strengths of SF6807 Bearing

SF6807 Bearing uses stainless steel rings and chrome steel balls for a balance of strength and cost-efficiency.
Unlike ceramic bearings, it provides excellent radial load support with 957 lbf dynamic capacity.
The stainless steel cage ensures quiet operation, suitable for noise-sensitive applications.
Its flange outer dia of 50 mm adds mounting convenience, enhancing installation flexibility.

Application

Industrial Uses of SF6807 Bearing
SF6807 Bearing is commonly used in conveyor systems, where its compact design and stainless steel construction handle radial loads efficiently. The open seal allows for easy lubrication, extending service life in dusty environments.

In automotive applications, SF6807 Bearing fits well in electric motors and small gearboxes due to its precise ABEC-1 tolerance. The flange design ensures secure mounting, reducing vibration in high-speed scenarios.

For home appliances like washing machines, SF6807 Bearing’s corrosion-resistant materials prevent wear from frequent water exposure. Its low-maintenance design makes it a reliable choice for long-term use.

Where Is SF6807 Bearing Used?
You’ll often find SF6807 Bearing in office printers, where its smooth operation reduces noise during paper handling. The lightweight build doesn’t compromise on durability, even with constant use.

In robotics, SF6807 Bearing supports joint movements in lightweight robotic arms. The stainless steel cage ensures consistent performance without frequent adjustments.
