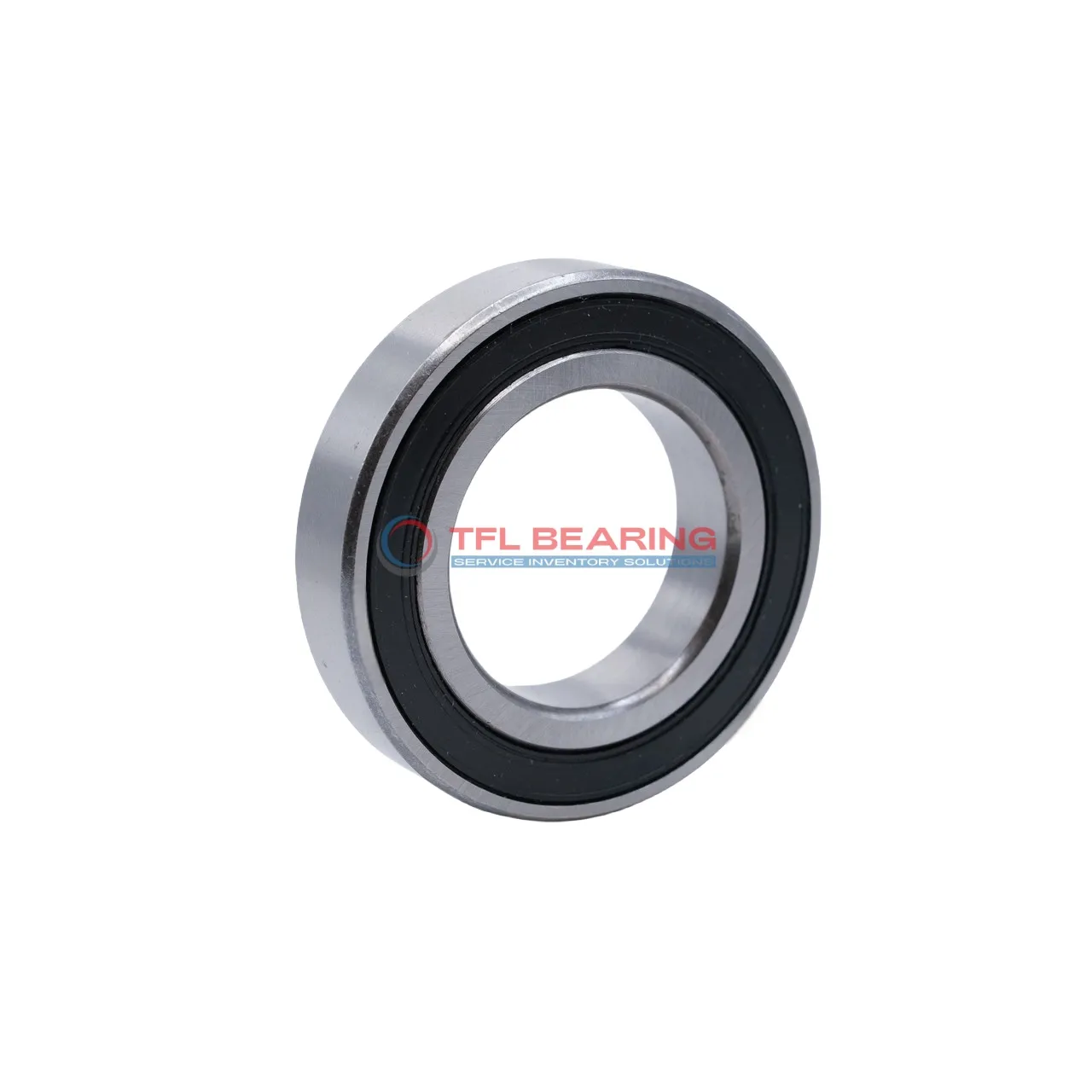

Single Row Deep Groove Ball Bearings 6008-2RS1/C3

Single Row Deep Groove Ball Bearings 6008-2RS1/C3

The 6008-2RS1/C3 is a single-row deep groove ball bearing with a 40mm bore and 68mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 3754 lbf and can handle speeds up to 10,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance ensures smooth operation even under varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. It’s suitable for electric motors, pumps, or small machinery where reliability is key.

Weighing 192g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6008-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3754 lbf
  • Static Radial Load 2585 lbf
  • Max Speed 10000 rpm
  • Weight 192 g
  • price（$） 7.767
Single Row Deep Groove Ball Bearings 6008-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6008-2RS1/C3 Bearing

6008-2RS1/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 3754 lbf.
Its sealed design protects against dust and moisture, ensuring smooth operation in various environments.

The C3 radial clearance provides flexibility in thermal expansion, making it suitable for diverse applications.
With a maximum speed of 10,000 rpm, it delivers reliable performance under high-speed conditions.

6008-2RS1/C3 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its durable construction and sealed design reduce maintenance needs, saving time and costs.

Application

Common Applications of 6008-2RS1/C3 Bearing
6008-2RS1/C3 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6008-2RS1/C3 Bearing fits well in alternators and cooling fans, providing reliable radial load support. Its chrome steel construction offers durability for long-term use in demanding environments.

For home appliances like washing machines, 6008-2RS1/C3 Bearing’s sealed feature protects against dust and moisture. The ABEC 1 tolerance ensures quiet and efficient performance in everyday use.

Automation systems benefit from 6008-2RS1/C3 Bearing’s consistent performance in robotic arms and conveyor belts. The metric sizing makes it easy to integrate into various European and Asian equipment designs.
