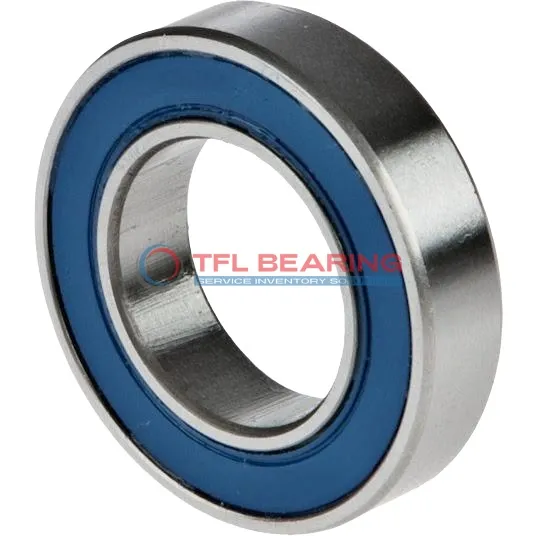

Single Row Deep Groove Ball Bearings 6007-2RS1/C3W64

Single Row Deep Groove Ball Bearings 6007-2RS1/C3W64

The 6007-2RS1/C3W64 is a single-row deep groove ball bearing with a 35mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3574 lbf and can spin at speeds up to 11000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures smooth operation with minimal maintenance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 155g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6007-2RS1/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 2316 lbf
  • Max Speed 11000 rpm
  • Weight 155 g
  • price（$） 13.752
Single Row Deep Groove Ball Bearings 6007-2RS1/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6007-2RS1/C3W64 Bearing

6007-2RS1/C3W64 Bearing is designed with chrome steel rings and balls, offering strong radial load capacity up to 3574 lbf.
Its sealed construction and solid oil lubrication ensure long-lasting performance with minimal maintenance.
The bearing operates smoothly within a temperature range of -30°C to 120°C, making it versatile for various environments.
With a maximum speed of 11,000 rpm, it balances efficiency and durability in demanding applications.

Application

Common Applications of 6007-2RS1/C3W64 Bearing
6007-2RS1/C3W64 Bearing is widely used in industrial machinery, particularly in electric motors and pumps, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in dusty environments.

In automotive applications, 6007-2RS1/C3W64 Bearing is often found in alternators and water pumps, thanks to its reliable radial load handling. The C3 clearance makes it suitable for applications with slight misalignment or thermal expansion.

For household appliances like washing machines, 6007-2RS1/C3W64 Bearing provides quiet and efficient performance. Its chrome steel construction offers durability, while the sealed design reduces maintenance needs.

In automation systems, 6007-2RS1/C3W64 Bearing supports conveyor rollers and small robotic arms. The solid oil lubrication ensures consistent performance over long periods without frequent re-greasing.
