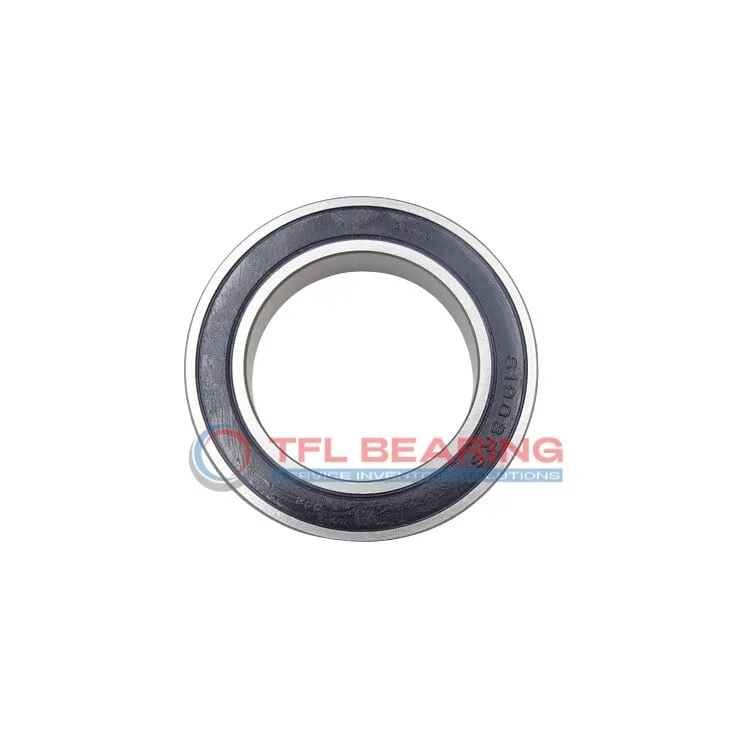

Stainless Steel Deep Groove Ball Bearings W 6206-2RS1/VP311

Stainless Steel Deep Groove Ball Bearings W 6206-2RS1/VP311

The W 6206-2RS1/VP311 is a stainless steel deep groove ball bearing measuring 30mm by 62mm by 16mm, designed for radial loads. It handles dynamic loads up to 3709 lbf and operates smoothly at speeds up to 7000 RPM.

Its sealed construction keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless steel build resists corrosion, ideal for wet or harsh environments.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for food processing equipment or marine applications where rust resistance is key.

Weighing just 0.2kg, it’s a lightweight yet sturdy choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6206-2RS1/VP311
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3709 lbf
  • Static Radial Load 2518 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 0.2 kg
  • Price（$） 38.3
Stainless Steel Deep Groove Ball Bearings W 6206-2RS1/VP311 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6206-2RS1/VP311 Bearing for Precision Tasks?

W 6206-2RS1/VP311 Bearing is crafted with stainless steel rings and balls, ensuring corrosion resistance and durability.
Its sealed design keeps contaminants out, making it ideal for environments with dust or moisture.

The bearing handles dynamic radial loads up to 3709 lbf, providing reliable performance in various applications.
With a maximum speed of 7,000 rpm, it balances efficiency and longevity.

W 6206-2RS1/VP311 Bearing’s grease lubrication reduces maintenance needs, saving time and costs.
Its precision engineering ensures smooth operation, making it suitable for demanding tasks.

Application

Industrial Uses of W 6206-2RS1/VP311 Bearing
W 6206-2RS1/VP311 Bearing is commonly used in industrial settings, such as conveyor systems and pumps, where its sealed design helps keep contaminants out. The stainless steel construction ensures it can handle wet or corrosive environments without compromising performance.

In automotive applications, W 6206-2RS1/VP311 Bearing works well in electric motors and gearboxes, providing smooth radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, W 6206-2RS1/VP311 Bearing offers quiet and reliable operation. The grease lubrication ensures long-lasting performance with minimal maintenance.

In medical devices, W 6206-2RS1/VP311 Bearing’s stainless steel build is ideal for equipment requiring hygiene and durability. Its sealed design also helps maintain cleanliness in sensitive environments.
