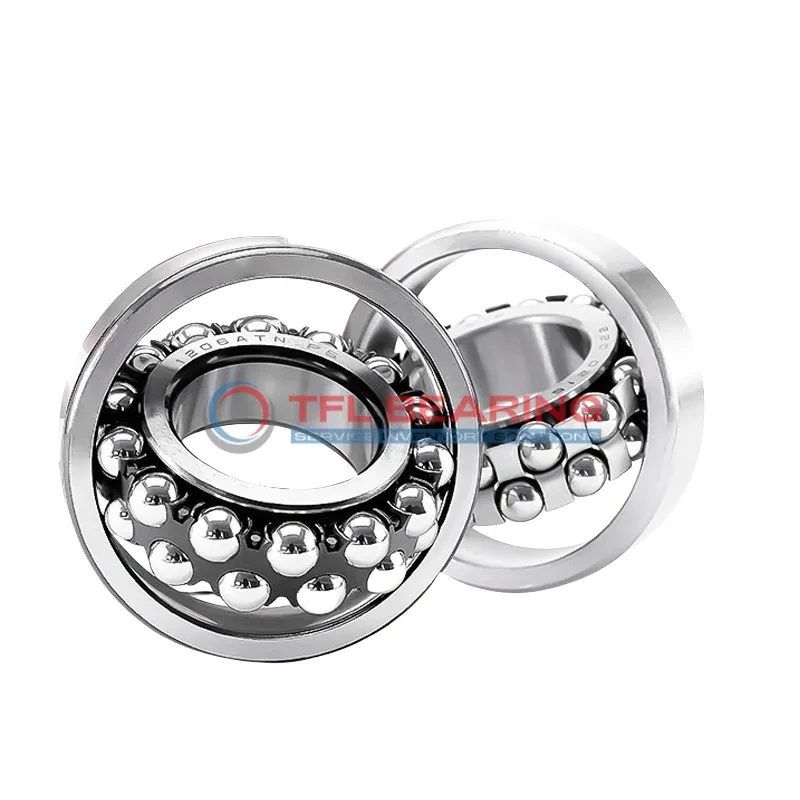

Self Aligning Ball Bearings 1220/W64

Brand: TFL Bearing Interchangeable: SKF 1220/W64 100 mm × 180 mm × 34 mm Metric Open
Part number: 1220/W64
Self Aligning Ball Bearings 1220/W64
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.025mm to 0
Width34 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring127 mm
Internal Diameter On Outer Ring155.8 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load15,502 lbf
Static Radial Load6,750 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight3.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1220/W64 is a self-aligning ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 15502 lbf and runs smoothly at speeds up to 4800 RPM.

Its double-row design helps it adjust to slight misalignments, while the open seal allows for easy lubrication. The stainless steel cage adds durability, making it suitable for long-term use.

This bearing works well in temperatures from -30°C to 110°C and comes pre-lubricated for immediate installation. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 3.7kg, it’s a solid choice for heavy-duty applications like conveyor systems or industrial fans. Compliant with RoHS and REACH standards, it’s both safe and dependable.

Features

How Does 1220/W64 Bearing Reduce Friction?

1220/W64 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its precision-engineered construction minimises friction, enhancing efficiency in various applications.

The stainless steel cage maintains proper ball alignment, reducing wear and extending operational life.
With a dynamic radial load capacity of 15502 lbf, it handles demanding conditions reliably.

1220/W64 Bearing operates effectively within a temperature range of -30° to 110°C, suitable for diverse environments.
Its open design allows easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1220/W64 Bearing
1220/W64 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design helps manage radial loads efficiently. The open seal type allows for easy lubrication, extending service life in dusty environments.

What Makes 1220/W64 Bearing a Preferred Choice?
In automotive applications, 1220/W64 Bearing fits well in wheel hubs and transmission systems due to its high dynamic radial load capacity. The chrome steel construction ensures durability even under constant stress.

Built for Heavy-Duty Use: 1220/W64 Bearing
For automation equipment, 1220/W64 Bearing’s self-aligning feature compensates for minor misalignments in robotic arms. Its stainless steel cage adds corrosion resistance, ideal for humid or washdown settings.

Medical vs Industrial: Where 1220/W64 Bearing Excels
While 1220/W64 Bearing handles radial loads in industrial presses reliably, its precision also suits medical imaging devices requiring smooth rotation. The metric sizing ensures compatibility with global equipment standards.
