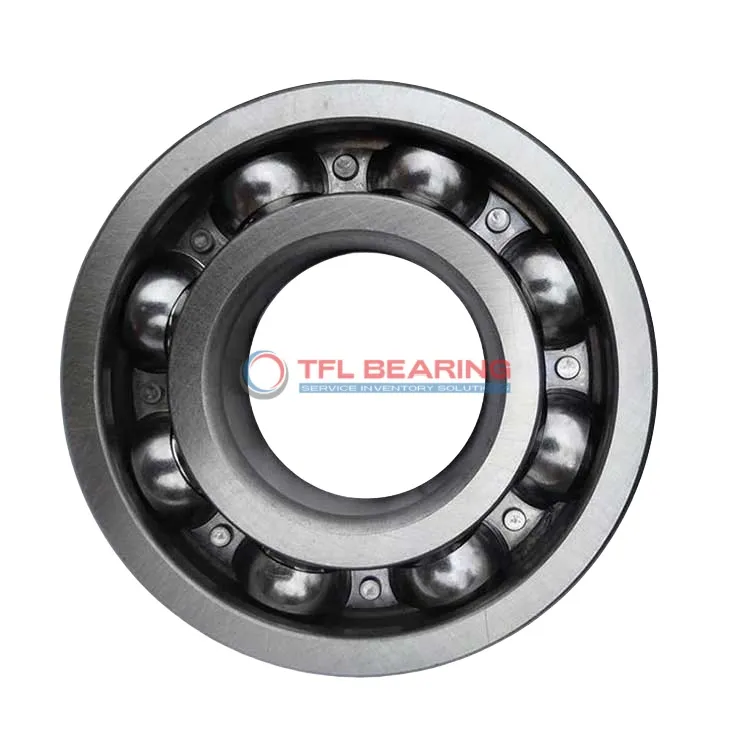

Single Row Deep Groove Ball Bearings 6006

Single Row Deep Groove Ball Bearings 6006

The 6006 is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2967 lbf and operates smoothly at speeds up to 13,000 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 116g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g
  • price（$） 3.645
Single Row Deep Groove Ball Bearings 6006 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6006 Bearing

6006 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 2967 lbf.

Its stainless steel cage ensures smooth operation, even at high speeds of 13,000 rpm.

The open design allows for easy lubrication, maintaining performance in various conditions.

With a temperature range of -30° to 110°C, it adapts well to different working environments.

Application

Common Applications of 6006 Bearing
6006 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 6006 Bearing fits well in components like alternators and water pumps, providing reliable performance under constant motion. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6006 Bearing can be found in washing machines and fans, where its chrome steel construction offers durability. The stainless steel cage adds resistance to wear, making it suitable for everyday use.

How Does 6006 Bearing Support High-Speed Operations?
6006 Bearing handles high-speed rotations efficiently, making it ideal for applications like power tools and small machinery. The ABEC-1 tolerance ensures consistent performance without excessive friction.

Its dynamic radial load capacity also makes it a reliable choice for conveyor systems, where smooth movement is essential. The lightweight design further enhances its suitability for portable equipment.

Built for Versatility: 6006 Bearing
6006 Bearing works well in both light and medium-duty applications, from office printers to agricultural equipment. The wide temperature range allows it to perform reliably in various environments.

The chrome steel rings and balls provide a good balance of strength and affordability. This makes 6006 Bearing a practical option for budget-conscious projects without compromising quality.
